Cressi-sub ELLIPSE - Disassembly Procedures; Low-Pressure Hose Disassembly

Regulators repair and maintenance
January 2008 Rev. ELL. OCTO /A Ed. B / 09 10
2nd stage ELLIPSE Black

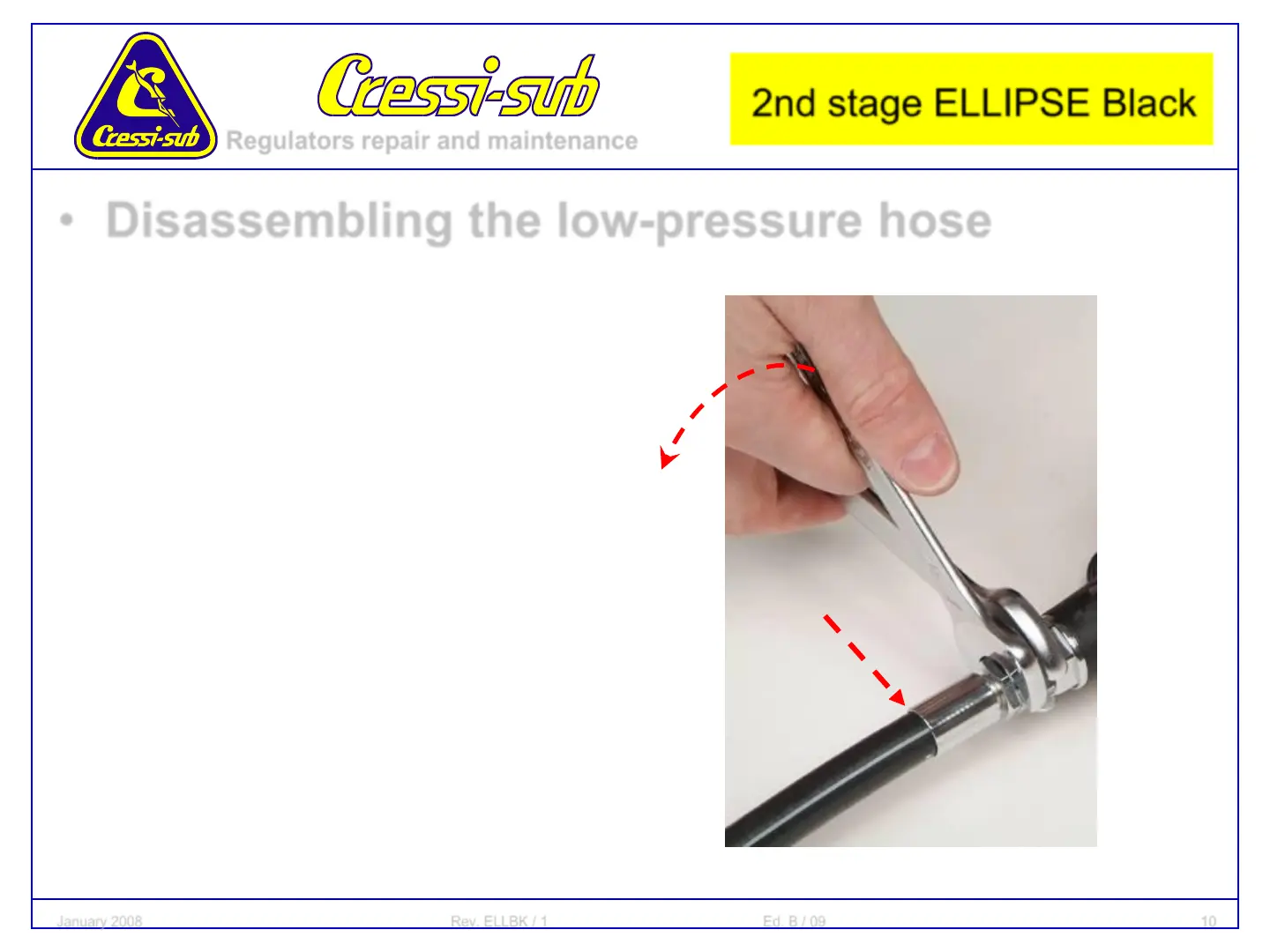

• Using a 19 mm
(0,75 in.) and a 17
mm (0,67 in.)
spanner, remove the
low-pressure hose,
holding the set nut
with the former and
unscrewing the
shaft with the latter.
• The OR inside the
hose must be
replaced yearly.
• Disassembling the low-pressure hose
