Cresta DTX500 - Installation and Mounting; Installing the Batteries; Outdoor sensor connection

O utdoor sensor:
• F requency: 433 MHz
•
Transmission range: 100 meters in open area.
** Actual distance may be varied depending upon the enviroment, it will be shortened if with
interference ,such as concrete wall etc.
•
Batter ies : 2 x AA, LR 6 1.5V
Installation
Installation
Installation
Installation
•
•
•
• Inst
Inst
Inst
Inst alling
alling
alling
alling the
the
the
the Batteries
Batteries
Batteries
Batteries
•
Open the main unit battery cover located at the back of the unit and insert 3 XAA batteries
into the battery compartment and close the battery cover.

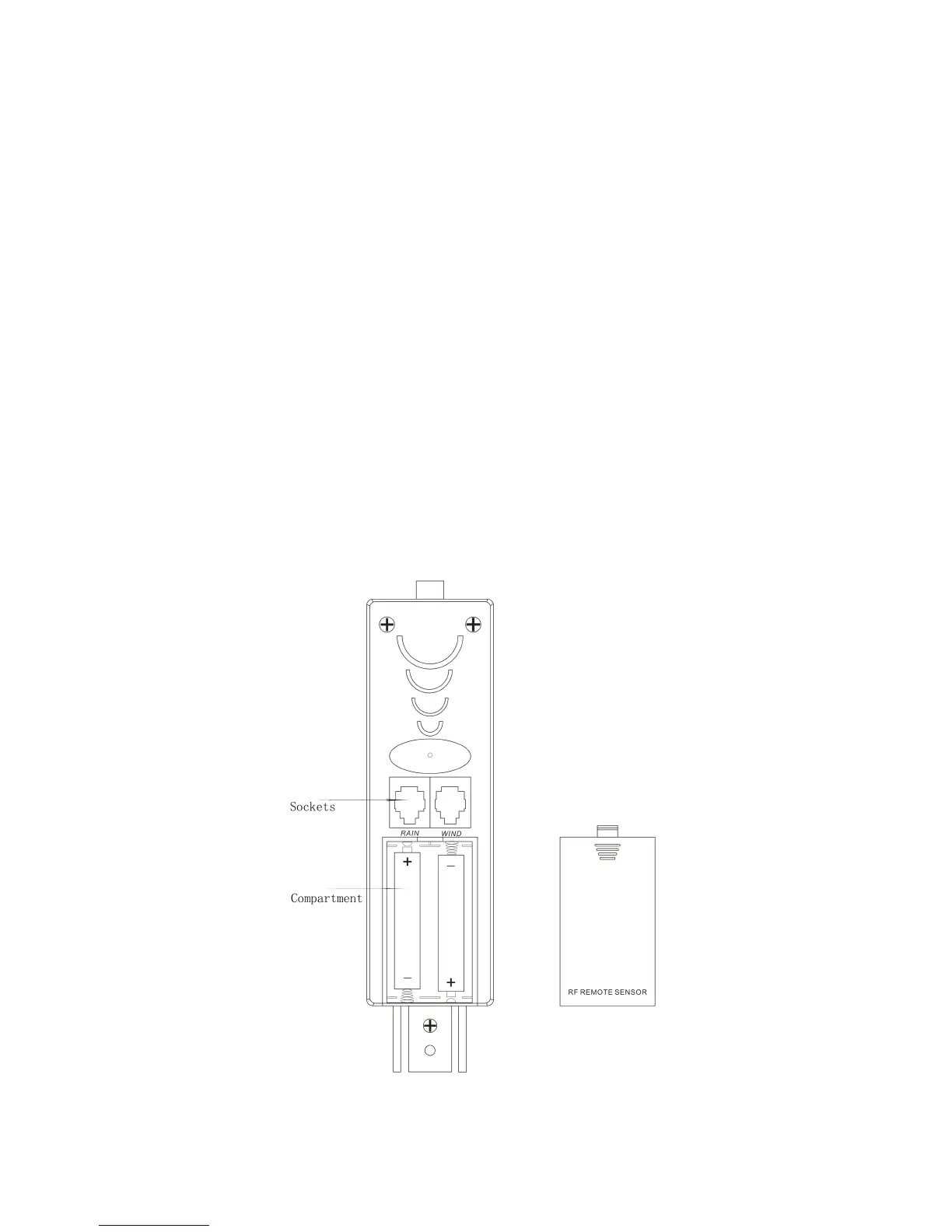

• Pull away the shower proof casing of the thermo-h y rgro sensor to reveal the 2 sockets.( for
the wind sensor and rain sensor )
• C onnect the attached cables 1.cable from wind speed sensor insert into the socket of wind
direction sensor 2. cable from wind direction and cable from rain sensors to the
corresponding sockets of the thermo-hygro sensor by clicking them into place. Make sure
that rain and wind cables are connected to the correct sockets.
