How the Program Works
A basic CNXMIDI SIMPL program is shown in block diagram form below. For this
example, the CNXMIDI occupies slot #1 of a CNMSX-PRO. This example plays
three notes on a MIDI keyboard. A note is turned on for 0.05s and then there is
silence for 0.05s before the next note is played. The sequence is triggered when a
certain note is received from the keyboard, and stopped at the end of the sequence.

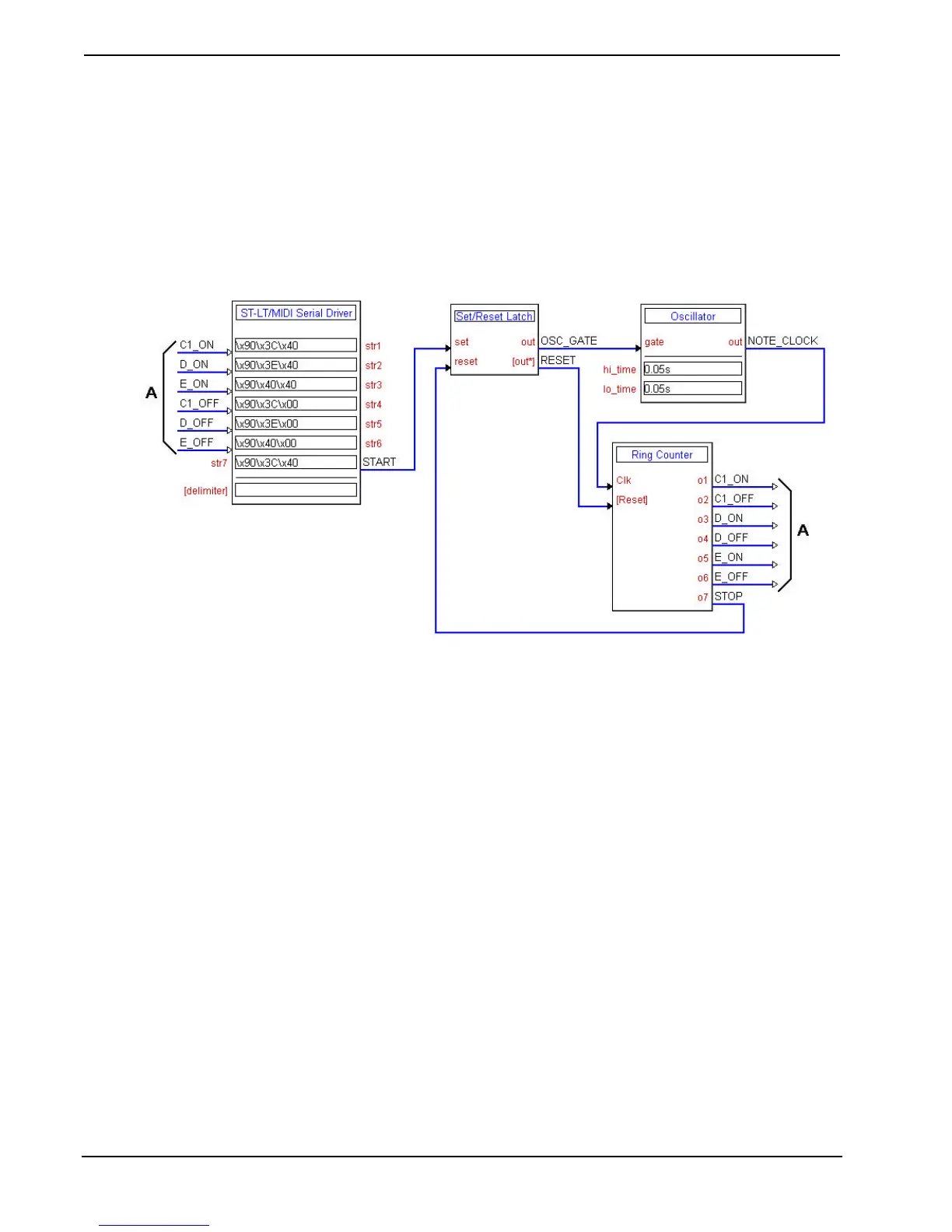

Block Diagram of CNXMIDI
