HYDRAULIC INSTALLATION
IMPORTANT! .For the correct connection of the components, it is essential to read the instruction manual

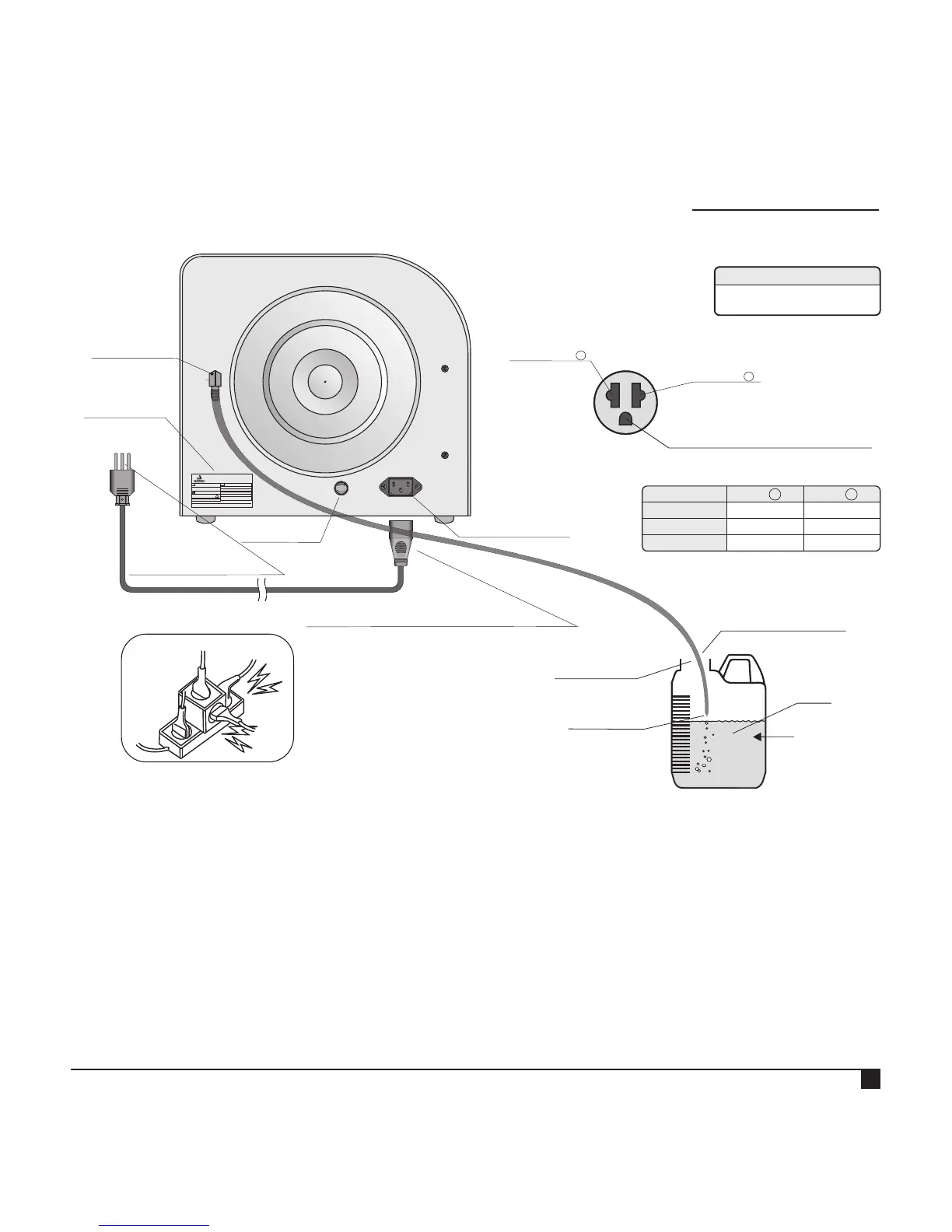

Purchase a heat resistant rubber hose (5/16", 300 psi as sample provided) and connect it to the external steam exit
(Fig. 1) located in the back part of the autoclave, put the clamp also provided on (Fig. 10, page 10) and fasten it with
a screwdriver The other end must be connected to the plumbing system which. must tolerate the temperature of at
least 100ºC (212ºF) or put into an open container located about 40 cm below the level of the autoclave with water
inside for steam discharge (Fig. 1A), in this case, the hose must be above the water level with a “V” cut on its end. It
also must be inspected yearly for obstructions and general condition.
Note: To replace the hose of the external steam exit, make sure the autoclave is cold and unplugged from the
electrical outlet, loosen the clamp and replace the old hose by the new one, put the clamp back on and fasten it.
WARNING! Never use a plastic hose, the heat will melt it causing an obstruction of the external steam exit and
possible damages to the equipment.
8
Fig. 2
Fig. 1A
Fig. 3
A T T E N T I O N !
GROUNDING IS
ESSENTIAL
Table 2
X
Fig. 1
Bipolar plug and wall socket with grounding
(three pins or 2P+T) 20 A.
GROUNDING
(DO NOT CONNECT GROUNDING ON NEUTRAL)
PHASE PIN
2
NEUTRAL PIN
1
NEUTRAL PIN
127 V
CONNECTION
220 V
220 V
PHASE (127 V)NEUTRAL
NEUTRAL PHASE (220 V)
PHASE (127 V)PHASE (127 V)
PIN
2
PIN
1
EXTERNAL STEAM
EXIT
POWER CONNECTOR
FUSE HOLDER
IDENTIFICATION
LABEL
MODELO
LOT
SN
POTÊNCIA
PRODUTO: AUTOCLAVE CRISTÓFOLI PARA ESTERILIZAÇÃO A VAPOR.
MODELO
AUTOCLAVE VITALE
FREQUÊNCIA - 50/60 Hz
REGISTRO ANVISA - 10363350005
RESPONSÁVEL TÉCNICO
EDER WILLIAM COSTA CAMACHO - CREA/PR – 87826/D
CRISTÓFOLI EQUIPAMENTOS DE BIOSSEGURANÇA LTDA
ROD BR 158 Nº 127 - CAMPO MOURÃO - PR
BRASIL - CEP 87309-650 - FONE: 55 44 3518-3432
CNPJ 01.177.248/0001-95 - INSCR. EST. 90.104.860-65
INDÚSTRIA BRASILEIRA
INSTRUÇÕES DE USO, PRECAUÇÕES, CONSERVAÇÃO E ARMAZENAMENTO:
CONSULTE O MANUAL DE INSTRUÇÕES
PRESSÃO MÁXIMA -
CAPACIDADE -
CONFORMIDADE - NORMA NBR 11817
NEVER CUT OR REMOVE
THE CENTRAL PIN OFF
WATER
“V” CUT
DO NOT USE LID
KEEP THE HOSE END
ABOVE THE WATER LEVEL
5 litros
1.3 gallons
POWER CABLE
(non-detachable on model Vitale 21, 127V)
