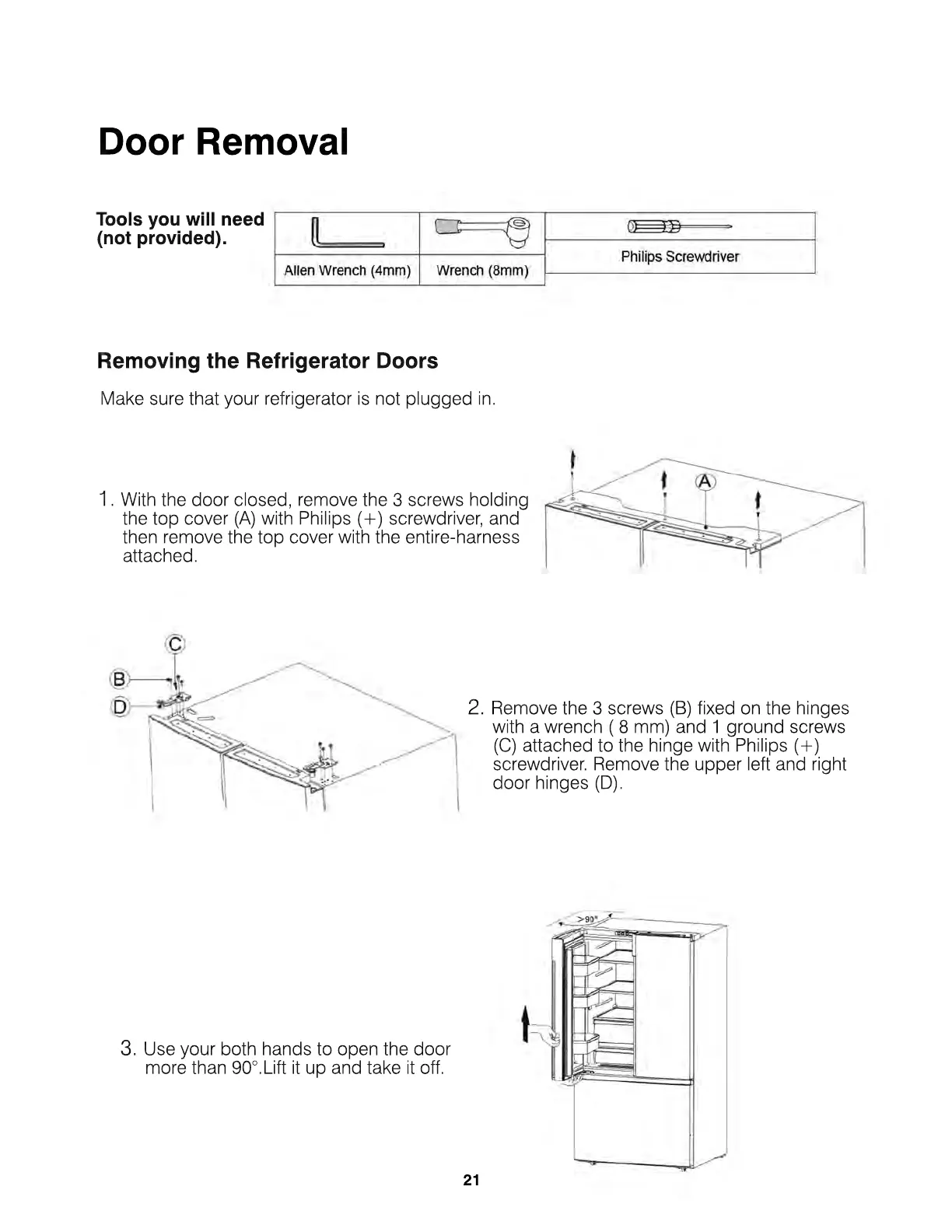

Door Removal
Tools you will need
(not provided).
Removing the Refrigerator Doors
Make sure that your refrigerator is not plugged in.
1.
With the door closed, remove the 3 screws holding
the top cover (A) with Philips (+) screwdriver, and
then remove the top cover with the entire-harness
attached.
2.
Remove the 3 screws (B) fixed on the hinges
with a wrench ( 8 mm) and 1 ground screws
(C) attached to the hinge with Philips (+)
screwdriver. Remove the upper left and right
door hinges (D).
3.
Use your both hands to open the door
more than 90°.Lift it up and take it off.
21
