Criterion 463-1202 - Removing the Freezer Door

Door Removal (con’t)

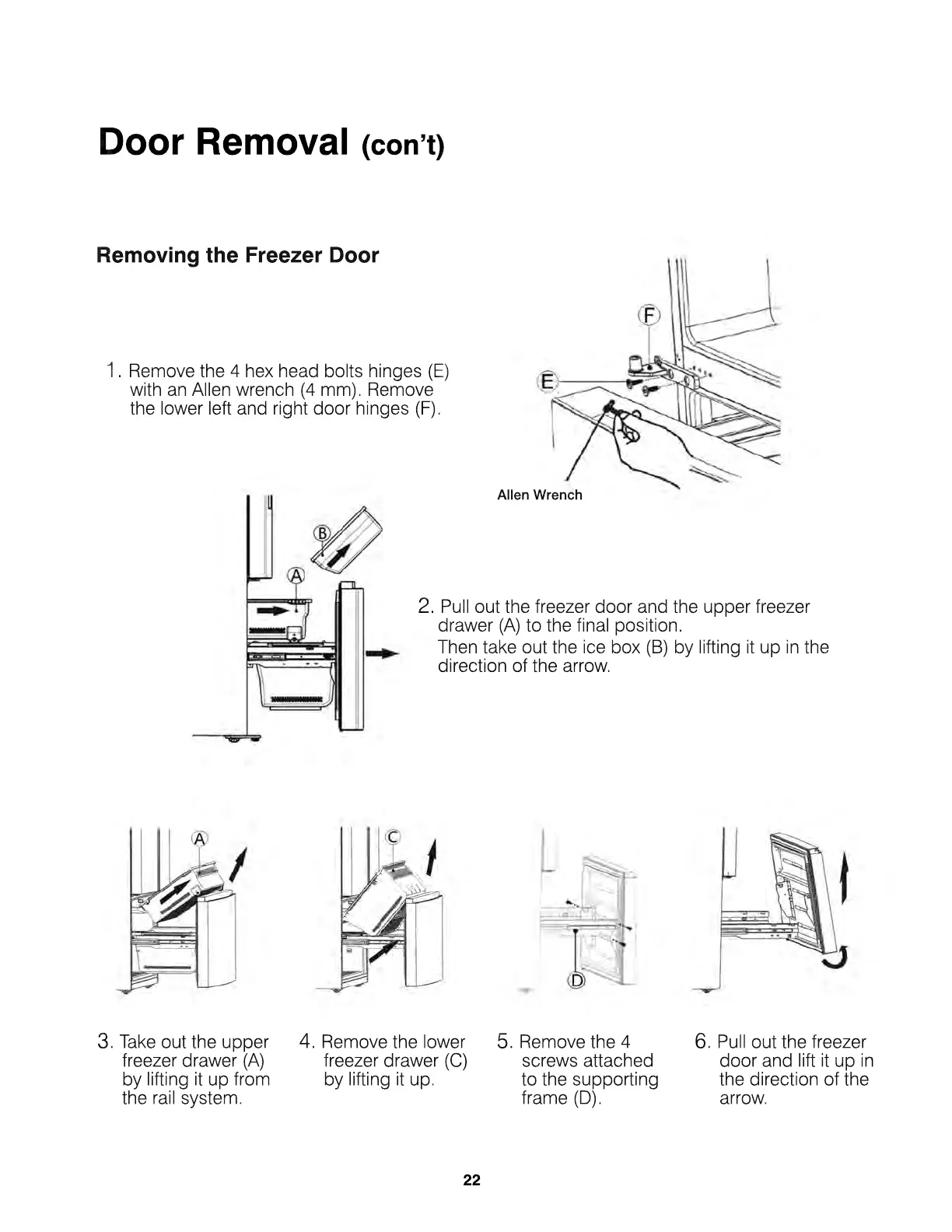

Removing the Freezer Door
2. Pull out the freezer door and the upper freezer
drawer (A) to the final position.
Then take out the ice box (B) by lifting it up in the
direction of the arrow.
3. Take out the upper
freezer drawer (A)
by lifting it up from
the rail system.
4. Remove the lower
freezer drawer (C)
by lifting it up.
5. Remove the 4
screws attached
to the supporting
frame (D).
6. Pull out the freezer
door and lift it up in
the direction of the
arrow.
22
1. Remove the 4 hex head bolts hinges (E)
with an Allen wrench (4 mm). Remove
the lower left and right door hinges (F).
Allen Wrench
