CRL JACKSON 2086 - Parts Identification

CRL JACKSON PANIC EXIT DEVICES - 2086 CONCEALED VERTICAL ROD
crlaurence.com | usalum.com
03

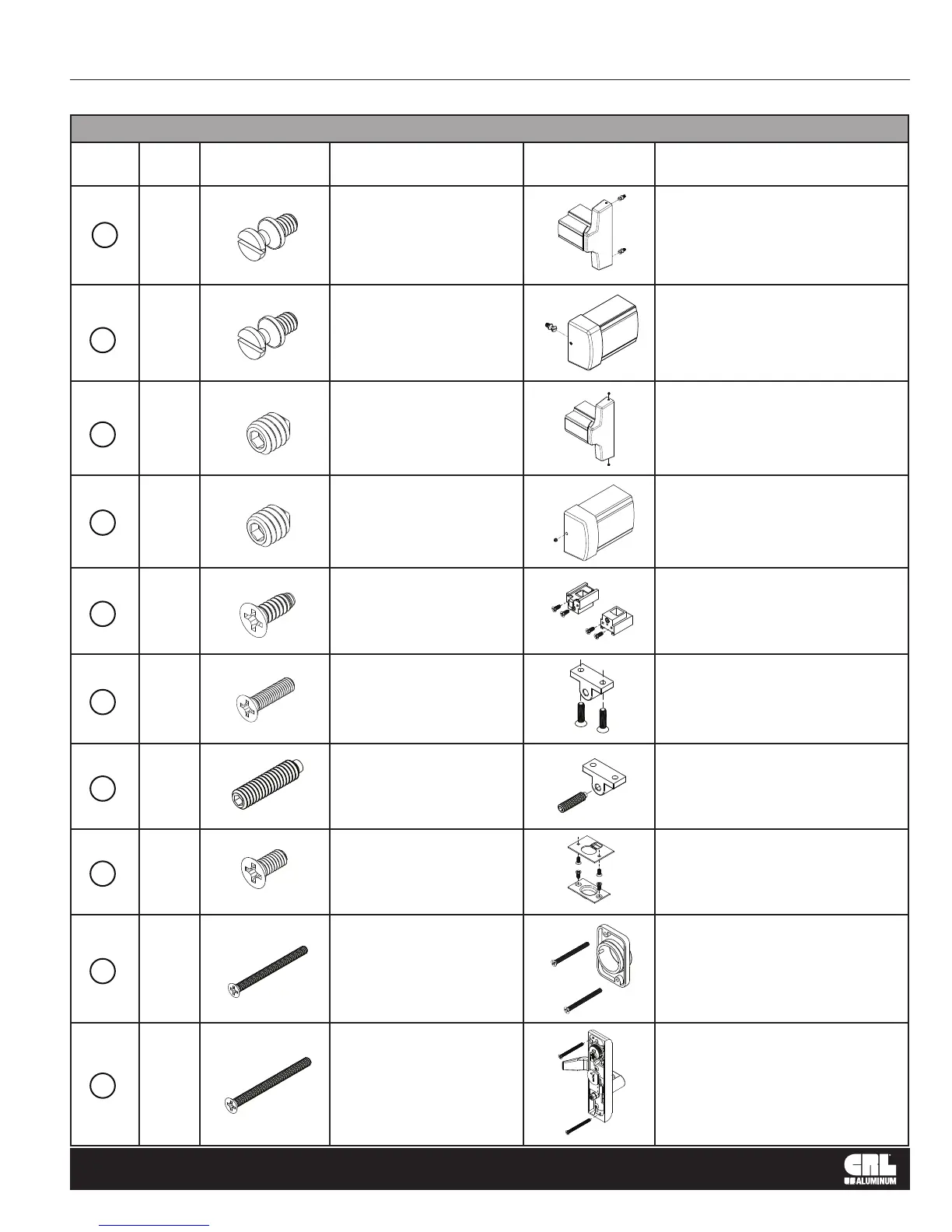

PARTS IDENTIFICATION
FASTENERS PROVIDED USED WITH
CALL
OUT
QTY. FASTENER
FASTENER
DESCRIPTION
PART
PART NUMBER
AND DESCRIPTION
A
2
1/4"-20 x 1/4"
Shoulder Stud
Screws
302617 and 302619
Active Head Assembly
1
1/4"-20 x 1/4"
Shoulder Stud Screw
301266 Base End
Cap Package
2
1/4"-20 x 5/16"
Set Screw
302617 and 302619
Active Head Assembly
1
1/4"-20 x 5/16"
Set Screw
301266
Base End
Cap Package
4
#10 x 1/2" FH
Self Tapping Screw
30934 Top Bolt Guide
30320 Bottom Bolt Guide
Assembly
2
#10-32 x 3/4" FH
Machine Screw
30824
Trip Bracket Package
1
1/4"-20 x 1"
Adjustment SScrew
30824
Trip Bracket Package
4
#10-32 x 3/8" FH
Machine Screw
301084 Top and Bottom
Strike Package
2
#8-32 x 2" FH
Machine Screw
30821J
Optional Mortise Cylinder
Mounting Pad
2
#10-32 x 2-1/8"
FHMS
8500LV01 and 8500LV02
Optional Exterior Trim
with Lever Assembly
A
B
B
C
D
E
F
G
H
