CRL JACKSON 2086 - Door Preparation

CRL JACKSON PANIC EXIT DEVICES - 2086 CONCEALED VERTICAL ROD
crlaurence.com | usalum.com
NOT TO SCALE
05
DOOR PREPARATION

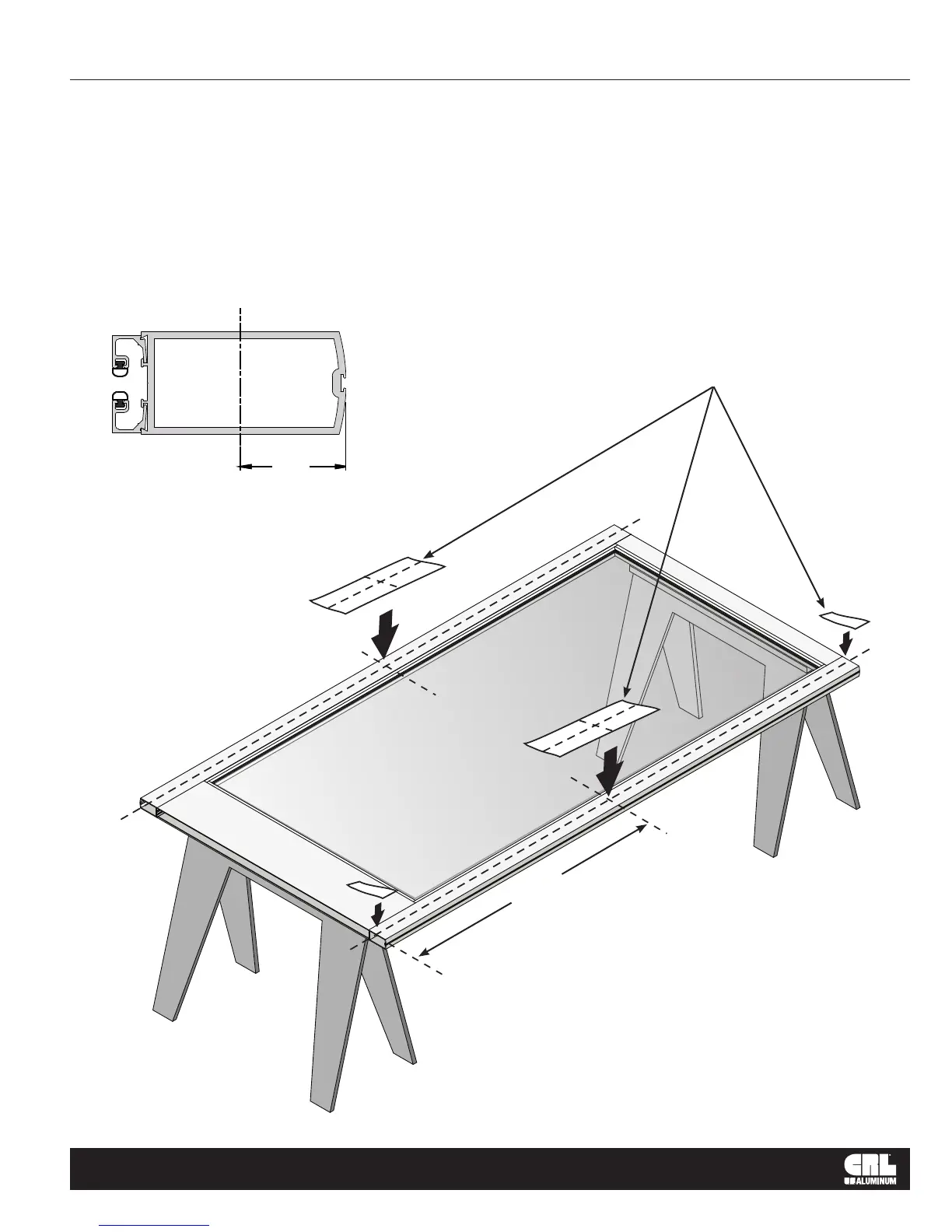

1. Place the door horizontally on the stands interior side up.
2. Mark the stile centerlines 1-1/8" (28.6) from the inside edge. (Fig. 1)
3. Mark the corresponding layouts on to the stile using the vertical centerlines at the specied height. (Fig. 2)
REMOVE DOOR AND PREPARE PER TEMPLATE
1-1/8"
(28�6)
Y
FIG. 1
TEMPLATES
FIG. 2
BOTTOM RAIL
TOP RAIL
ACTIVE STILE
INTERIOR VIEW
SEE TEMPLATE FOR
HEIGHT DIMENSIONS
Y
Y
Y
Y
X
X
X
Y
X
Y
HINGE STILE
