CRL JACKSON PANIC EXIT DEVICES - 2086 CONCEALED VERTICAL ROD
crlaurence.com | usalum.com
NOT TO SCALE
06

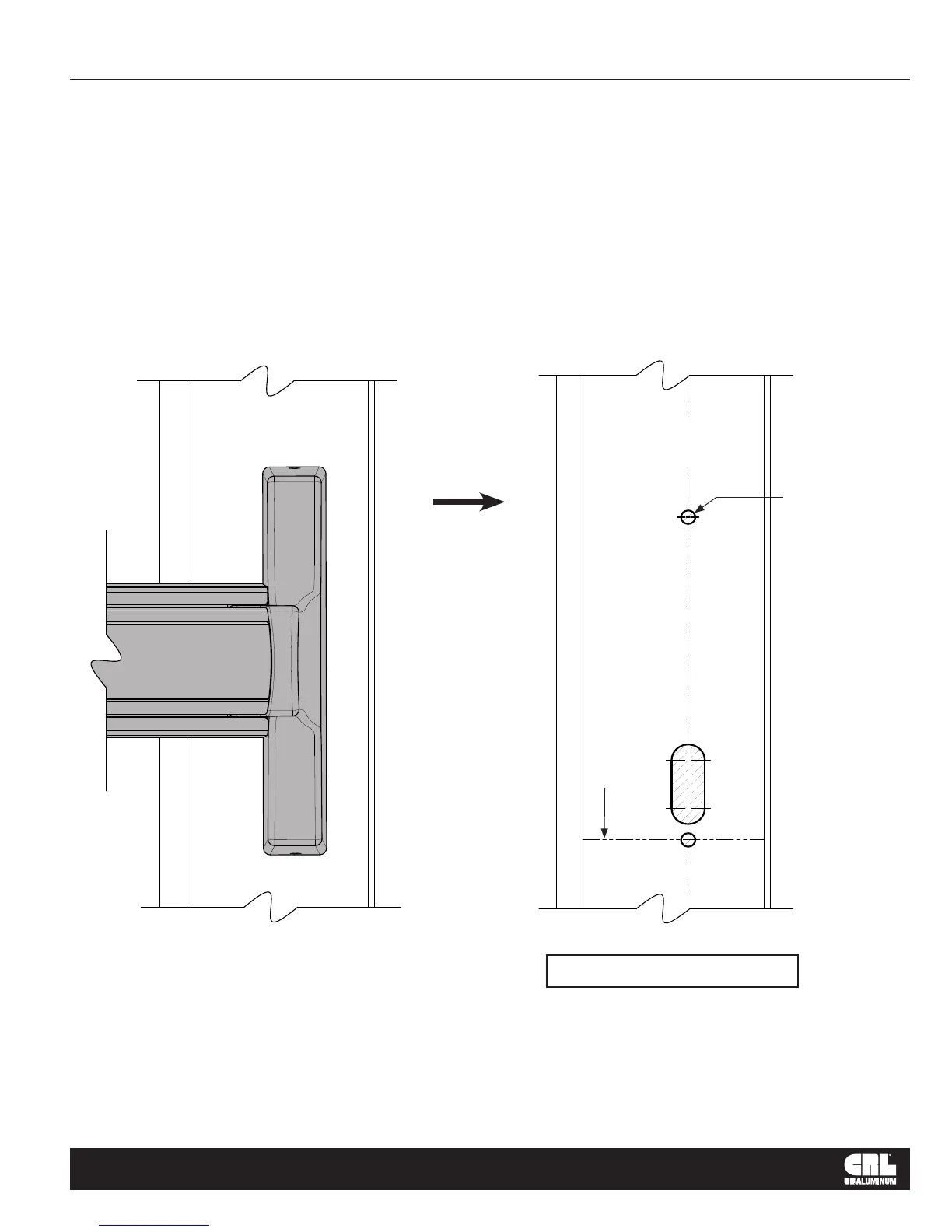

DOOR PREPARATION – LAYOUT SELECTION
2086 EXIT DEVICE INSTALLATION - ACTIVE STILE
Edge of Door
Edge of Door
Use Template from Box
35" (889) to Bottom of Door From This Line
FIG. 3
Drill and Tap
for a 1/4"-20
Machine Screw
(2)-Places
Glass Stop
Glass Stop
INTERIOR VIEW
ACTIVE STILE
2086 Active Side
Mounting Inside Face
10-952
