CRL JACKSON PANIC EXIT DEVICES - 2086 CONCEALED VERTICAL ROD
crlaurence.com | usalum.com
NOT TO SCALE
07

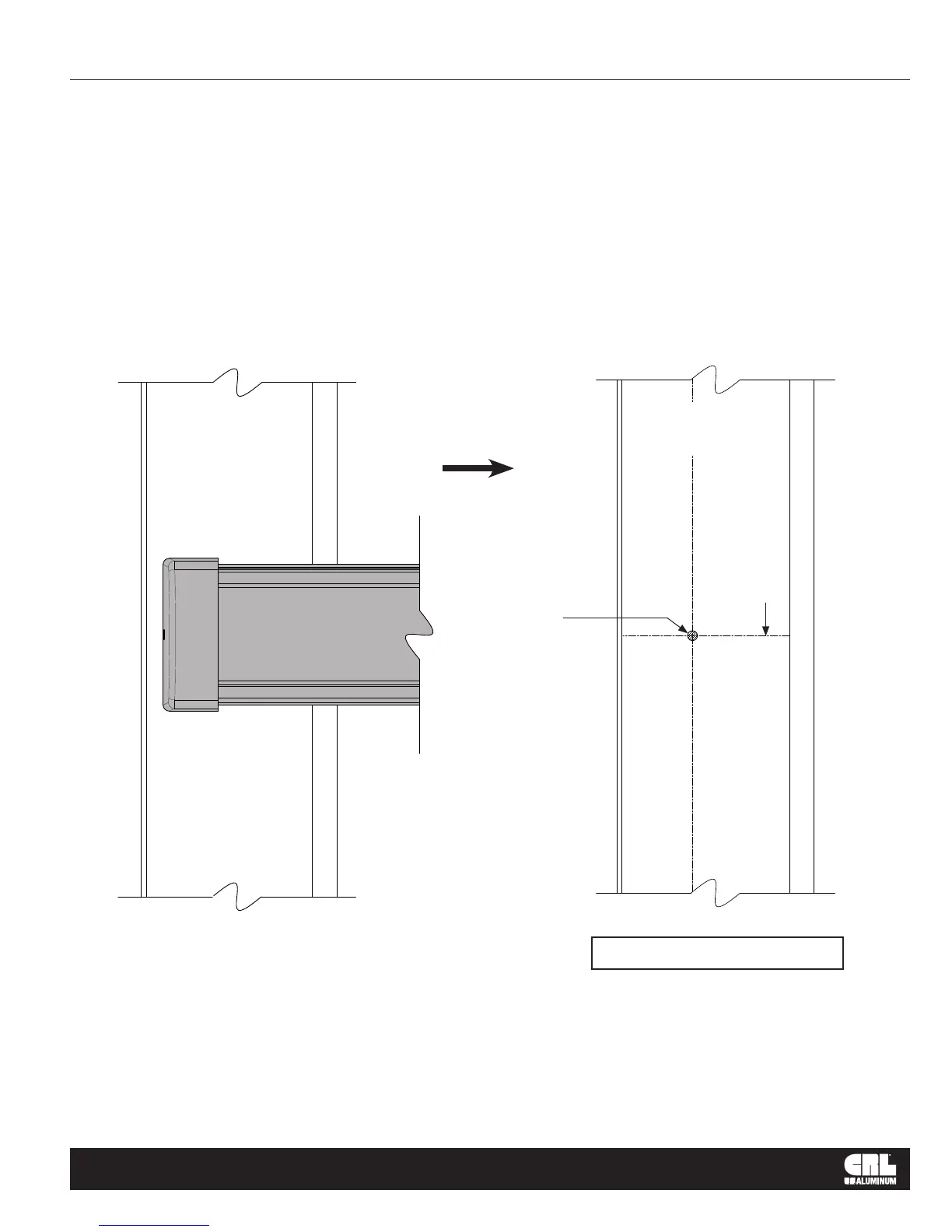

FIG. 4
DOOR PREPARATION – LAYOUT SELECTION
2086 EXIT DEVICE INSTALLATION - INACTIVE STILE
Edge of Door
Edge of Door
Drill and Tap
for a 1/4"-20
Machine Screw
38-5/32" (969) to Bottom of Door From This Line
Glass Stop
Glass Stop
Use Template from Box
INTERIOR VIEW
INACTIVE STILE
2086 Inactive Side
Mounting Inside Face
10-952
