CRL JACKSON 2086 - Page 8

CRL JACKSON PANIC EXIT DEVICES - 2086 CONCEALED VERTICAL ROD
crlaurence.com | usalum.com
NOT TO SCALE
08

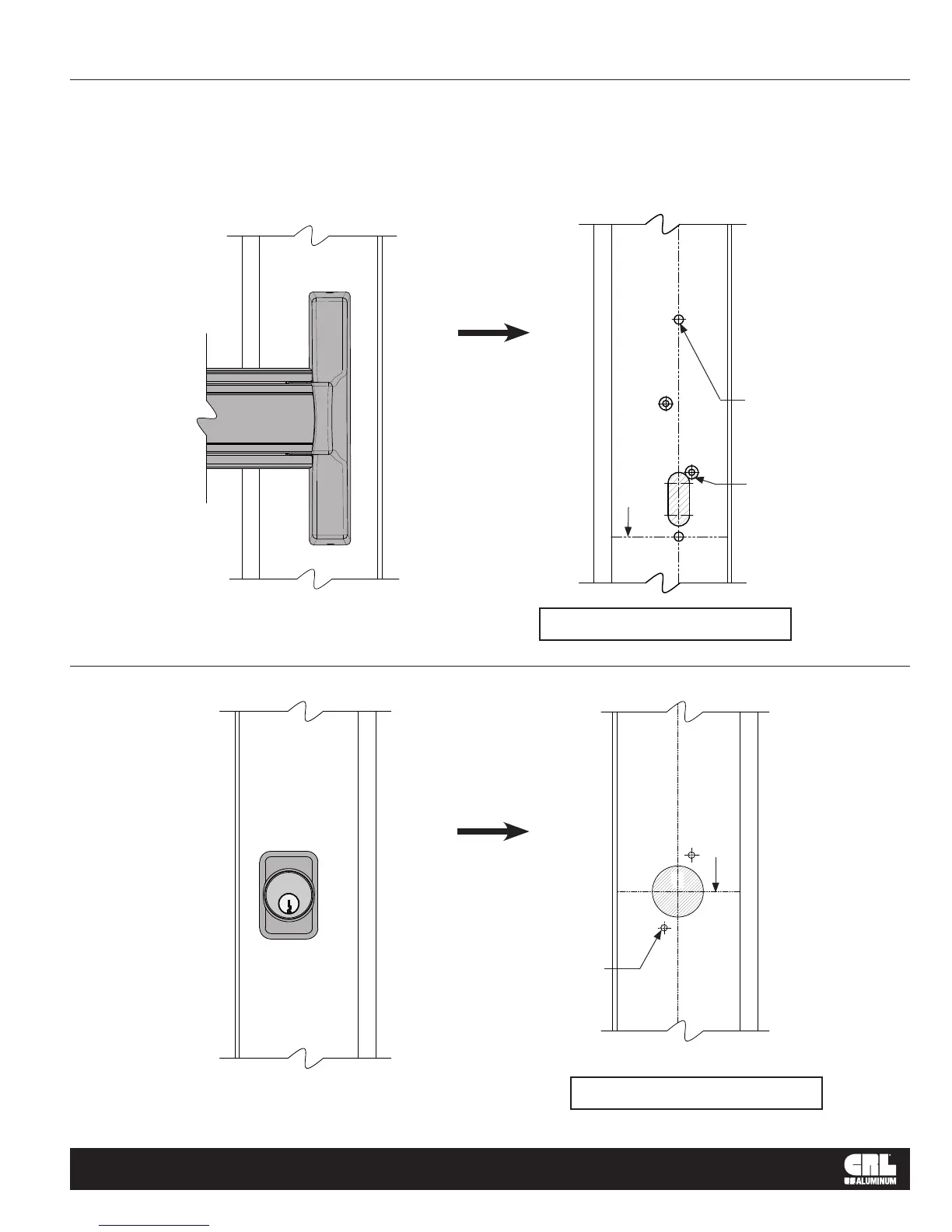

FIG. 6
DOOR PREPARATION – LAYOUT SELECTION
Edge of Door
Edge of Door
Drill and Counter
Sink for a 8-32
FHMS (2) Places
Edge of Door
FIG. 5
2086 EXIT DEVICE INSTALLATION WITH LOCK CYLINDER AND MOUNTING PAD
35" (889) to Bottom of Door From This Line
Drill and Tap for
a 8-32 FHMS
(2) Places
Edge of Door
CUT
OUT
Drill and Tap
for a 1/4"-20
Machine Screw
(2) Places
Glass Stop
Glass Stop
Glass Stop
Glass Stop
EXTERIOR VIEW
ACTIVE STILE
Use Template from Box
Use Template from Box
INTERIOR VIEW
ACTIVE STILE
37-7/8" (962) to Bottom of Door From This Line
