CRL JACKSON PANIC EXIT DEVICES - 2086 CONCEALED VERTICAL ROD
crlaurence.com | usalum.com
NOT TO SCALE
09

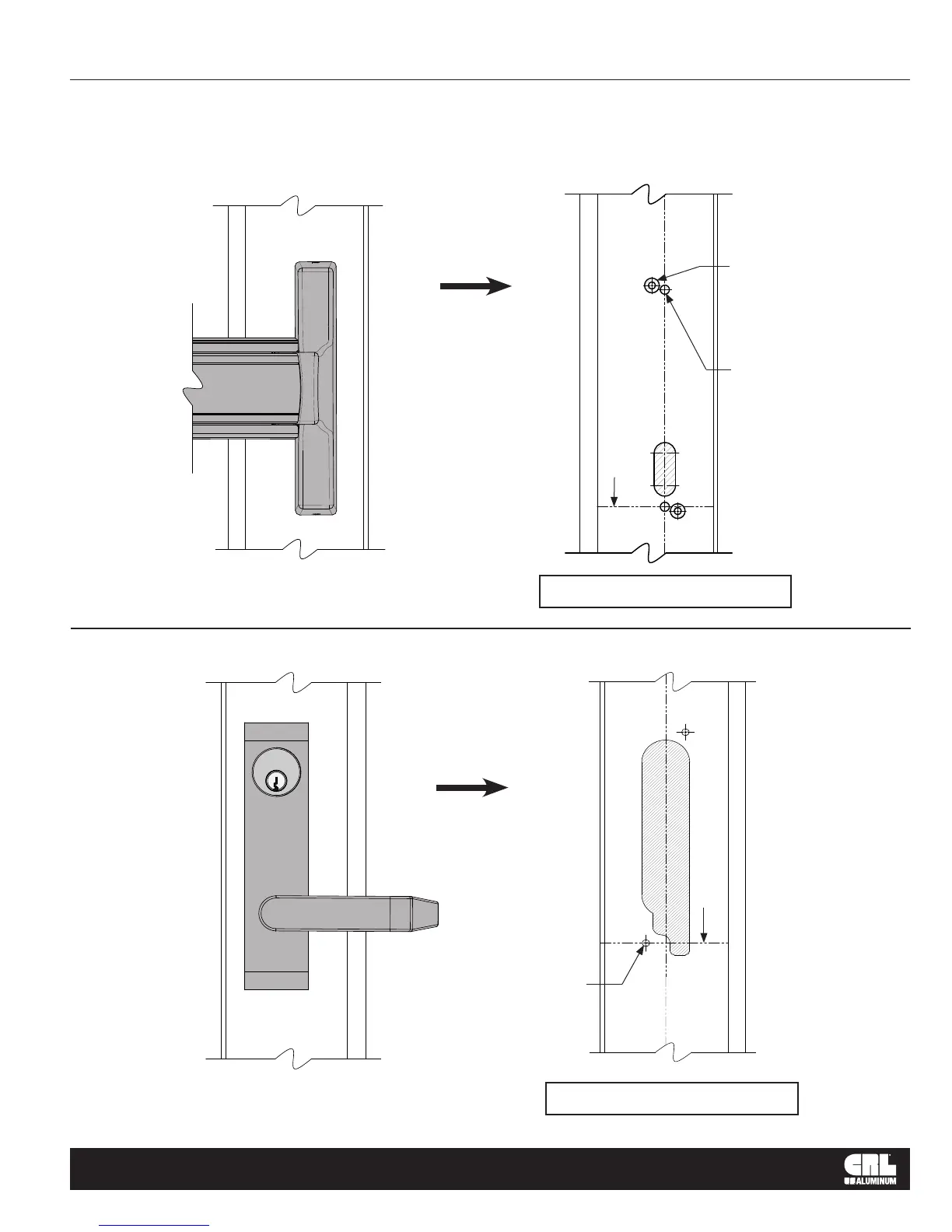

FIG. 8
DOOR PREPARATION – LAYOUT SELECTION
Edge of Door
Edge of Door
Drill and Counter
Sink for a 10-24
FHMS (2) Places
Edge of Door
FIG. 7
2086 EXIT DEVICE INSTALLATION WITH EXTERIOR LOCKING LEVER TRIM
35" (889) to Bottom of Door From This Line
Drill and Tap for
a 10-24 FHMS
(2) Places
Edge of Door
35" (889) to Bottom of Door From This Line
Drill and Tap
for a 1/4"-20
Machine Screw
(2) Places
Glass Stop
Glass Stop
Glass Stop
Glass Stop
INTERIOR VIEW
INACTIVE STILE
Use Template from Box
Use Template from Box
EXTERIOR VIEW
ACTIVE STILE
