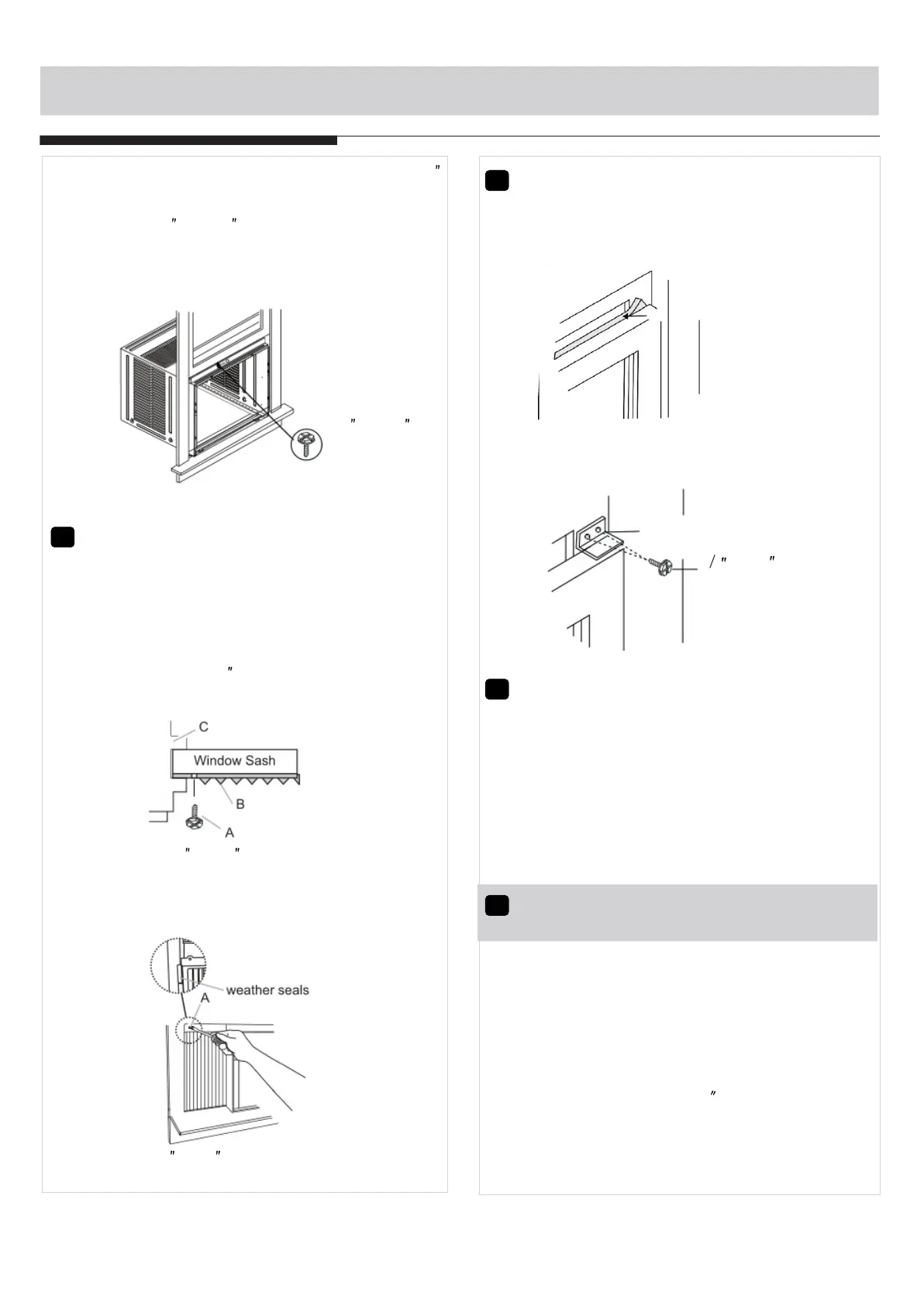

Fig.17A
8
INSTALLATION INSTRUCTIONS
4. Attach the top angle to window frame: Use a 3/32
drill bit to drill one hole through the hole in the
middle of top angle into the window frame, and
drive one 3/ 4 (or 1/ 2 ) HEX-HEAD locking screw
through hole in the middle of top angle into the
window frame as shown (Fig.17A).
7
Attach Window Filler Panels to
Window Frame
1. Extend the window filler panels out against the
window frame.
2. Use a 1/8" drill bit to drill a starter hole through the
hole in the top leg of each window filler panel and
into the window sash (Fig. 18A and Fig. 18B).
Connect with one 3/ 4 (or 1/ 2") long hex head
screw.
8
1. Trim sash seal to fit window width. Insert into
space between upper and lower sashes(Fig.18).
Window Sash Seal
Fig.18
Install Window Sash Seal and
Safety Lock
9
Install Chassis into Cabinet
and Install Front to Unit
1. Lift air conditioner and carefully slide into
cabinet leaving 6 inches protruding.
2. DO NOT push on controls or finned coils.
3. Be sure chassis is firmly seated towards rear
of cabinet.
4. Installation of front is the reverse of removal
outlined in Section 1.
INSTALL R1 HARDWARE (only be
applicable to Energy star models )
In order to minimize air leaks and ensure optimal
insulation, it is necessary to install the included R1
hardware to the side curtain. Follow the instructions
below.
Step 1. After the unit is installed to the window,
measure the inner width of the side curtain as shown
(Fig.20).
10
Fig.18A
A.3/ 4 (or 1/2 ) long hex head screw
B. Left-hand Window Filler
Panel Top Leg
C. Window channel
Fig.18B
A.3/ 4 (or1/2 ) long hex head screw
3/ 4 (or 1/ 2 ) long
HEX-HEAD
SCREW
Safety Lock
3 4 (or1 )Long
Hex-head Screws
/2
Fig.19
2. Attach right angle safety lock (Fig.19).
Step 2. Remark a line on the provide R1 insulation
panel according to a length 1/8 (3mm) less than the
measured width in step 1, then cut the R1 insulation
panel along the line (Fig.12).
To Next Page
