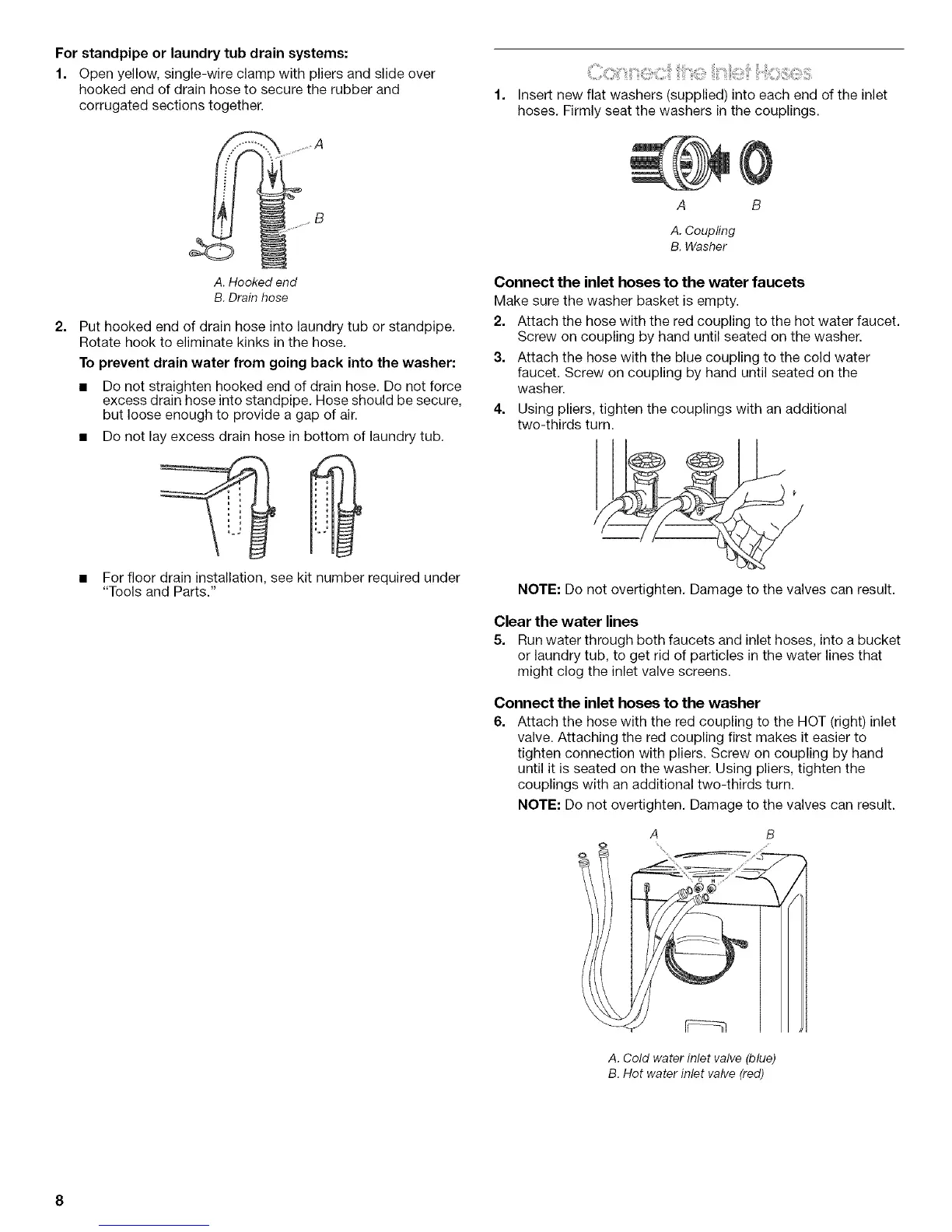

For standpipe or laundry tub drain systems:
1. Open yellow, single-wire clamp with pliers and slide over
hooked end of drain hose to secure the rubber and
corrugated sections together.
Insert new flat washers (supplied) into each end of the inlet
hoses. Firmly seat the washers in the couplings.
2=
A. Hooked end
B. Drain hose
Put hooked end of drain hose into laundry tub or standpipe.
Rotate hook to eliminate kinks in the hose.
To prevent drain water from going back into the washer:
• Do not straighten hooked end of drain hose. Do not force
excess drain hose into standpipe. Hose should be secure,
but loose enough to provide a gap of air.
• Do not lay excess drain hose in bottom of laundry tub.
• For floor drain installation, see kit number required under
"Tools and Parts."
A B
A. Coupfing
B. Washer
Connect the inlet hoses to the water faucets
Make sure the washer basket is empty.
2. Attach the hose with the red coupling to the hot water faucet.
Screw on coupling by hand until seated on the washer.
3. Attach the hose with the blue coupling to the cold water
faucet. Screw on coupling by hand until seated on the
washer.
4. Using pliers, tighten the couplings with an additional
two-thirds turn.
NOTE: Do not overtighten. Damage to the valves can result.
Clear the water lines
5. Run water through both faucets and inlet hoses, into a bucket
or laundry tub, to get rid of particles in the water lines that
might clog the inlet valve screens.
Connect the inlet hoses to the washer
6. Attach the hose with the red coupling to the HOT (right) inlet
valve. Attaching the red coupling first makes it easier to
tighten connection with pliers. Screw on coupling by hand
until it is seated on the washer. Using pliers, tighten the
couplings with an additional two-thirds turn.
NOTE: Do not overtighten. Damage to the valves can result.
A. Cold water inlet valve (blue)
B. Hot water inlet valve (red)
