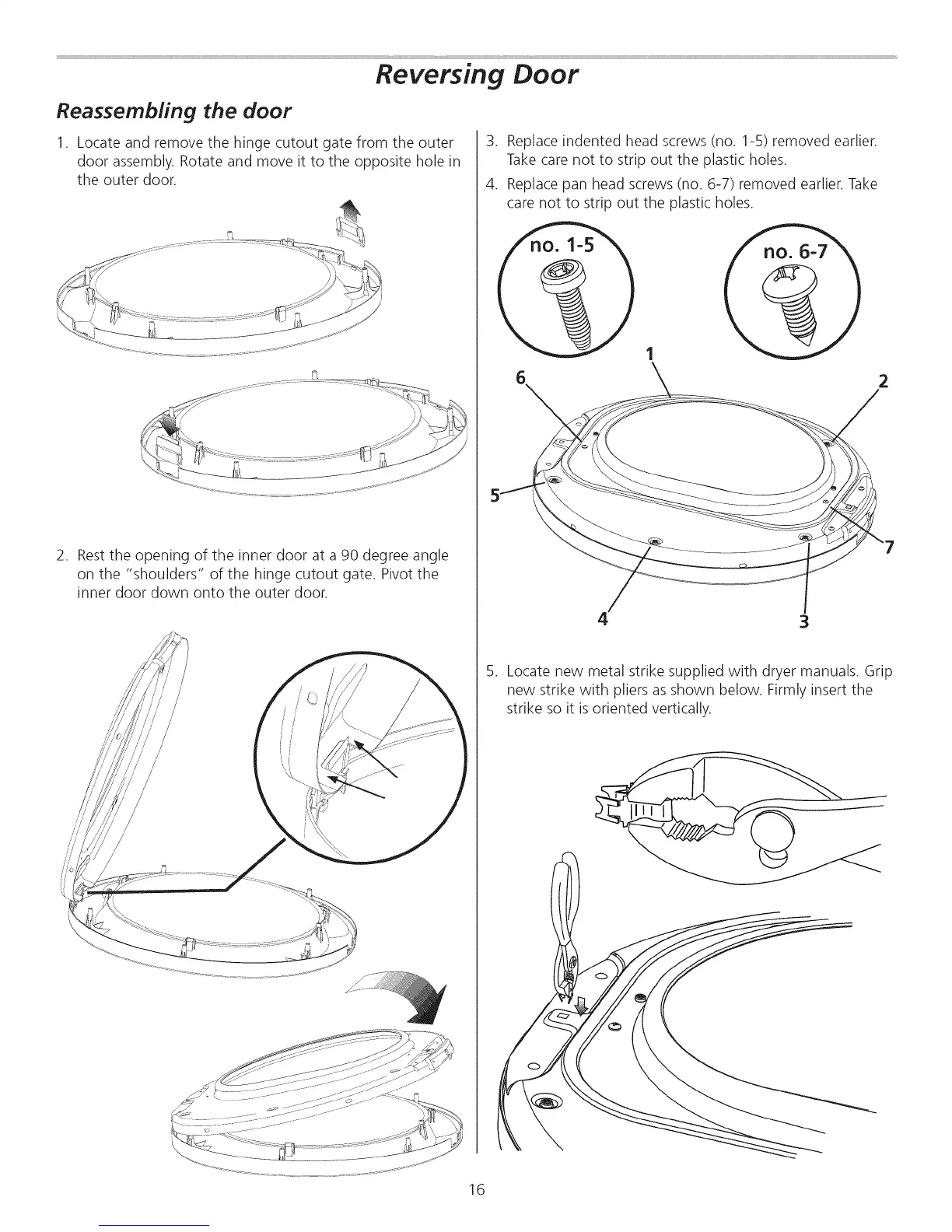

Reversing Door
Reassembling the door
1. Locate and remove the hinge cutout gate from the outer
door assembly. Rotate and move it to the opposite hole in
the outer door.
2. Restthe opening of the inner door at a 90 degree angle
on the "shoulders" of the hinge cutout gate. Pivot the
inner door down onto the outer door.
3. Replace indented head screws (no. 1-5) removed earlier.
Take care not to strip out the plastic holes.
4. Replace pan head screws (no. 6-7) removed earlier. Take
care not to strip out the plastic holes.
°\
3
5. Locate new metal strike supplied with dryer manuals. Grip
new strike with pliers as shown below. Firmly insert the
strike so it isoriented vertically.
16
