This units increased performance characteristics result from having two rear air intakes.
It is very important that these installation instructions are followed so your unit can operate at
maximum efficiency.
If this is an existing sleeve, and there is an existing rear grille, it needs to be replaced by one that
has been shipped with the unit in the accessory kit.
FOR INCREASED EFFICIENCY,UTILIZE THE PROVIDED LOUVERED REAR PANEL
Installation of new grille provided with unit
1. Remove the existing grille.
2. Place the grille included with the new air conditioner towards the rear of the sleeve.
3. Mark through the hole positions.
4. Drill through the sleeves flanges with a 1/8 drill bit.
5. Attached the new grille with self-threading screws and washers.

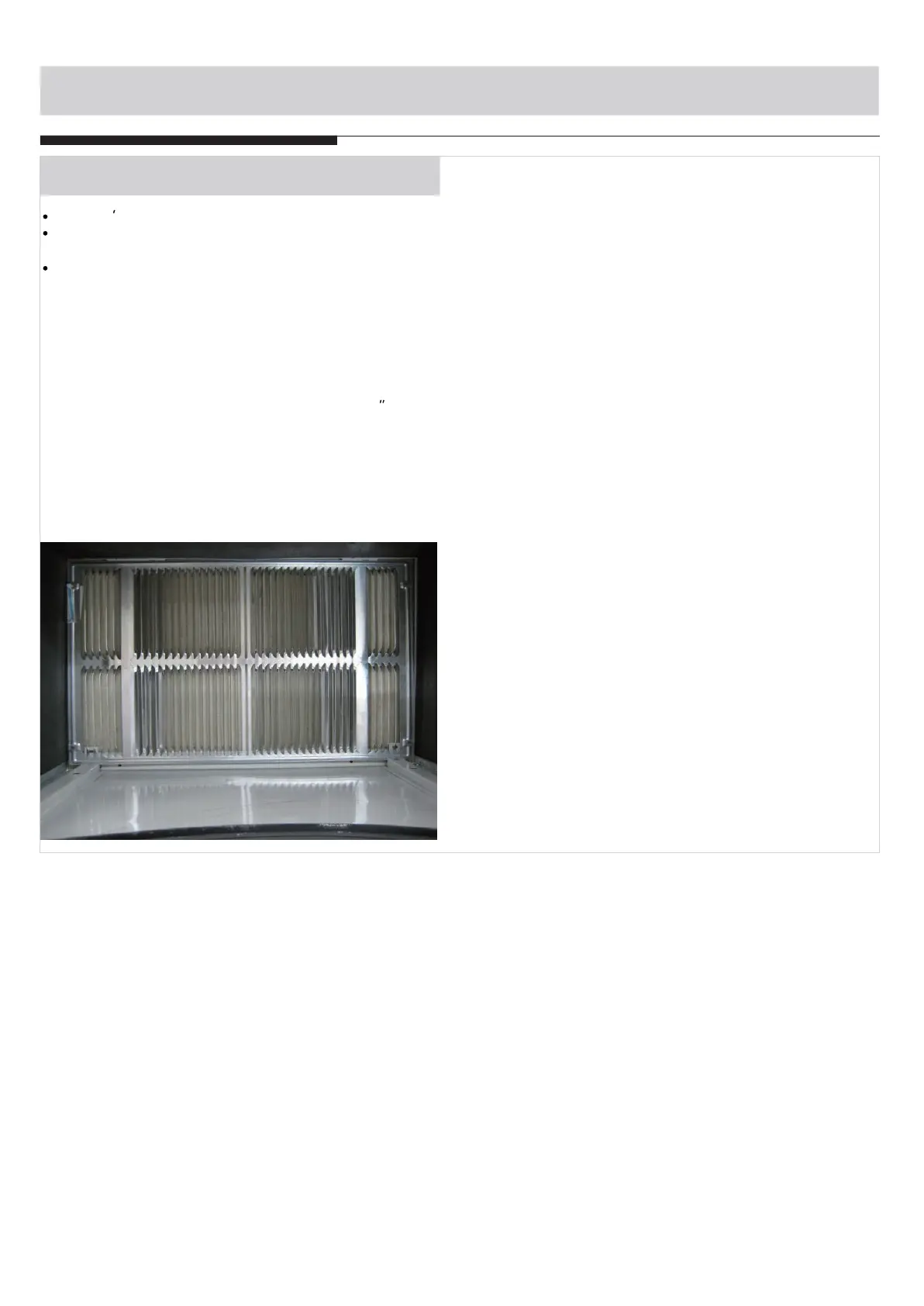

6. It is VERY IMPORTANT that the grill e is placed exactly as shown below.
7.Most decorative exterior grilles may be left in place as long as the proper interior air direction grille
is installed.
