Crosley WR18 User Manual

Lights / Bubble Tubes
FM Stereo Operation
Remote Control
7
4

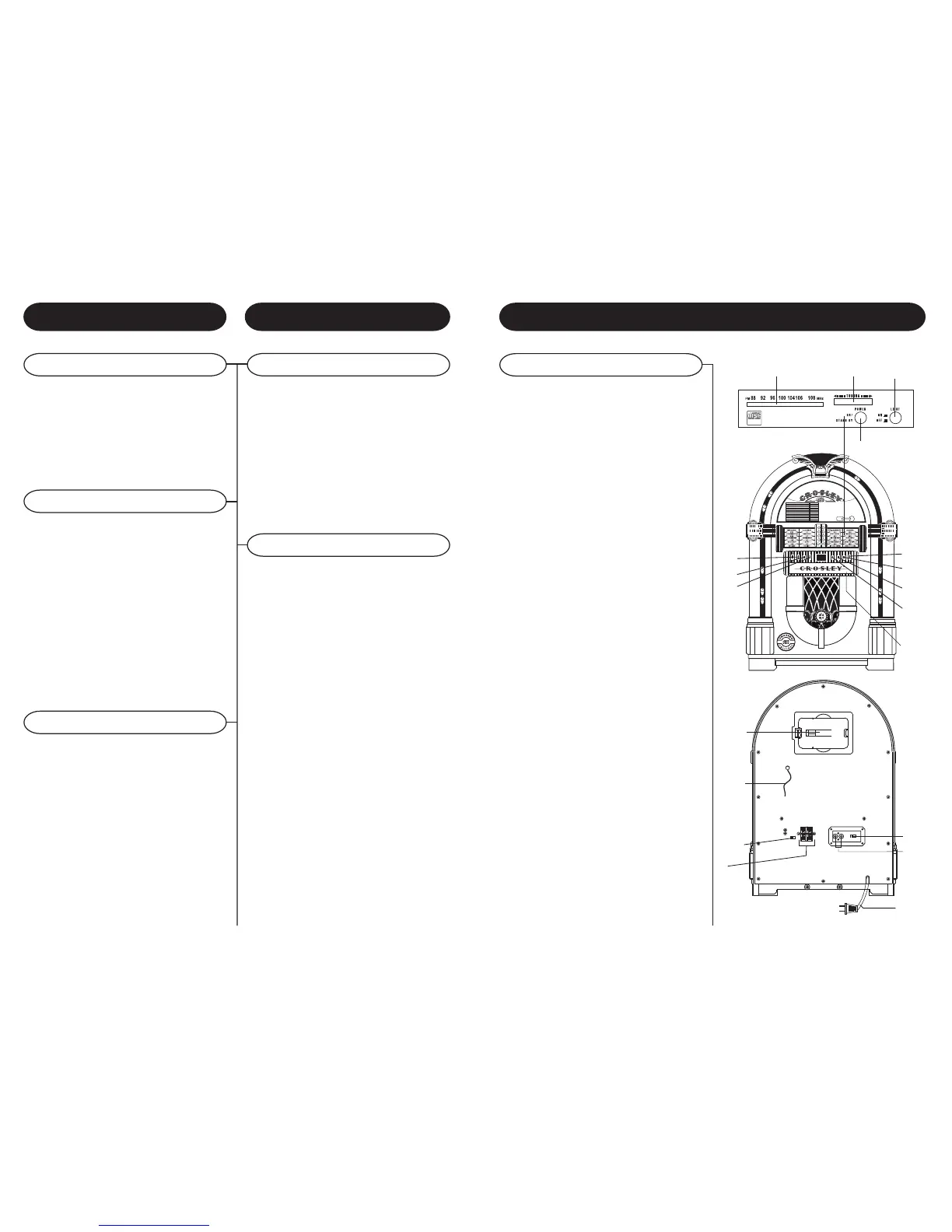

Control Locators
Unit Controls
1 FM Tuner
2 Tuning
3 Light On / Off
4 Power On / Stand By
5 Program Indicator
6 Repeat Indicator
7 Play / Pause Indicator
8 Mute Indicator
9 Remote Sensor
10 Stand By Indicator
11 Power Indicator
12 CD Drawer
13 Remote Holder
14 Speaker Int. & Ext.
15 Speaker Jacks
16 FM Antenna
17 A/C Power Cord
18 Line In Jack
19 Line In ON/OFF Switch
Basic Operation Connecting Optional Equipment
1 Gently pull on top right side of tuner door to open.
2 Push light button in to turn lights on.
3 Bubble tubes will begin to bubble in approximately
15-20 minutes after lights are turned on.
4 Bubble tubes will not bubble unless lights are on.
1 The remote controls both the radio and the CD
player.
2 Use power button to turn unit on or off (standby).
3 Vol + (30) and Vol – (31) are used to raise or
lower volume.
4 CD / RADIO BUTTON (25) switches between
radio and CD operation.
5 The MUTE BUTTON (28) is used to mute volume
completely.
6 The other remote functions are used for CD
controls and will be discussed under CD operation.
1 Turn power on using either the remote or power
button located behind tuner door.
2 Push CD / RADIO BUTTON (25) to enable FM
tuner.
3 Turn FM dial to desired station.
4 Position FM ANTENNA (16) for best reception.
5 Set volume to desired listening level.
4
2
3
1
1 This radio is equipped with external speaker
outputs.
2 The speaker jacks for external speakers are
located on the back of the radio. Beside the
speaker jacks is a switch labeled (int./ext.) When
using external speakers, this switch must be
switched to the ext. position. Doing this turns off
the internal speakers in the radio and redirects
to power to the external speakers.
3 If you decide not to use the external speakers,
be sure the switch is on int. or the internal
speakers will not work.
1 You can connect external components to your
unit by using the Auxiliary Inputs.
2 Plug Auxiliary cables (not supplied) into the
INPUT JACK (18) on the back of your unit.
3 Switch the LINE IN ON/OFF (19) to the ON
position.
4 Plug the other end of the Auxililary cables into
the output jack on your desired external
component.
5 Check the volume level of your external
component.
6 See operators manual for correct operation of
the external component.
External Speakers
Auxiliary Inputs
10
11
8
9
5
6
7
12
18
19
15
14
16
13
17
EXT.
SPEAKER
R
R
L
L
+ +
_ _
INT. EXT.
Impedance: 4 Ohm 5 W

Crosley WR18 Specifications
