9
Installation Instructions

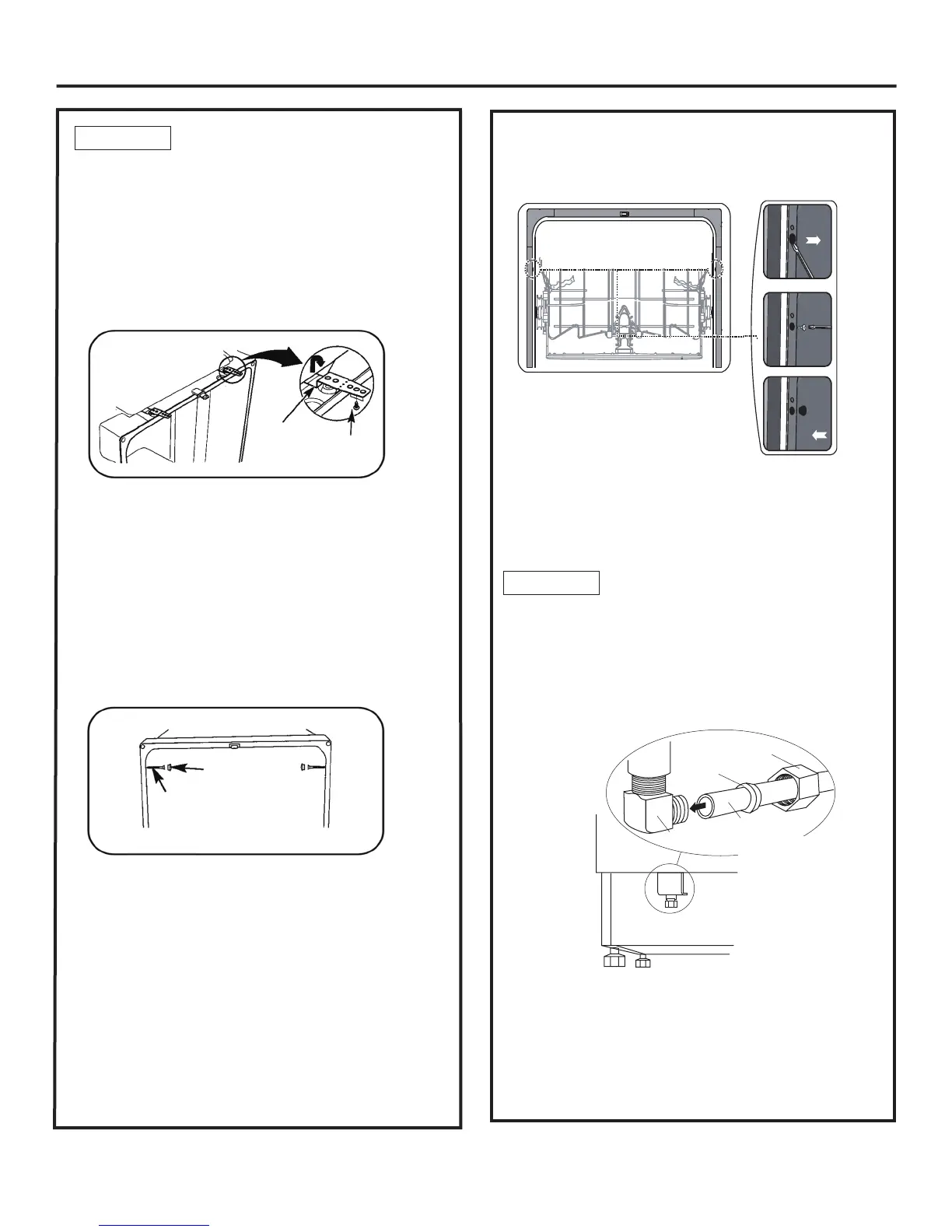

STEP 11 SECURE DISHWASHER
TO THE COUNTERTOP
IMPORTANT
–
Drive screws
straight and flush. Protruding screw heads will
scratch the top of the control panel and can
interfere with door closing.
STEP 12 CONNECT WATER SUPPLY
Connect water supply line to 90° elbow.
· Slide compression nut, then ferrule over end of
water line.
· Insert water line into 90° elbow.
· Slide ferrule against elbow and secure with
compression nut.
IMPORTANT –
Check to be sure
that door spring does not rub or contact the fill hose or
water supply line. Test by opening and closing the door.
Re-route the lines if a rubbing noise or interference
occurs.
Ferrule
90
°
Elbow
Compression Nut
Hot Water
Supply Line
Open the door remove the tub cap on both sides of
the tub. Install screw through the dishwasher side
hole to the wall of cabinet. Reinstall tub cap.
For countertops made of wood or that will not
be damaged by drilling,use Method 1.
For countertops made of granite,marble,or
other materials that could be damaged by
drilling,use Method 2.
METHOD 1
1. Use longer brackets.
2. Insert the installation brackets into the slot.
3. Bend the brackets to secure them to the
dishwasher tub.
4. Using the provided screws,secure the
dishwasher to the countertop through the
holes in the bracket.
METHOD 2
1. Remove the plastic caps on the mounted bracket
access holes.
2. Driver a wood screw through the mounted
bracket and into the cabinet frame.
3. Reinstall the plastic caps.
Installation
bracket
Screw
Screw
Cap
To Next Page
