Now loosen both axle nuts.
The front wheel can now be removed just like a regular bicycle
and tyre, inner tyre or spoke damage repaired.
Assembly
Replace the front wheel and position the torque support discs
onto the hub axle within the fork again.

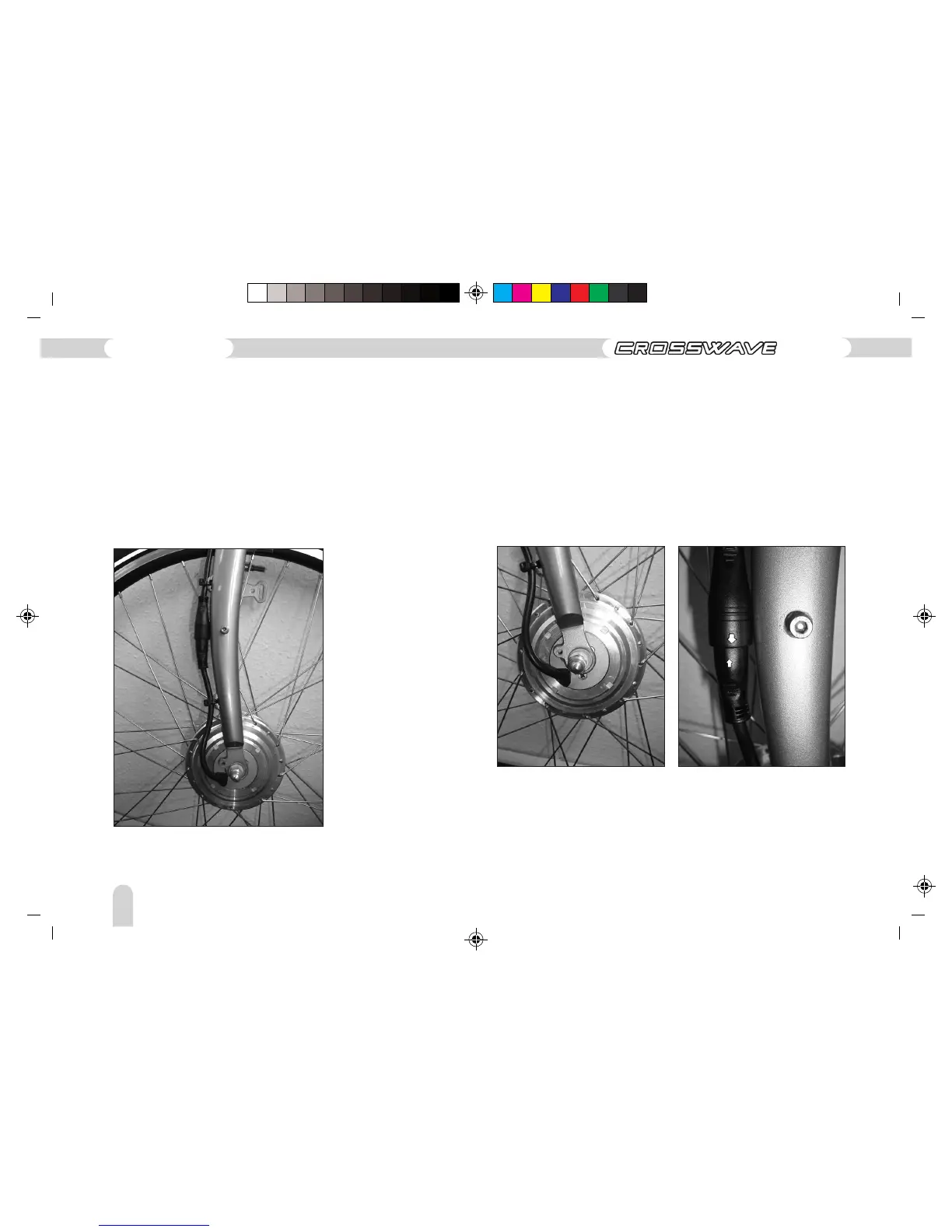

Removal of the Front Wheel
Figure 23
Figure 24
If tyre damage occurs and it is necessary to remove the front
wheel then follow the instructions given below:
Removal
Remove the battery from the Pedelec Cut both of the cable
straps which secure the motor socket to the fork.
Replace the axle nuts. Align the front wheel and tighten the axle
nuts firmly.
Figure 25
Simply pull the socket apart to open.
