INSTALLATION MANUAL
NTR 756 D / e 09/2003- 10/13
3. Installation
3.1 DIN rail mounting
The modules can be mounted on 35 mm DIN rails (EN 50022).
(Mounting at the back of the enclosure on a metal grid or mounting in a DIN 43 880 box).
3.2 Panel mounting
Recommended fixing screw diameter: M4.
3.3 Screw terminal connection
The end of the wire should be fitted with a ferrule.

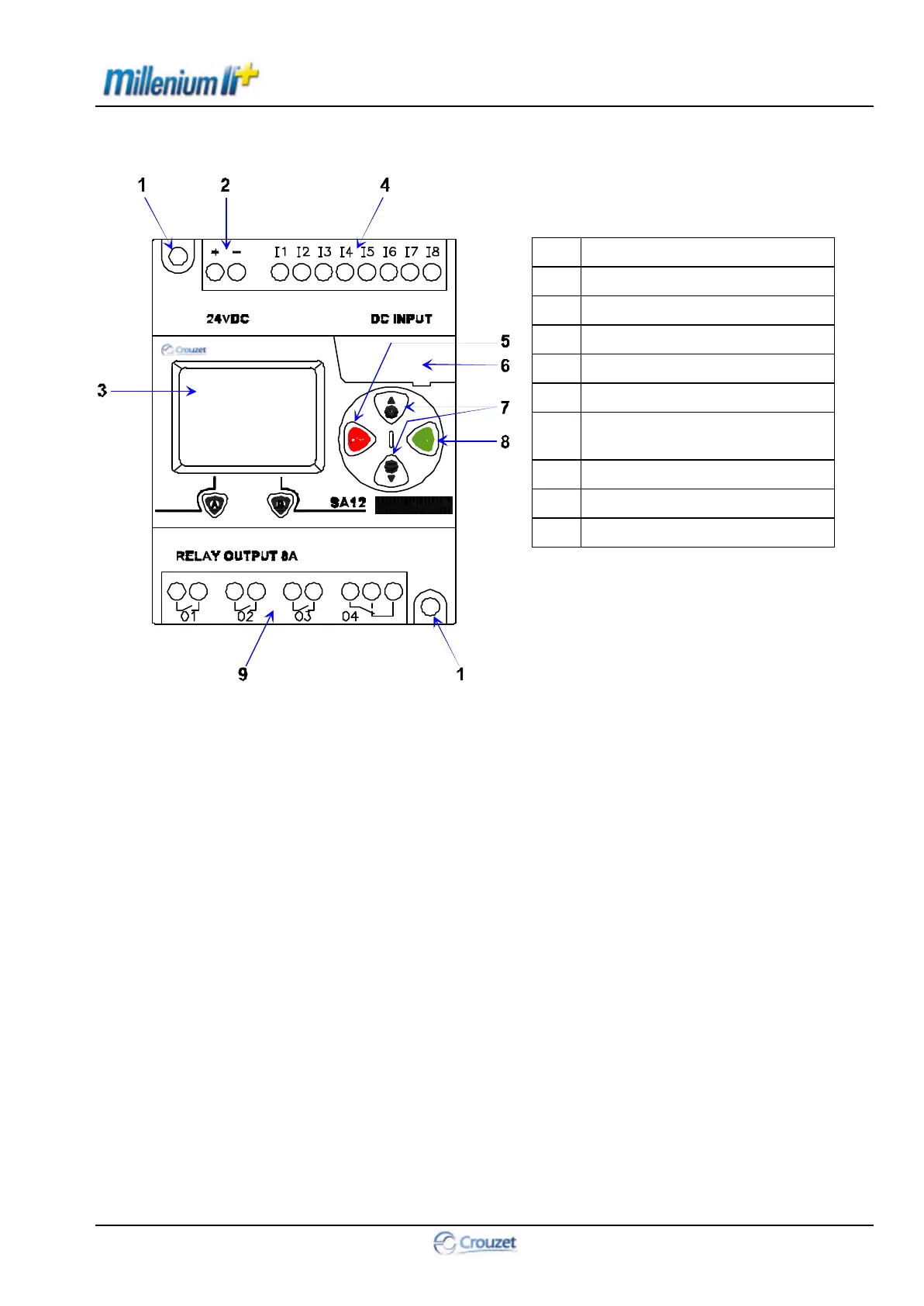

Ref. Description of front panel
1 Fixing holes
2 Power supply screw terminal
3 LCD display
4 Input screw terminal
5 Escape key
6
Slot for memory module or PC
cable
7 Scroll buttons
8 Selection button
9 Output screw terminal
