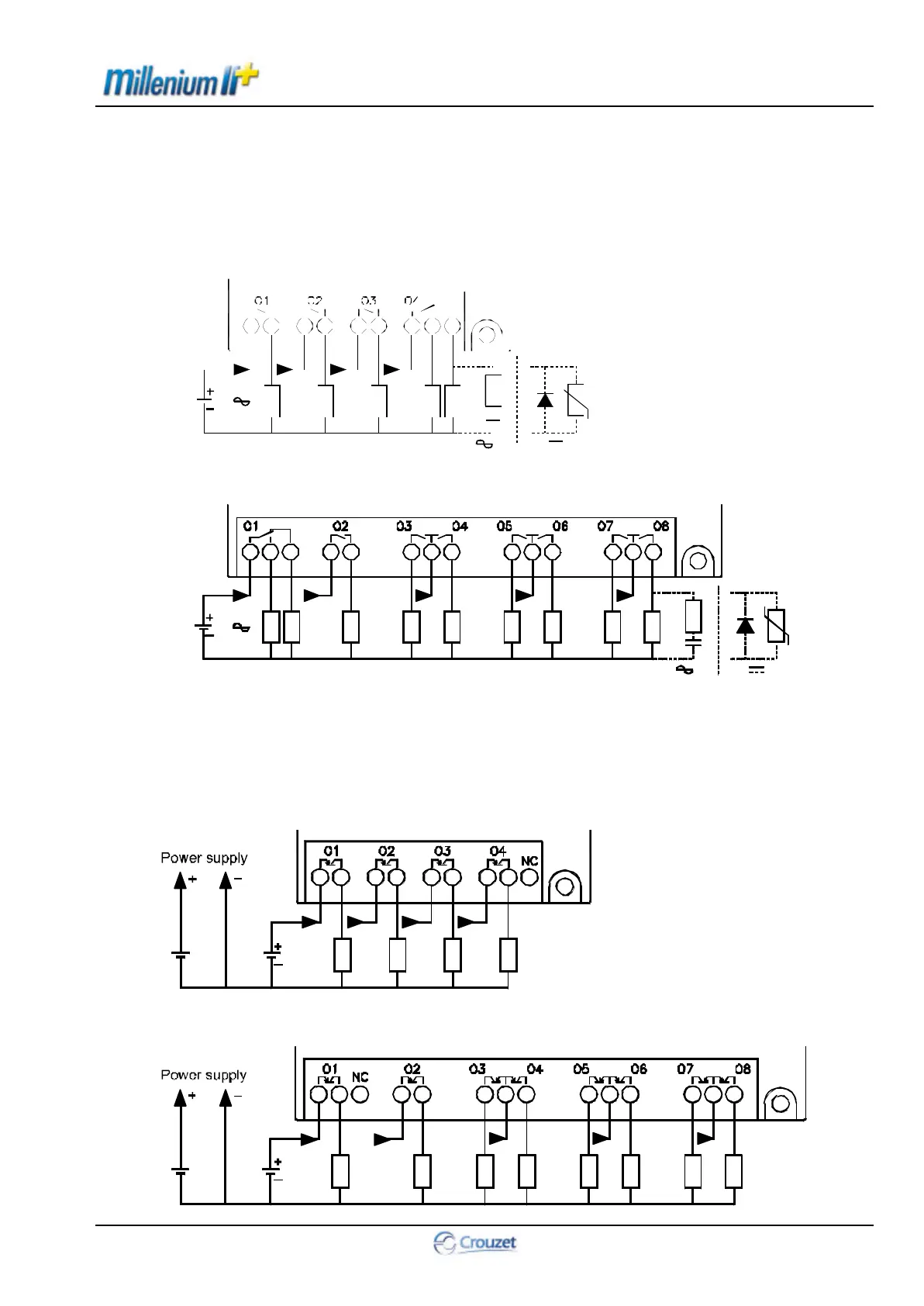

4.5 Output wiring diagram
OUTPUT: RELAY
Resistive load: 8A 250 VAC/30 VDC
OUTPUT: TRANSISTOR
5…28.8 VDC/0.7A max
SA/EC/CN 12R
ou
SA/EC/EX - XT/CN 20R
ou
SA/EC/CN 12S
SA/EC/EX - XT/CN 20S
