Crown XLi 800 - Wiring; Parallel Wiring with Speakon Connectors; Parallel Wiring with Binding Post Connectors

XLi Series Power Amplifiers
page 8
Operation Manual
Parallel Wiring Using the Speakon
®
Connectors
With this wiring, a signal sent to one of the input connectors is paralleled to both channels so that it is reproduced
by both speakers.

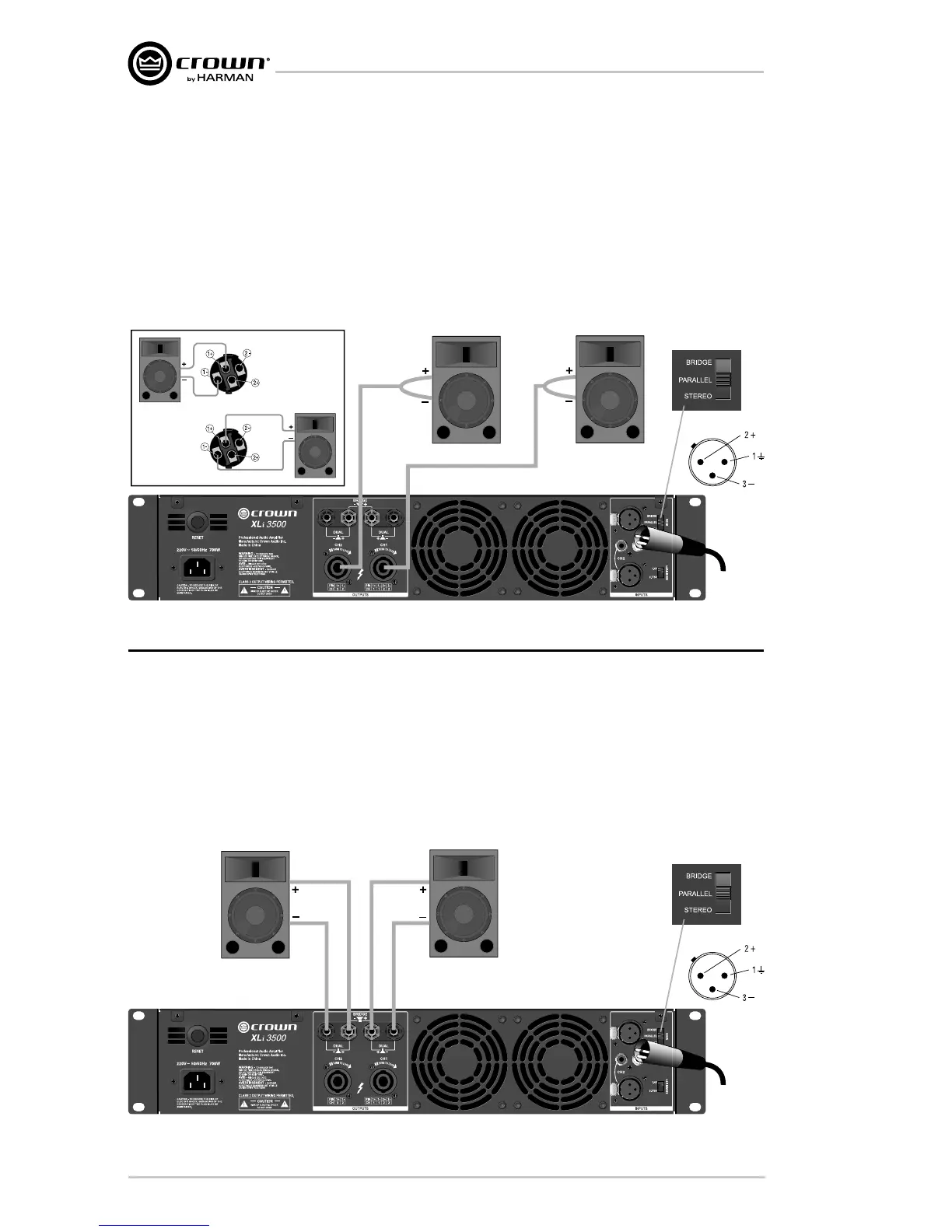

1. See Figure 7. On the back panel, set the Output Mode Switch to PARALLEL.
2. Wire the speakers to the Speakon
®
connectors as shown.
Wiring
Parallel Wiring Using the Binding Post Connectors
With this wiring, a signal sent to one of the input connectors is paralleled to both channels so that it is reproduced
by both speakers.
1. See Figure 8. On the back panel, set the Output Mode Switch to PARALLEL.
2. Wire the speakers to the binding post connectors as shown.
