Adjusting oil temperature probe length
Before testing, the probe must be adjusted to the correct length as follows:

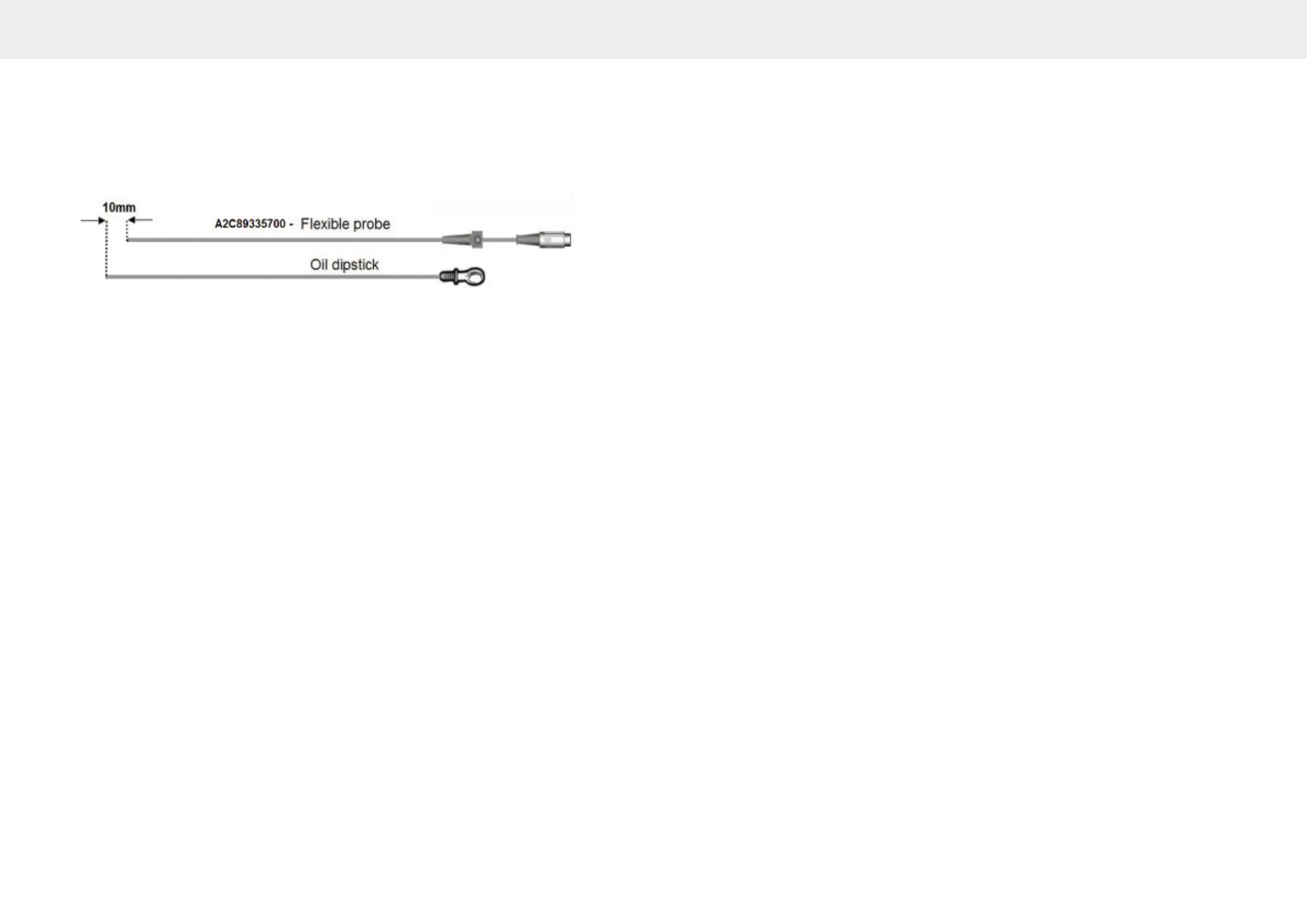

Lay it alongside the vehicle dipstick (see illustration) and adjust the position of the depth stop until
the effective length of the probe is approximately 10mm shorter than the dipstick.
WARNING: ENSURE THAT THE OIL TEMPERATURE PROBE IS SET TO THE CORRECT DIPSTICK
LENGTH AND THAT IT IS CLEAN FROM DEBRIS BEFORE INSERTING INTO THE ENGINE. FAILURE
TO DO SO MAY RESULT IN SERIOUS DAMAGE TO THE PROBE AND/OR ENGINE.
Emissions Tester CCP700/800 Series Hints & Tips
21
Smokehead Power Supply Test
Use a Digital Volt Meter (DVM) to measure the voltage output from the Smokehead Charging
Cradle.
Bluetooth Enabled Units
The output from a Bluetooth Unit cradle should be 30VDC±0.2V (Smokehead present button
depressed). If the reading is outside of these limits gain access to the power supply inside of the
trolley assembly and adjust the output voltage using the adjustment potentiometer on the side of
the power supply unit. Ensure the polarity is such that the +ve output pin is closest to the trolley
i.e. right hand pin when viewed from the front of the assembly.
Cabled Units
Remove the Smokehead end cap and unplug the cable inside the head before switching
power on. Connect the DVM to the red and black leads & switch power on – the output
should be 24VDC±0.2V. If the reading is outside of these limits gain access to the power
supply inside of the trolley assembly and adjust the output voltage using the adjustment
potentiometer on the side of the power supply unit.
