cable gland strain relief is tightened
■ Connect the 4-pin multi-plug (4a) and the
2-pin plug (4b)
■ Locate the end plate to the smoke head
(cable on left hand side) and loosely
secure with the four pan head screws
■ Check that the lens housing is fully in,
then t the end cap and secure with the
knurled knob. Fully tighten the knurled
knob then slacken half a turn
■ Push the end plate upwards as far as it will
go, and then fully tighten the 4 pan head
screws
■ Fully tighten the knurled knob on the end
cap
5.9 Adjusting Oil Temperature
Probe Length
Before testing, the probe must be adjusted
to the correct length as follows:

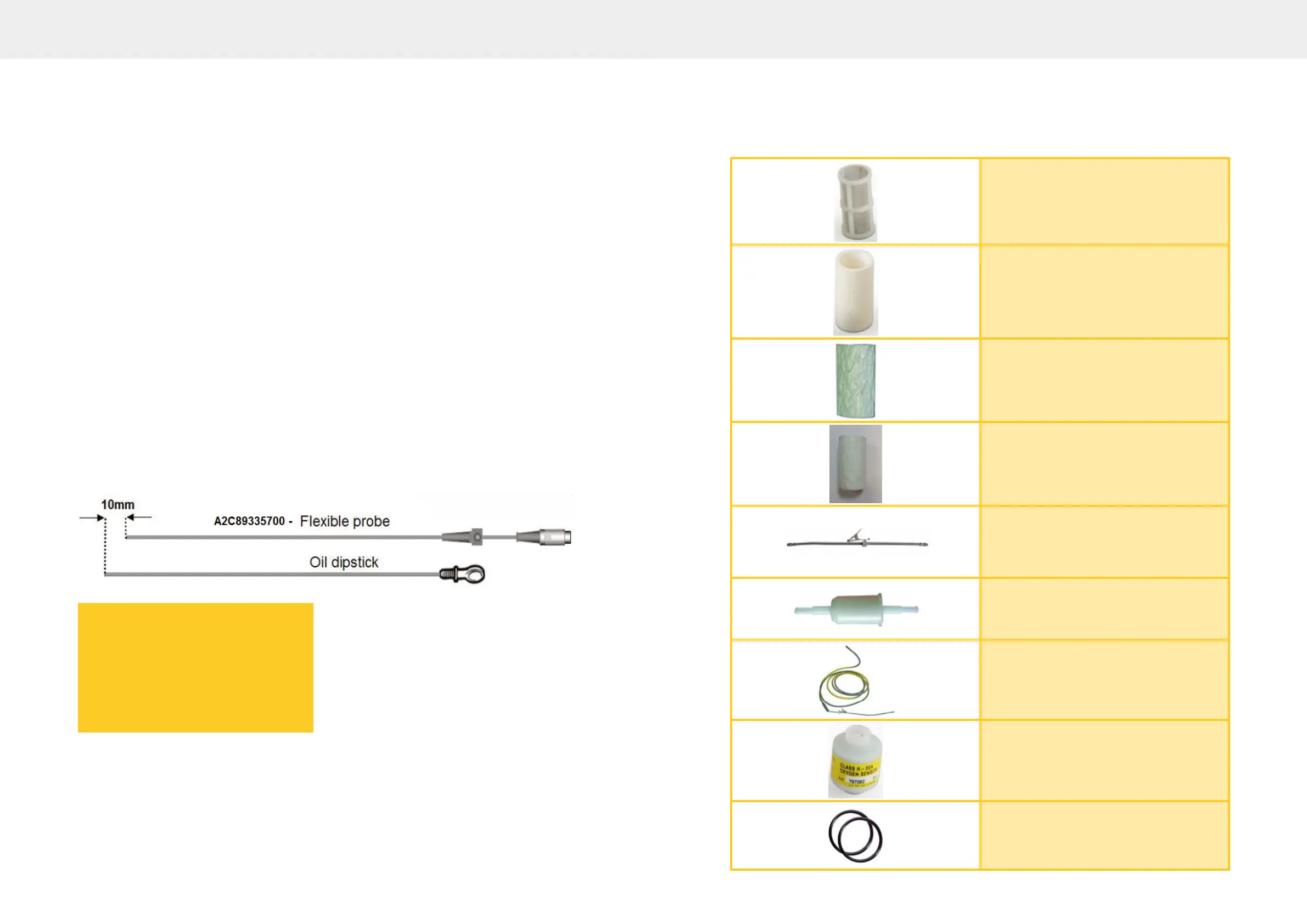

Lay it alongside the vehicle dipstick (see
illustration) and adjust the position of the
depth stop until the eective length of the
probe is approximately 10mm shorter than
the dipstick.
WARNING:
ENSURE THAT THE OIL
TEMPERATURE PROBE IS SET TO
THE CORRECT DIPSTICK LENGTH
AND THAT IT IS CLEAN FROM
DEBRIS BEFORE INSERTING INTO
THE ENGINE. FAILURE TO DO SO
MAY RESULT IN SERIOUS DAMAGE
TO THE PROBE AND/OR ENGINE.
6 Vehicle Exhaust Gas Analyser (VEGA)
Consumables
A2C88837300
Primary Filter
680EN1
A2C87827300
Gas Filter
680EN1
A2C1839470000
Gas Filter
682EN1
A2C1839450000
Water Filter
682EN1
A2C88114200
Pre-Filter
680EN1 & 682EN1
A2C88660300
Sample Probe End
680EN1 & 682EN1
A2C87844900
Sample Probe (Complete)
680EN1 & 682EN1
A2C88396300
Oxygen Sensor aka O2 Cell
680EN1 & 682EN1
A2C88028300
Filter Bowl O Rings
680EN1
