CSL ACROBAT - Page 14

MAINTENANCE GUIDE
IC HOUSING | ACROBAT
12A

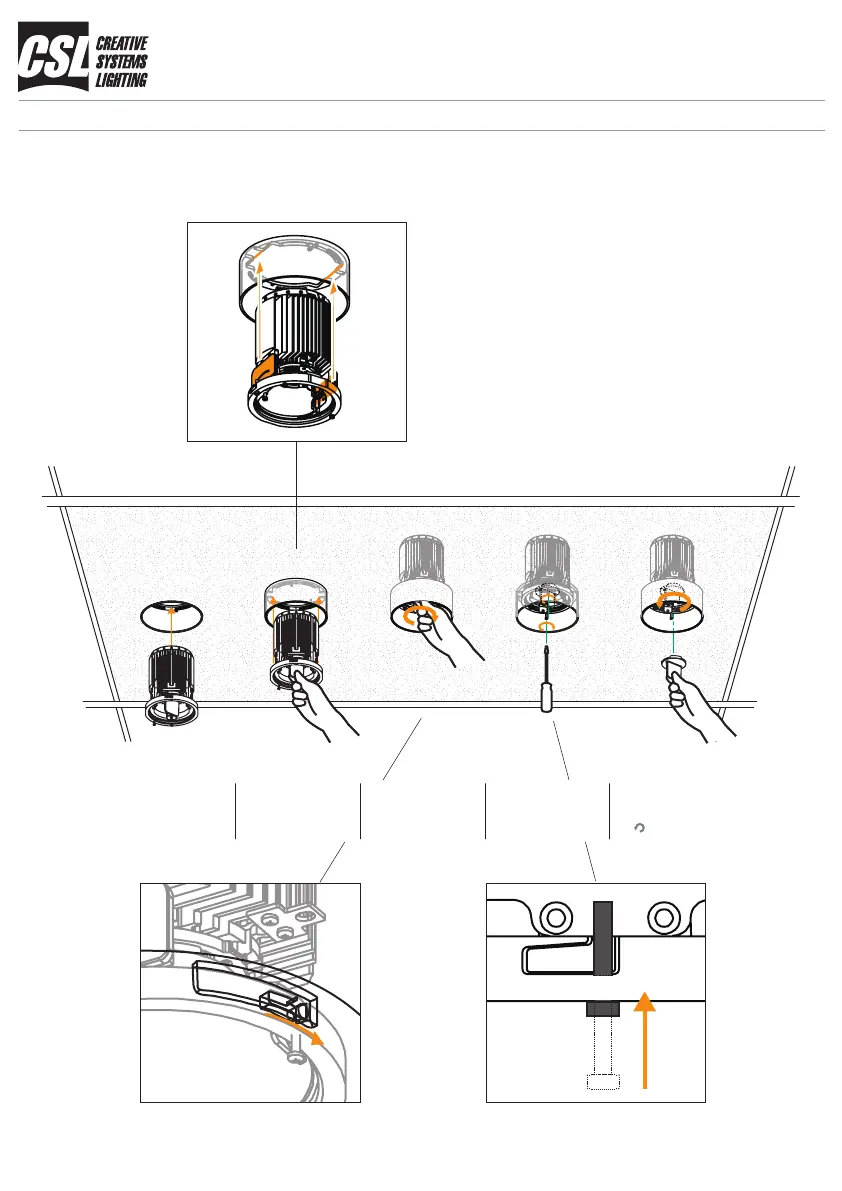

STEP 12 - INSTALL THE MODULE
Step 12-1 : Step 12-2 :
Aline the module
with the collar. (3A)
Insert the module to
the collar
Step 12-3 :
Twist and lock the
module clockwise.
(12B)
Step 12-4 :
Tighten the screws
to secure the
module. (12C)
Step 12-5 :
Twist and release
the tool anticlockwise.
( )
12B 12C
