CSL ACROBAT - Page 15

MAINTENANCE GUIDE
IC HOUSING | ACROBAT
13A

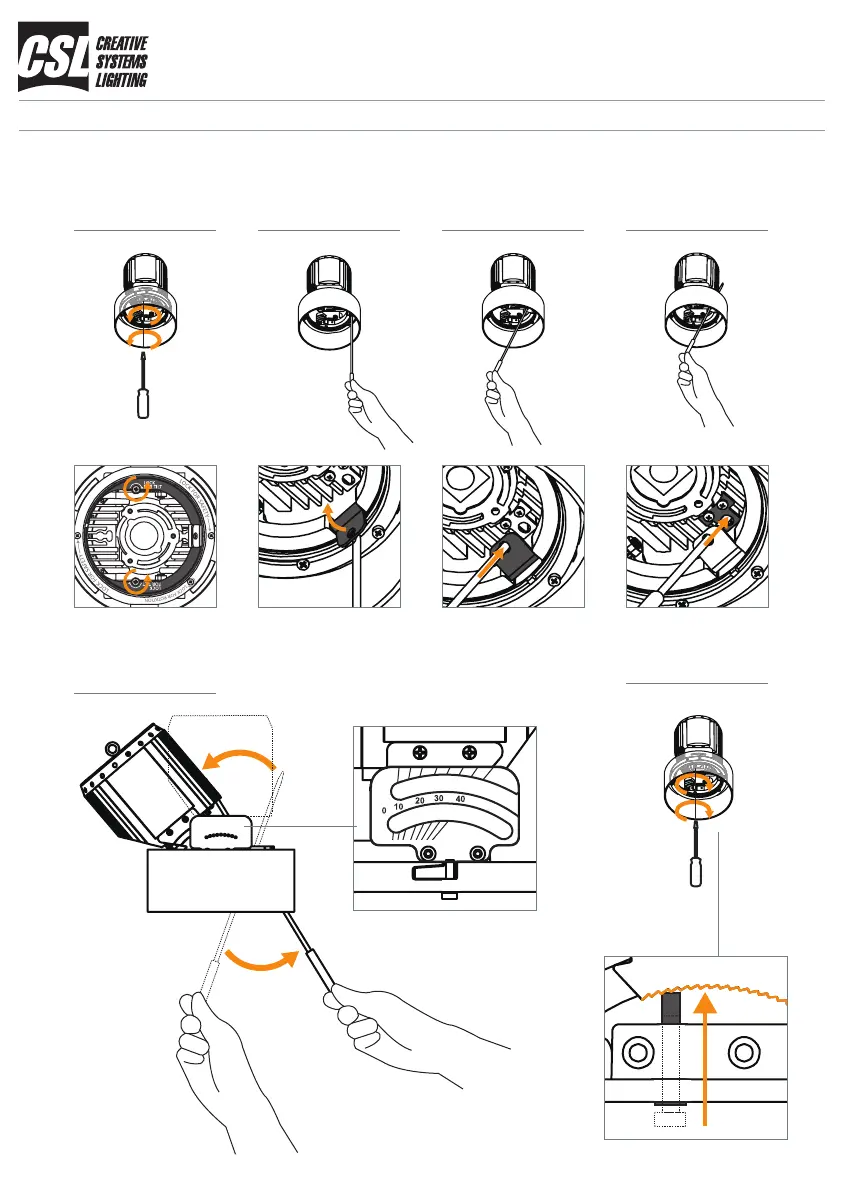

STEP 13 - TILT ANGLE ADJUSTMENT 0
° ~ 40 °
Step 13-1 :
Release this two Screws
of Lock for Tilt.
Step 13-6 :
Tight two Screws of Lock
for Tilt.
Step 13-2 :
Insert screwdriver through
the first clip
Step 13-3 :
Push the screwdriver to the
heat sink
Step 13-4:
Insert screwdriver through the
second clip
Step 13-5 :
Use the Screwdriver and
adjust tilt angle, Scales on
the two side of module. (13A)
