CSL CS2369 User Manual

CELL PROPERTIES
04031105.CSV
2G B_1800 62%
RSSI: -75dBm
2G B_900 52%
RSSI: -81dBm
2G B_900 52%
RSSI: -81dBm
2G B_900 34%
RSSI: -92dBm
2G B_900 32%
RSSI: -93dBm
1 EE
ID: 80AB
2 O2 - UK
ID: 5B8C
3 vodafone UK
ID: 285C
4 vodafone UK
ID: 78AB
5 O2 - UK
ID: 6106
TECHNOLOGY
The technology will be displayed either
2G (GSM), 3G (UMTS), 4G (LTE)
SIGNAL STRENGTH (RSSL)
Each base station will give the signal
strength available at the present time.
See ‘RSSL EXPLANATION’ section
RSSI
Received signal strength indicator in
dBm
NETWORK
The mobile operator will be
displayed here
CELL ID
Cell ID number
FREQUENCY BAND
CELL PROPERTIES
04031105.CSV
2G B_1800 62%
RSSI: -75dBm
2G B_900 52%
RSSI: -81dBm
2G B_900 52%
RSSI: -81dBm
2G B_900 34%
RSSI: -92dBm
2G B_900 32%
RSSI: -93dBm
1 EE
ID: 80AB
2 O2 - UK
ID: 5B8C
3 vodafone UK
ID: 285C
4 vodafone UK
ID: 78AB
5 O2 - UK
ID: 6106
NETWORK : EE
TYPE : 2G
CELL NO. : 1
ARCFN : 684
LAC : 2250
MCC : 234
MNC : 30
RSSI : 75
STATUS : 0
RSSL : 62
BSIC : 46
ID : 32939
NUM ARFCN : 0
BER : 00.00
8

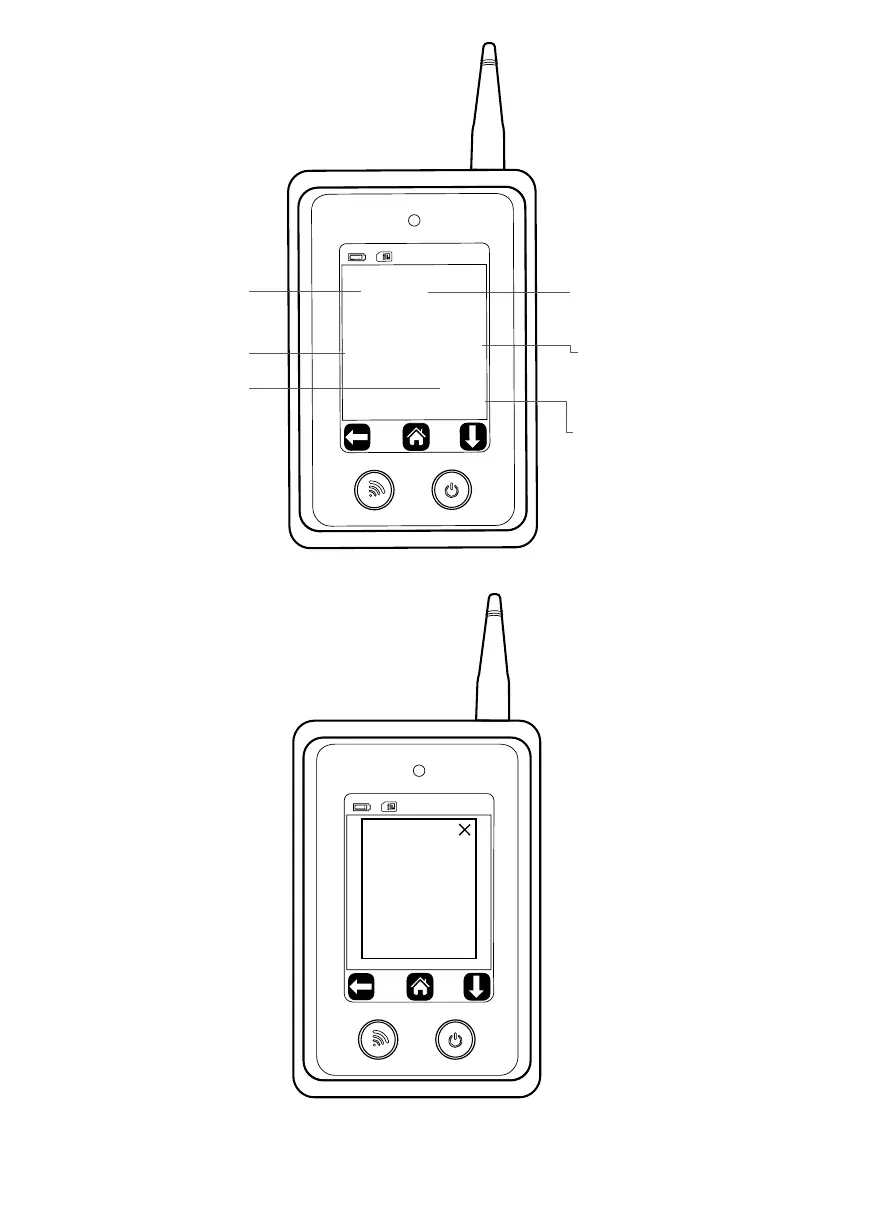

Figure 3 - Cell Properties
Figure 4 - Advanced Cell Properties
