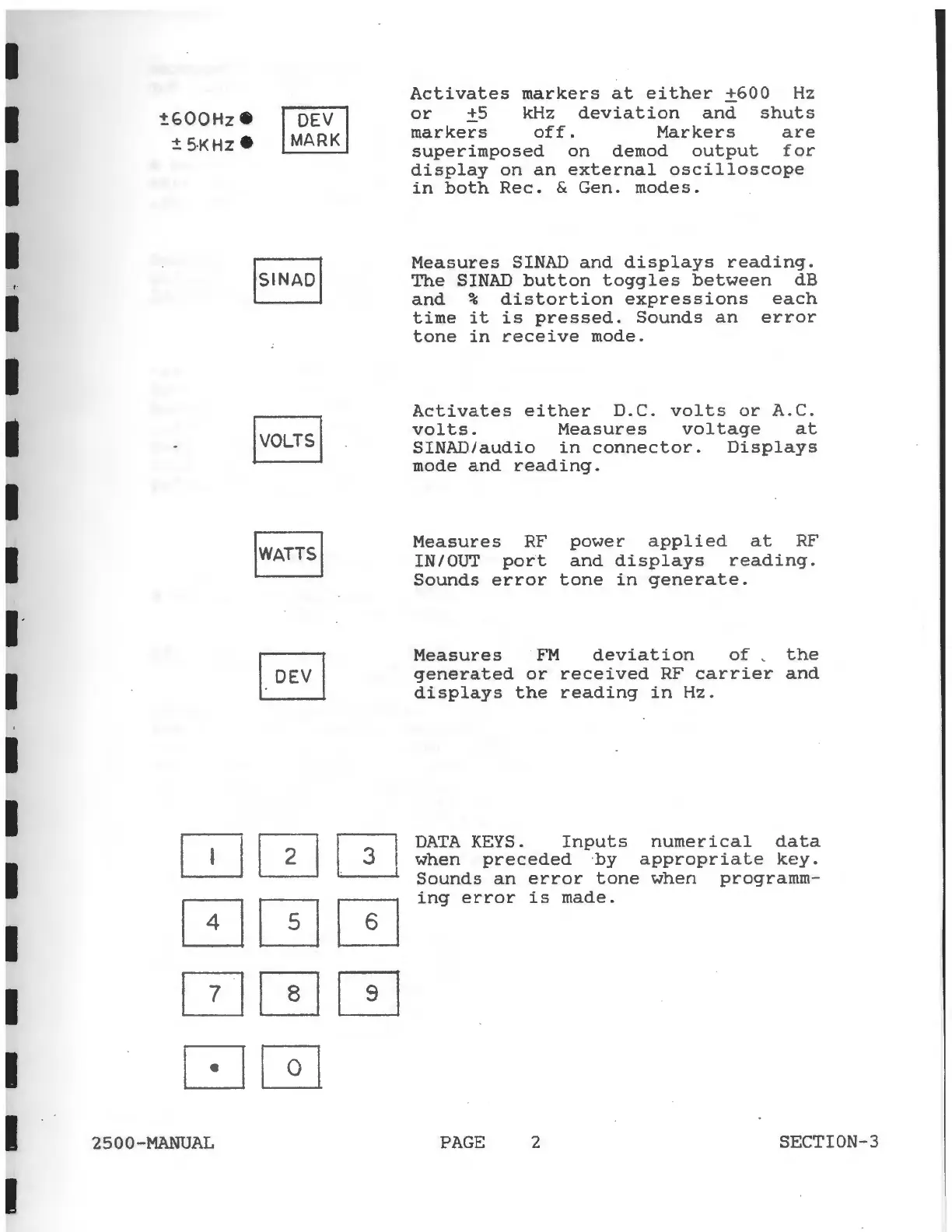

CT Systems Wavetek 2500 - Page 12

"!600Hz •
± 5· KHZ.
loEvl
~
ISINADI
I voLTs I
IWATTSI
8
,--~--10 ~
~GG
C!J~G
8IT1
2500-MANUAL
Activates markers at either ±600 Hz
or ±5 kHz deviation and shuts
markers off. Markers are
superimposed on demod output for
display on an external oscilloscope
in both Rec. & Gen. modes.
Measures SINAD and displays reading.
The SINAD button toggles between dB
and % distortion expressions each
time it is pressed. Sounds an error
tone in receive mode.
Activates either D.C. volts or A.C.
volts. Measures voltage at
SINAD/audio in connector. Displays
mode and reading.
Measures RF power applied at RF
IN/OUT port and displays reading.
Sounds error tone in generate.
Measures FM deviation of , the
generated or received RF carrier and
displays the reading in Hz.
DATA KEYS. Inputs numerical data
when preceded by appropriate key.
Sounds an error tone when programm-
ing error is made.
PAGE 2
SECTION-3
