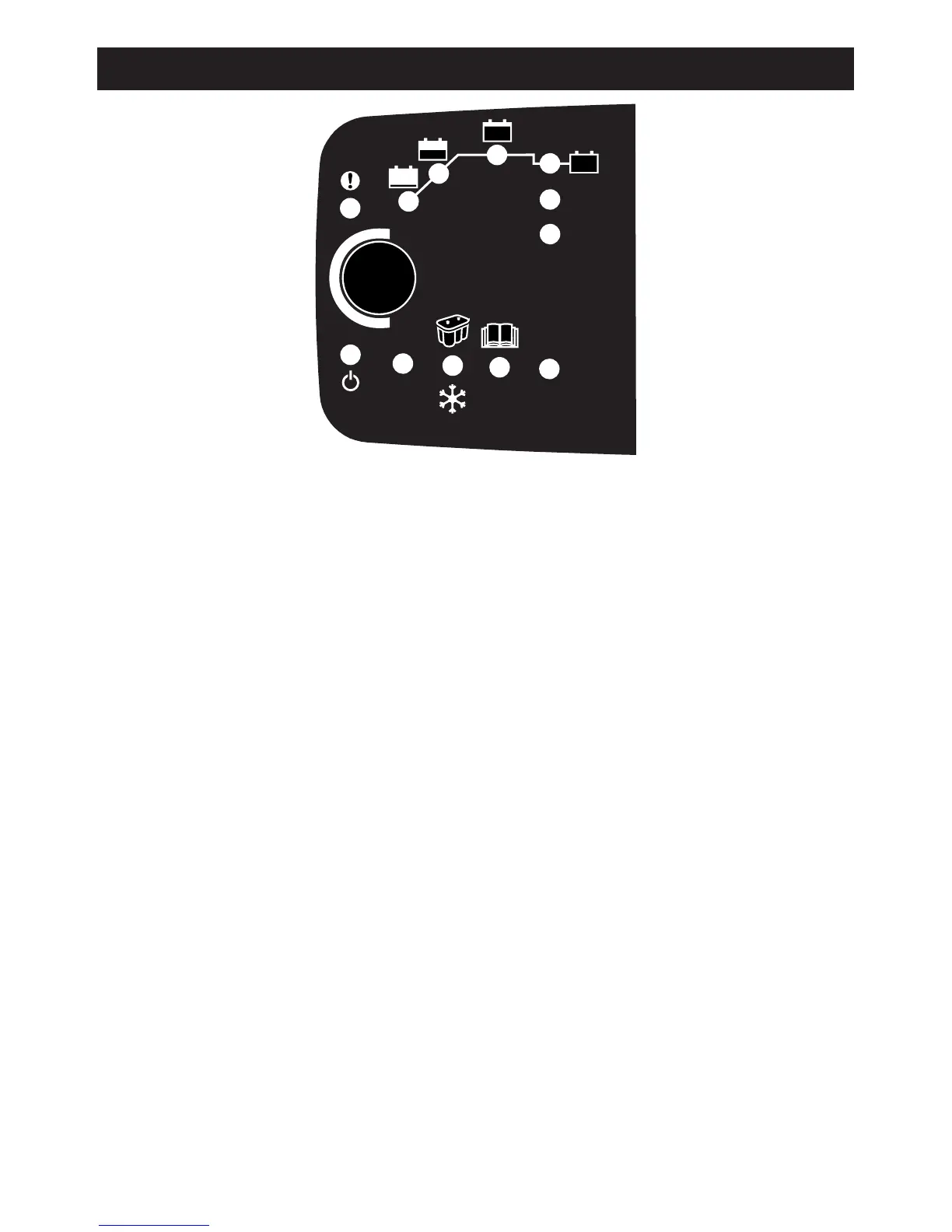

Indication Description
0 Error mode, the charger interrupts the charging/voltage supply. See description
below.
1 Start mode, restricted charging current and battery voltage under 10.5 V.
2 Bulk charging, Maximum charging current.
3 Absorption charging, Voltage restrictions to selected voltage.
4 Charging completed. Pulse maintenance charging.
5 Supply mode, fixed output voltage, no counter voltage requirements.
6 Recond charging in progress, constant current 1.5 A.
A STANDBY - Power on no selection done,
B Mode 14.4 V - See battery types and settings.
C Mode 14.7 V - See battery types and settings.
D Mode 13.6 V / Supply - See battery types and settings.
E Mode 16 V / 1.5 A / 4 h Recond - See battery types and settings.
Error mode
The charger goes to error mode in the following situations:
1. Charging is started without a battery with terminal voltage over 1.5 V being con-
nected to the terminals.
2. The battery is connected with the battery´s terminals reversed to the charger's
terminals.
3. The terminals on the charger are short-circuited when charging has started.
4. The charger is overloaded in Supply mode.
5. The charger has been in start mode for more than 6 hours.
6. If the total time for bulk and absorption exceeds 40 hours.
Error mode is acknowledged/reset by pressing ”the MODE” button. The charger
restarts in the latest selected mode.
