8 Local Interfaces
8.1 Overview

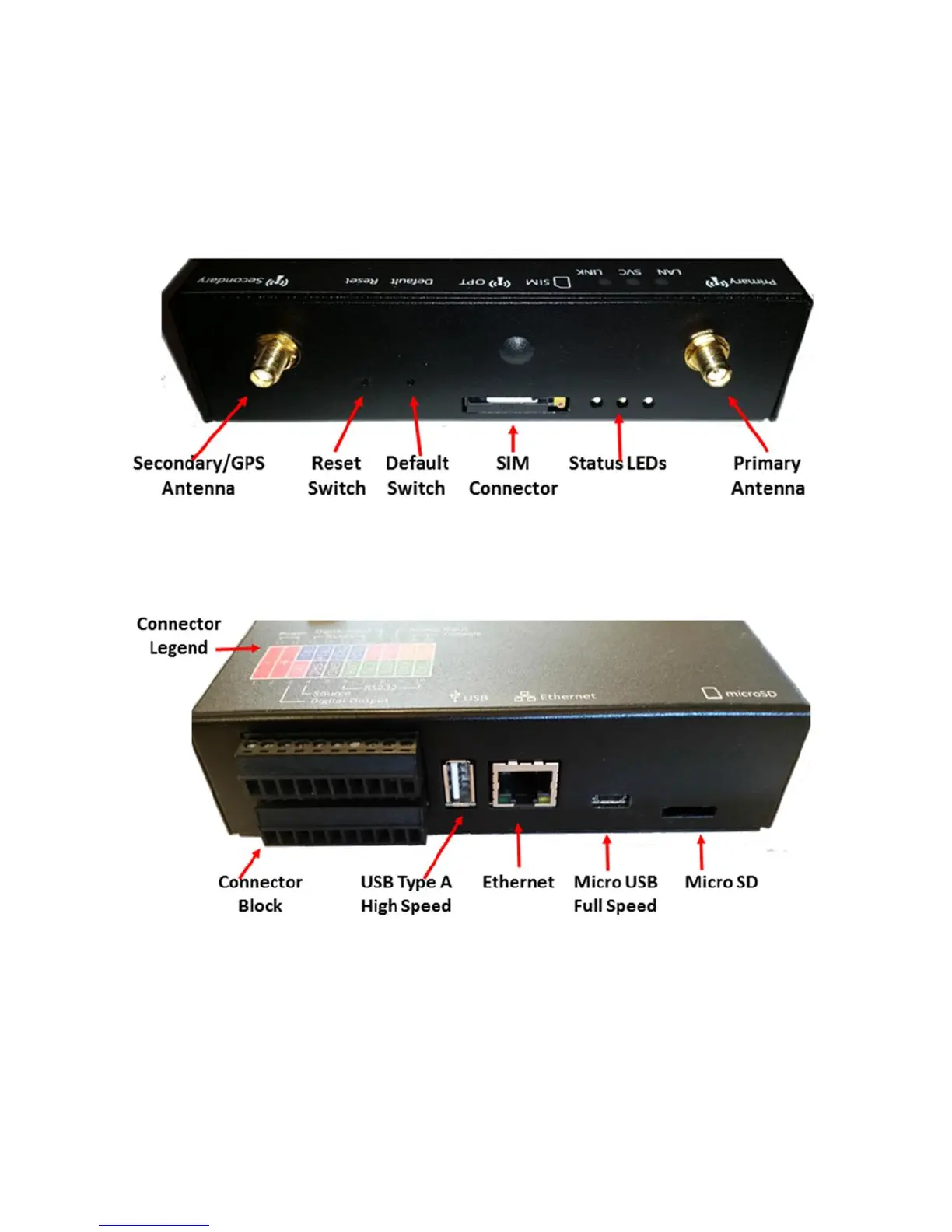

Figures 6 and 7 below show the location of local interfaces, indicators, and controls found on the Z4550 SkyRouter.
Figure 8
Figure 9
8.2 RS232/RS485 Ports
The RS232/RS485 screen is used to configure the physical (electrical and timing) characteristics of the serial ports. The
serial ports can be connected to the TCP/UDP PAD function for WAN transmission. See tN039 for details on Serial PAD
settings. Level 2 (link level) settings for this port are made using the RS232/RS485 Ports screen.
