CTM HS-328 - Assembly and Adjustment

Instruction BookletHS-328
8

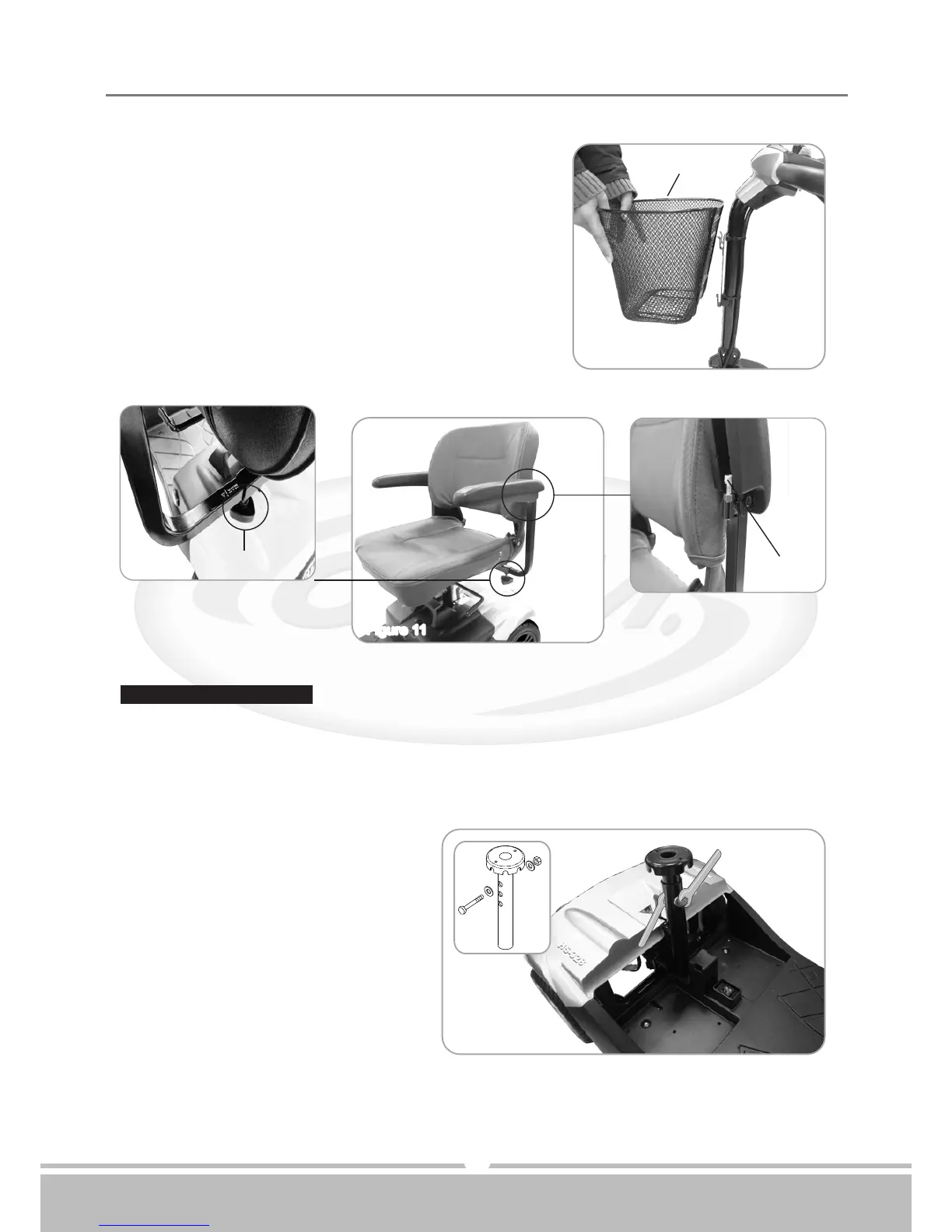

Basket assembling and disassembling :
1.Place the Front Basket (M) to the bracket on the tiller.
2.Remove the Front Basket (M) and place it aside.
Armrest assembling and angle adjustment :
1.Adjust armrest to most comfortable length, then lock
the Knob (N).
2.Adjust Screw (O) height to preferable armrest's angle
Seat Height adjustment :
1.Remove the seat, then screw, nut and washer from seat post.
2.Adjust seat post to desired height, then attached tightly with screw, nut and washers.
3.Assemble the seat back to its original position.
4.Seat height adjustability 520mm / 545mm / 570mm.
Figure 11
(O)
(N)
Figure 10
(M)
Figure 12
