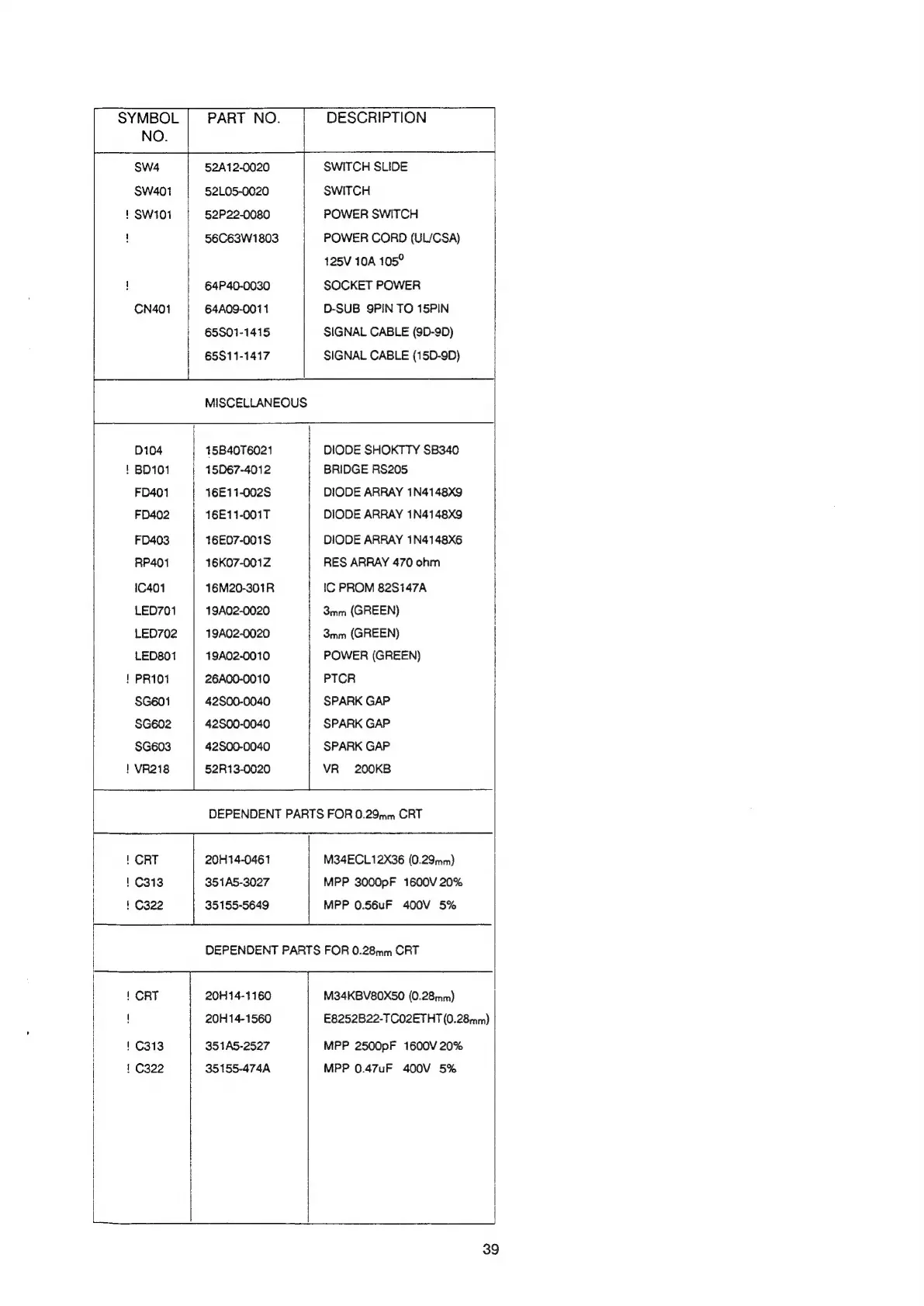

CTX CMS-3435 - Switch, Connector, Miscellaneous, CRT Parts

SYMBOL | PART NO. DESCRIPTION
NO.
sw4 52A12-0020 SWITCH SLIDE
swa4o1 52105-0020 SWITCH
1 SW101 52P22-0080 POWER SWITCH
56C63W1803 POWER CORD (UL/CSA)
125V 10A 105°
! 64P40-0030 SOCKET POWER
CN401 64A09-0011 D-SUB 9PIN TO 15PIN
65$01-1415 SIGNAL CABLE (9D-9D)
65811-1417 SIGNAL CABLE (15D-9D)
MISCELLANEOUS
D104 15B40T6021 DIODE SHOKTTY $B340
| BD101 15D67-4012 BRIDGE RS205
FD401 16E11-002S DIODE ARRAY 1N4148x9
FD402 16E11-001T DIODE ARRAY 1N4148x9
FD403 16E07-001S DIODE ARRAY 1N4148X6
RP401 16KO07-001Z RES ARRAY 470 ohm
1401 16M20-301R IC PROM 828147A
LED701 | 19A02-0020 3mm (GREEN)
LED702 | 19A02-0020 3mm (GREEN)
LED801 | 19A02-0010 POWER (GREEN)
! PR1O1 26A00-0010 PTCR
SG601 42$00-0040 SPARK GAP
$G602 4200-0040 SPARK GAP
SG603 4200-0040 SPARK GAP
| VR218 52R13-0020 VR 200KB
DEPENDENT PARTS FOR 0.29mm CRT
| CRT 20H14-0461 M34ECL12X36 (0.29mm) |
1 C313 351A5-3027 MPP 3000pF 1600V 20%
1 322 35155-5649 MPP 0.56uF 400V 5%
DEPENDENT PARTS FOR 0.28mm CRT
ts
| CRT 20H14-1160 M34KBV80X50 (0.28mm)
20H14-1560 E8252B22-TCO2ETHT (0.28mm)
| C313 351A5-2527 MPP 2500pF 1600V 20%
1 C322 35155-474A MPP 0.47uF 400V 5%
|
