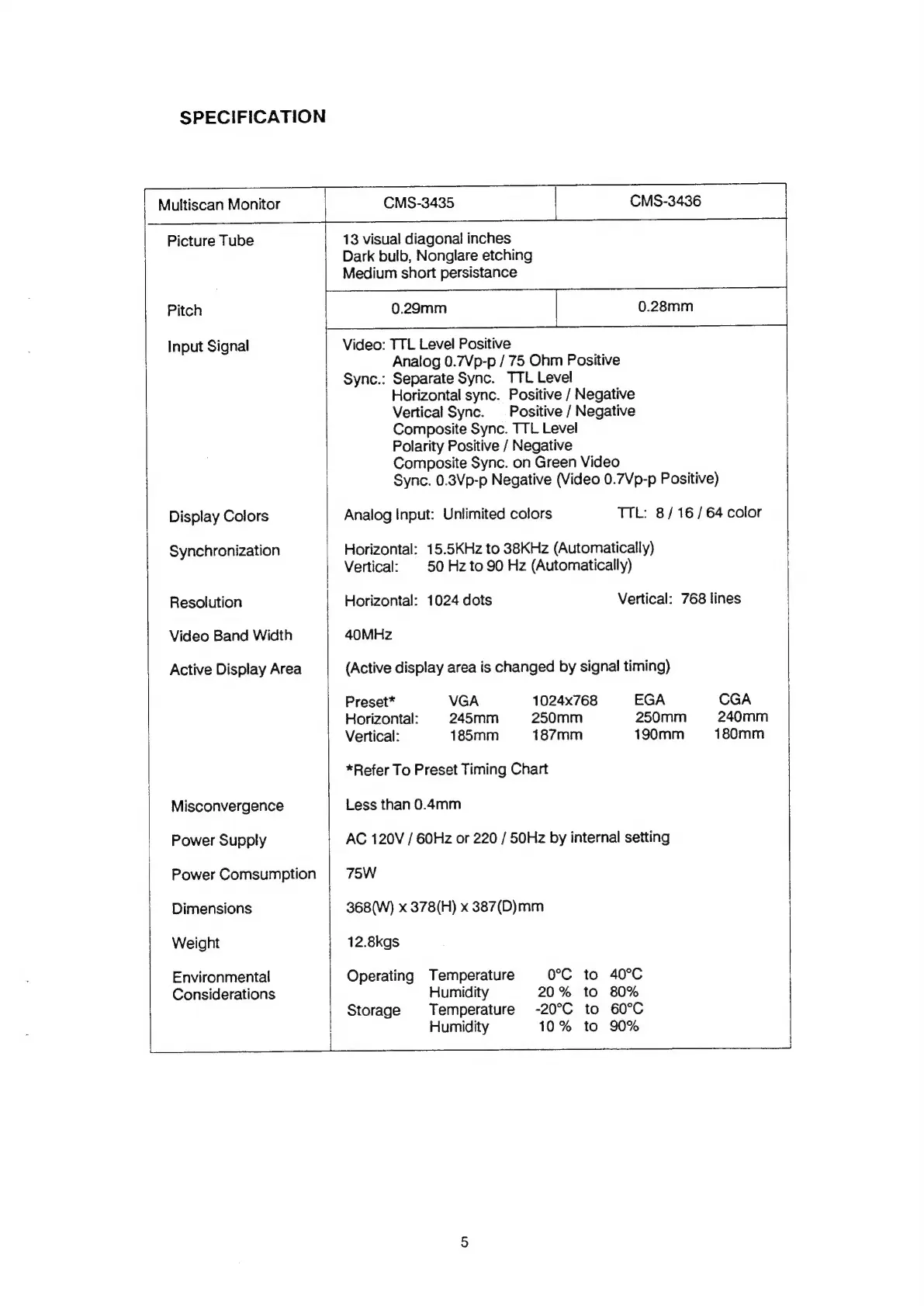

SPECIFICATION
Multiscan Monitor
Picture Tube
Pitch
Input Signal
Display Colors
Synchronization
Resolution
Video Band Width
Active Display Area
Misconvergence
Power Supply
Power Comsumption
Dimensions
Weight
Environmental
Considerations
0.29mm 0.28mm
CMS-3435 CMS-3436
13 visual diagonal inches
Dark bulb, Nonglare etching
Medium short persistance
————_—.__—__{
Video: TTL Level Positive
Analog 0.7Vp-p / 75 Ohm Positive
Sync.: Separate Sync. TTL Level
Horizontal sync. Positive / Negative
Vertical Sync. _ Positive / Negative
Composite Sync. TTL Level
Polarity Positive / Negative
Composite Sync. on Green Video
Sync. 0.3Vp-p Negative (Video 0.7Vp-p Positive)
Analog
Input:
Unlimited
colors
TTL:
8/16/64
color
Horizontal: 15.5KHz to 38KHz (Automatically)
Vertical: | 50 Hz to 90 Hz (Automatically)
Horizontal: 1024 dots Vertical: 768 lines
40MHz
(Active display area is changed by signal timing)
Preset* VGA 1024x768 EGA CGA
Horizontal: 245mm 250mm 250mm 240mm
Vertical:
185mm
187mm
190mm
180mm
*Refer To Preset Timing Chart
Less than 0.4mm
AC 120V / 60Hz or 220 / 50Hz by internal setting
75W
368(W) x 378(H) x 387(D)mm
12.8kgs
Operating Temperature o°c to 40°C
Humidity 20% to 80%
Storage Temperature -20°C to 60°C
Humidity 10% to 90%
