Section 2 Installation
This color monitor supports multiple operating platforms such as IBM
compatible, Macintosh family. This section gives the details on pin assignment
of the input connectors and the Preset Timing Chart of prevailing video
standards are included in this section for your reference.
2.1 Pin Assignment Table

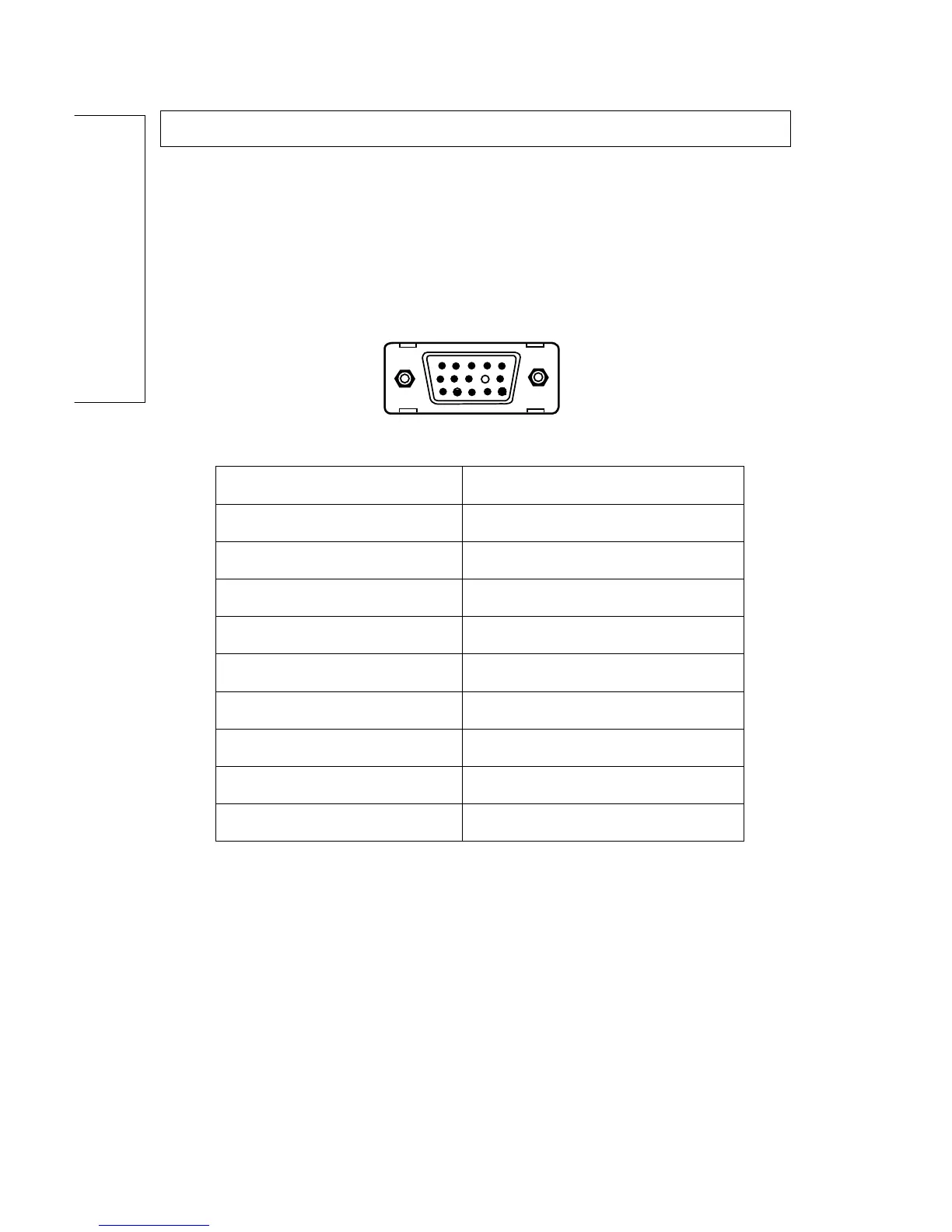

1. Pin Assignments of the Mini- D-15 Connector
Signal Mini D-SUB15 Pin
Red Video 1
Green Video 2
Blue video 3
Horizontal sync 13
Vertical Sync 14
Ground 4,5,6,7,8,10,11
No Connection 9
SDA (DDC) 12
SCL (DDC) 15
5
10
15
11
6
1
MALE MINI D-15
