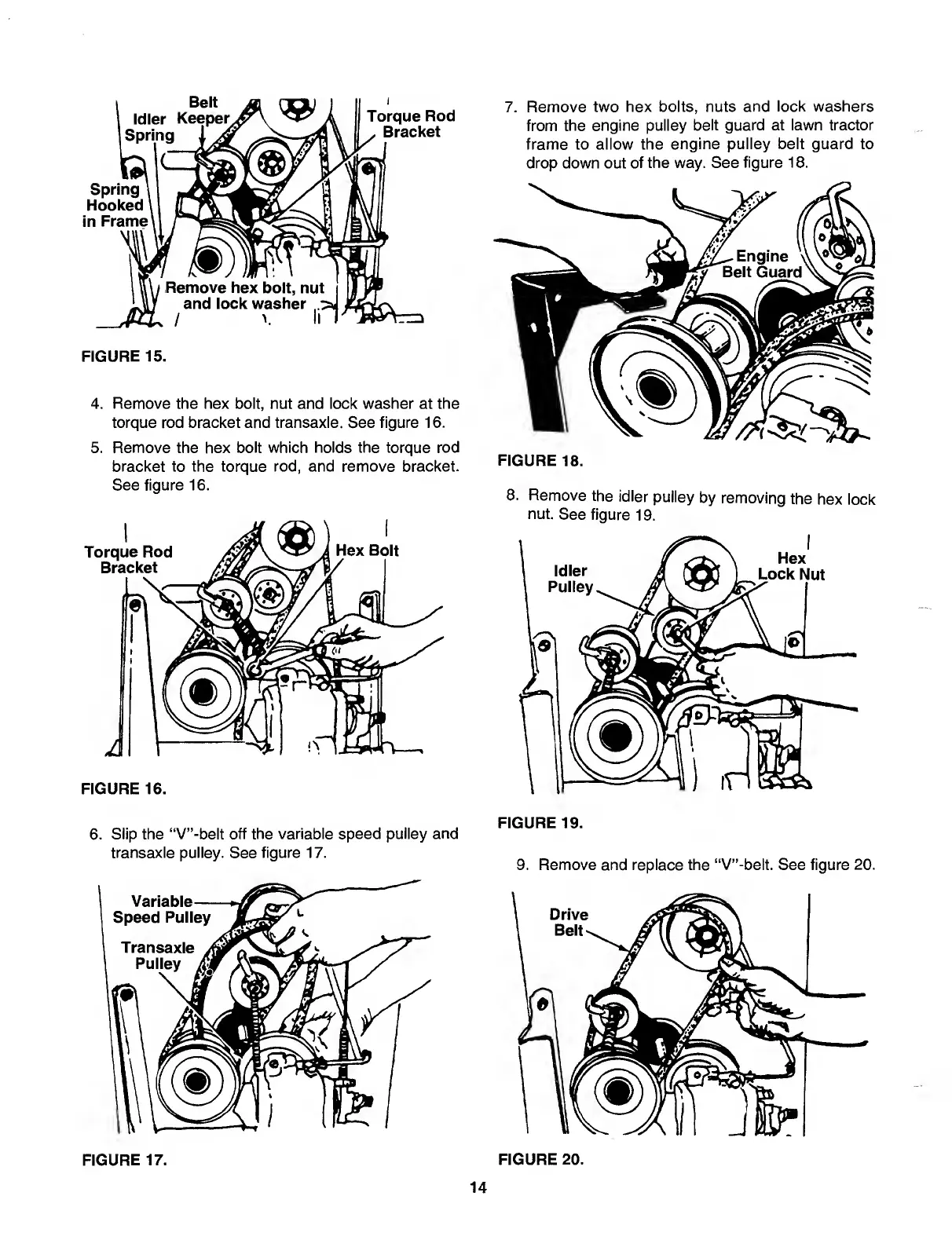

FIGURE 15.
4. Remove the hex bolt, nut and lock washer at the
torque rod bracket and transaxle. See figure 16.
5. Remove the hex bolt which holds the torque rod
bracket to the torque rod, and remove bracket.
See figure 16.
FIGURE 16.
6. S lip the “V”-belt off the variable speed pulley and
transaxle pulley. See figure 17.
7. R emove two hex bolts, nuts and lock washers
from the engine pulley belt guard at lawn tractor
frame to allow the engine pulley belt guard to
drop down out of the way. See figure 18.
FIGURE 18.
8. R emove the idler pulley by removing the hex lock
nut. See figure 19.
FIGURE 19.
9. Remove and replace the “V”-belt. See figure 20.
FIGURE 17.
14
FIGURE 20.
