Cub Cadet 1030 User Manual

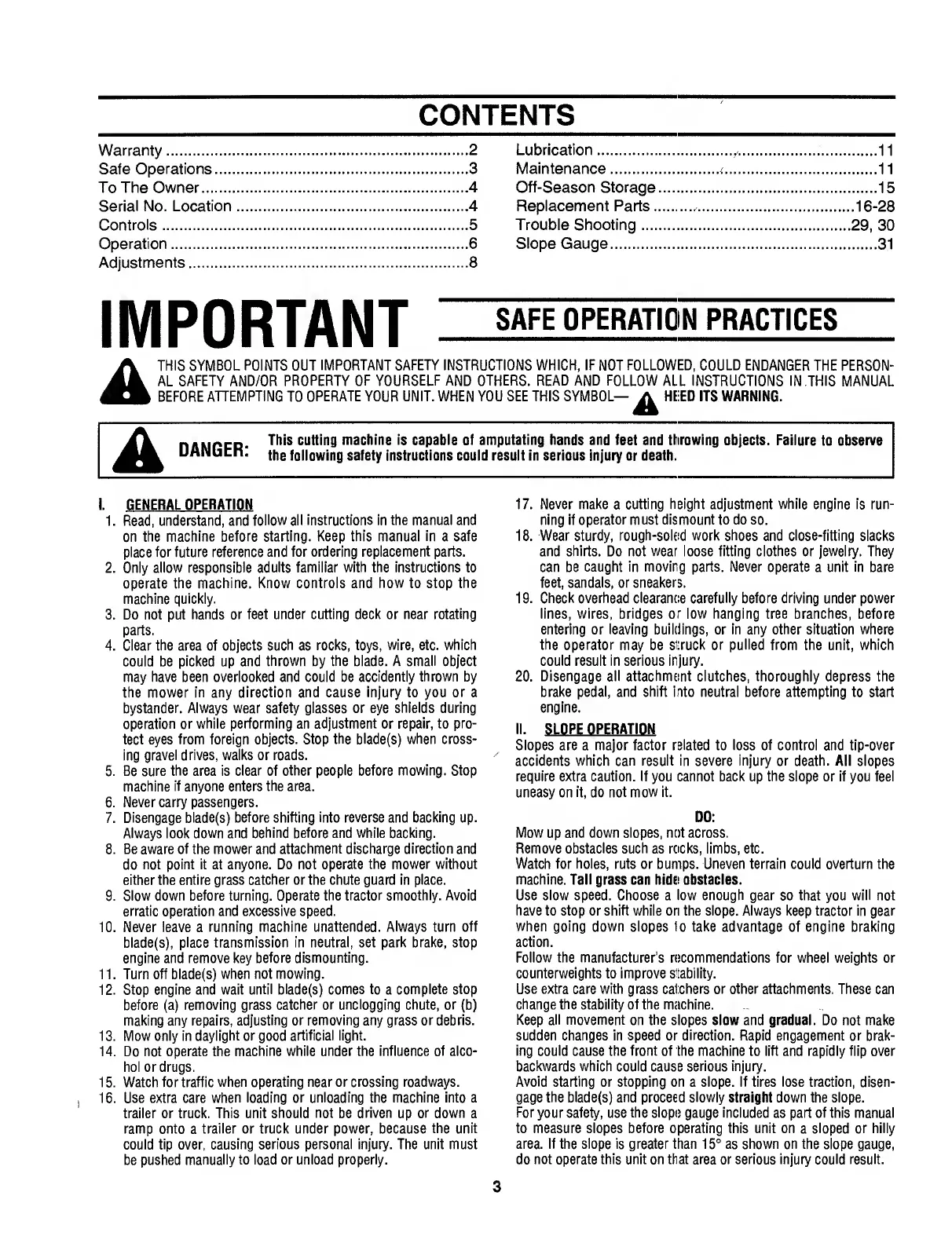

CONTENTS
Warranty.2
Safe Operations.3
To The Owner.4
Serial No. Location.4
Controls.5
Operation.6
Adjustments.8
Lubrication.^..11
Maintenance.^.11
Off-Season Storage.15
Replacement Parts...16-28
Trouble Shooting..29, 30
Slope Gauge.31
SAFE OPERATION PRACTICES
A THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS WHICH, IF NOT FOLLOWED, COULD ENDANGER THE PERSON¬
AL SAFETY AND/OR PROPERTY OF YOURSELF AND OTHERS. READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL
BEFORE AHEMPTING TO OPERATE YOUR UNIT. WHEN YOU SEE THIS SYMBOL— A HEED ITS WARNING.
nAKirPR- cutting machine is capable of amputating hands and feet and throwing objects. Faiiure to observe
UANutn: the foiiowing safety instructions could result in serious injury or death.
I. GENERAL OPERATION
1. Read, understand, and follow all instructions in the manual and
on the machine before starting. Keep this manual in a safe
place for future reference and for ordering replacement parts.
2. Only allow responsible adults familiar with the instructions to
operate the machine. Know controls and how to stop the
machine quickly.
3. Do not put hands or feet under cutting deck or near rotating
parts.
4. Clear the area of objects such as rocks, toys, wire, etc, which
could be picked up and thrown by the blade. A small object
may have been overlooked and could be accidently thrown by
the mower in any direction and cause injury to you or a
bystander. Always wear safety glasses or eye shields during
operation or while performing an adjustment or repair, to pro¬
tect eyes from foreign objects. Stop the blade(s) when cross¬
ing gravel drives, walks or roads.
5. Be sure the area is clear of other people before mowing. Stop
machine if anyone enters the area.
6. Never carry passengers.
7. Disengage blade(s) before shifting into reverse and backing up.
Always look down and behind before and whiie backing.
8. Be aware of the mower and attachment discharge direction and
do not point it at anyone. Do not operate the mower without
either the entire grass catcher or the chute guard in place.
9. Slow down before turning. Operate the tractor smoothly. Avoid
erratic operation and excessive speed.
10. N ever leave a running machine unattended. Always turn off
blade(s), place transmission in neutral, set park brake, stop
engine and remove key before dismounting.
II. Turn off blade(s) when not mowing.
12. Stop engine and wait until blade(s) comes to a complete stop
before (a) removing grass catcher or unclogging chute, or (b)
making any repairs, adjusting or removing any grass or debris.
13. Mow only in daylight or good artificial light.
14. Do not operate the machine while under the influence of alco¬
hol or drugs.
15. Watch for traffic when operating near or crossing roadways.
16. Use extra care when loading or unloading the machine into a
trailer or truck. This unit should not be driven up or down a
ramp onto a trailer or truck under power, because the unit
could tip over, causing serious personal injury. The unit must
be pushed manually to load or unload properly.
17. Never make a cutting height adjustment while engine is run¬
ning if operator must dismount to do so.
18. Wear sturdy, rough-soled work shoes and close-fitting slacks
and shirts. Do not wear loose fitting clothes or jewelry. They
can be caught in moving parts. Never operate a unit in bare
feet, sandals, or sneakers.
19. Check overhead clearance carefully before driving under power
lines, wires, bridges or low hanging tree branches, before
entering or leaving buildings, or in any other situation where
the operator may be struck or pulled from the unit, which
could result in serious injury.
20. Disengage all attachment clutches, thoroughly depress the
brake pedal, and shift into neutral before attempting to start
engine.
II. SLOPE OPERATION
Slopes are a major factor related to loss of control and tip-over
accidents which can result in severe injury or death. All slopes
require extra caution. If you cannot back up the slope or if you feel
uneasy on it, do not mow it.
DO:
Mow up and down slopes, not across.
Remove obstacles such as rocks, limbs, etc.
Watch for holes, ruts or bumps. Uneven terrain could overturn the
machine. Tall grass can hldo obstacles.
Use slow speed. Choose a low enough gear so that you will not
have to stop or shift while on the slope. Always keep tractor in gear
when going down slopes to take advantage of engine braking
action.
Follow the manufacturer’s recommendations for wheel weights or
counterweights to improve stability.
Use extra care with grass catchers or other attachments. These can
change the stability of the machine.
Keep ail movement on the slopes slow and gradual. Do not make
sudden changes in speed or direction. Rapid engagement or brak¬
ing could cause the front of the machine to lift and rapidly flip over
backwards which could cause serious injury.
Avoid starting or stopping on a slope. If tires lose traction, disen¬
gage the blade(s) and proceed slowly straight down the slope.
For your safety, use the slope gauge included as part of this manual
to measure slopes before operating this unit on a sloped or hilly
area. If the slope is greater than 15° as shown on the slope gauge,
do not operate this unit on that area or serious injury could result.
3
