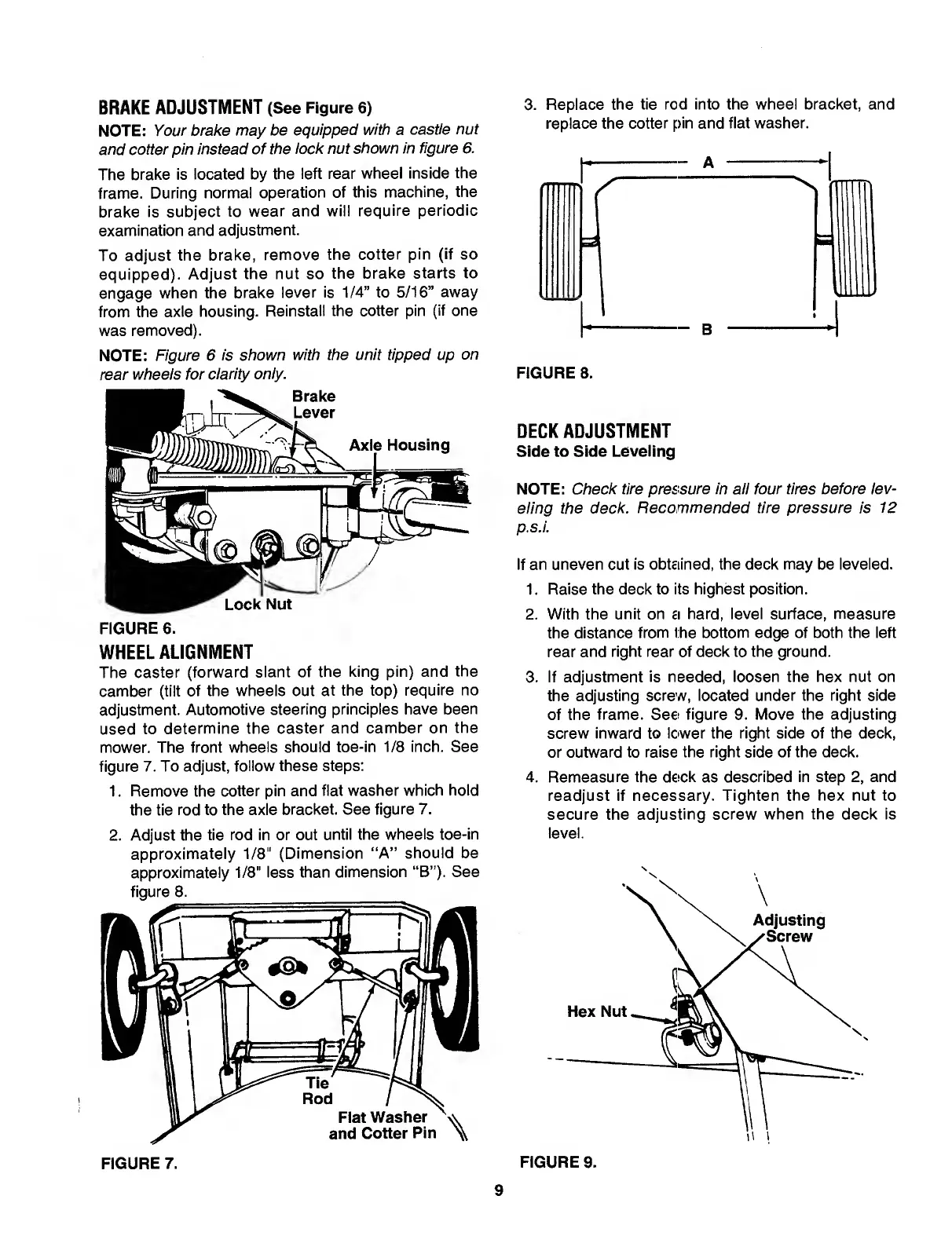

BRAKE
ADJUSTMENT
(See
Figure
6)
NOTE:
Your
brake
may
be
equipped
with
a
castle
nut
and
cotter
pin
instead
of
the
lock
nut
shown
in
figure
6.
The
brake
is
located
by
the
left
rear
wheel
inside
the
frame.
During
normal
operation
of
this
machine,
the
brake
is
subject
to
wear
and
will
require
periodic
examination
and
adjustment.
To
adjust
the
brake,
remove
the
cotter
pin
(if
so
equipped).
Adjust
the
nut
so
the
brake
starts
to
engage
when
the
brake
lever
is
1/4”
to
5/16”
away
from
the
axle
housing.
Reinstall
the
cotter
pin
(if
one
was
removed).
NOTE:
Figure
6
is
shown
with
the
unit
tipped
up
on
rear
wheels
for
clarity
only.
WHEEL
ALIGNMENT
The
caster
(forward
slant
of
the
king
pin)
and
the
camber
(tilt
of
the
wheels
out
at
the
top)
require
no
adjustment.
Automotive
steering
principles
have
been
used
to
determine
the
caster
and
camber
on
the
mower.
The
front
wheels
should
toe-in
1/8
inch.
See
figure
7.
To
adjust,
follow
these
steps:
1.
Remove
the
cotter
pin
and
flat
washer
which
hold
the
tie
rod
to
the
axle
bracket.
See
figure
7.
2.
Adjust
the
tie
rod
in
or
out
until
the
wheels
toe-in
approximately
1/8"
(Dimension
“A”
should
be
approximately
1/8"
less
than
dimension
“B”).
See
figure
8.
FIGURE
7.
3.
R
eplace
the
tie
rod
into
the
wheel
bracket,
and
replace
the
cotter
pin
and
flat
washer.
DECK
ADJUSTMENT
Side
to
Side
Leveling
NOTE:
Check
tire
pressure
in
all
four
tires
before
lev¬
eling
the
deck.
Recommended
tire
pressure
is
12
p.s.i.
If
an
uneven
cut
is
obtained,
the
deck
may
be
leveled.
1.
Raise
the
deck
to
its
highest
position.
2.
With
the
unit
on
a
hard,
level
surface,
measure
the
distance
from
the
bottom
edge
of
both
the
left
rear
and
right
rear
of
deck
to
the
ground.
3.
If
adjustment
is
needed,
loosen
the
hex
nut
on
the
adjusting
screw,
located
under
the
right
side
of
the
frame.
See
figure
9.
Move
the
adjusting
screw
inward
to
lower
the
right
side
of
the
deck,
or
outward
to
raise
the
right
side
of
the
deck.
4.
Remeasure
the
deck
as
described
in
step
2,
and
readjust
if
necessary.
Tighten
the
hex
nut
to
secure
the
adjusting
screw
when
the
deck
is
level.
