Cutting Deck Removal
To remove the cutting deck, proceed as follows:

position and engage the parking brake.
Lower the deck by moving the deck lift lever into the 2.
bottom notch on the right fender.


4.

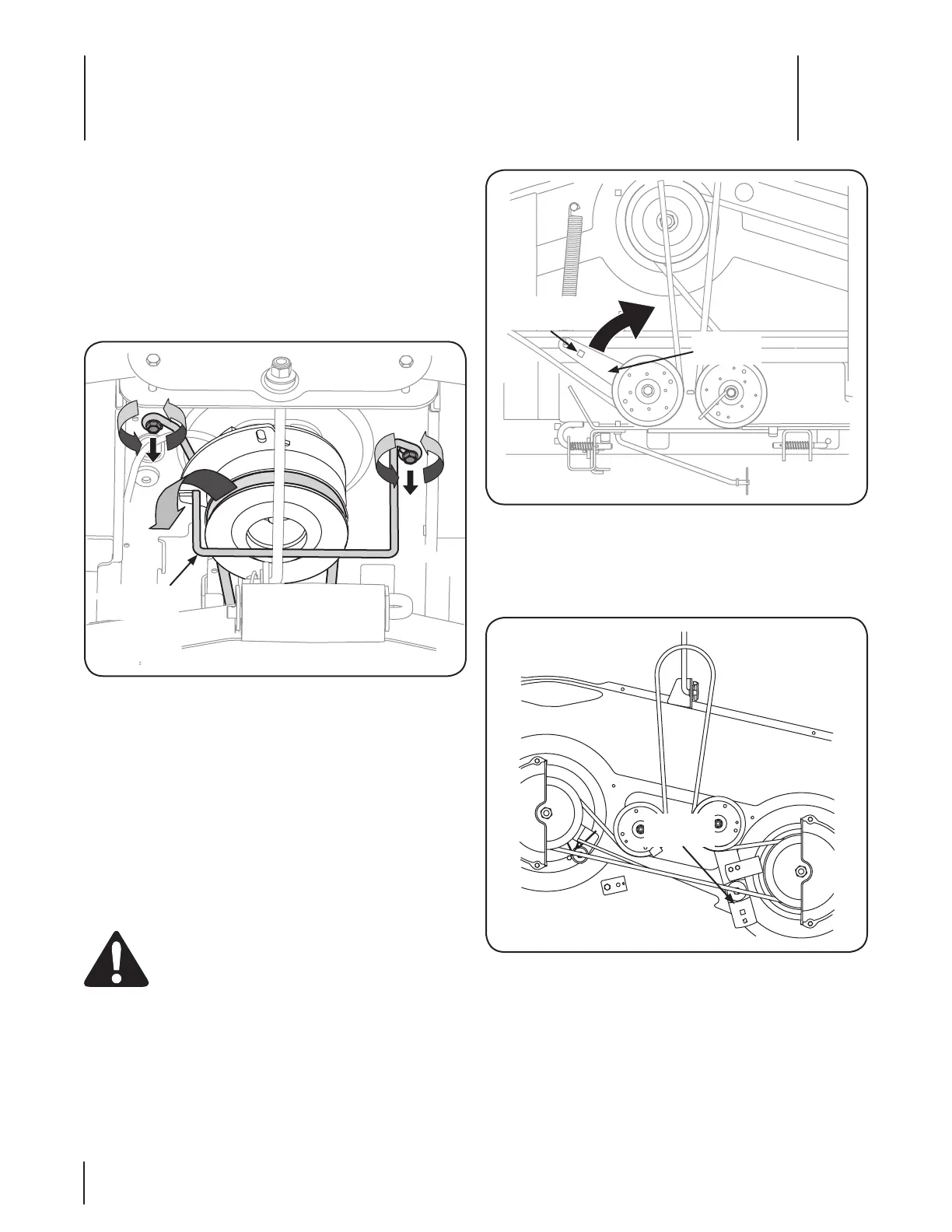

Remove the hex screws.a.
Pull the belt keeper rod to the right and down to b.
remove.
c.

NOTE: if there is too much tension on the belt

insert a ⁄ drive ratchet wrench (set to tighten) into the square
hole found in the left-hand deck idler bracket and pivot it toward

Avoid pinching injuries. Never place
your fingers on the idler spring or between the belt
and a pulley while removing the belt.
NOTE: If there is too much tension on the belt for it to be

a ⁄ drive ratchet wrench (set to loosen) into the square
hole found in the deck idler bracket and pivot it toward the

5. Looking at the cutting deck from the left side of the tractor,
locate the deck support pin on the rear left side of the
deck.






