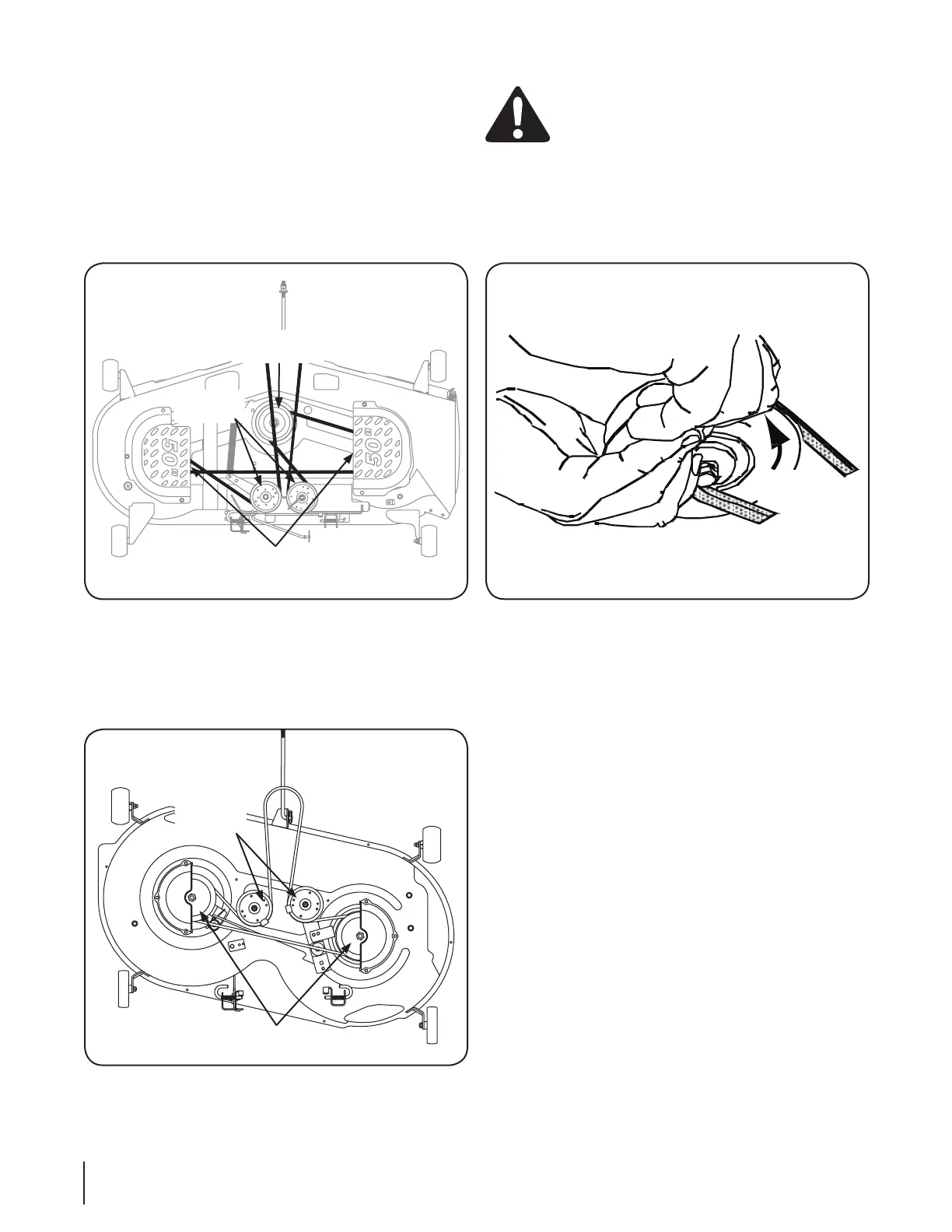

Loosen, but do not remove the belt keeper rod on the 
pulley located near the back of the deck. See Fig. 7-9.
Carefully remove the deck belt from around the three 4.
spindle pulleys and the two deck idler pulleys.
5. To place the new belt, begin by routing the
belt around the two outer spindle pulleys, then around the

Then route the belt around the two deck idler pulleys as 6.

7. To place the new belt begin by routing the
belt around the two outer spindle pulleys as shown in Fig.

Then route the belt around the two deck idler pulleys as 8.

Reinstall the belt keeper rod loosened earlier.9.
CAUTION: Failure to reinstall the belt keeper rod

system.
Remount the belt guards removed earlier.
Re-install the deck making sure the belt remains routed 
around the pulleys as instructed.
Pull the right side of the belt and place the narrow V side of 

While holding the belt and pulley together, rotate the 
pulley to the left. Continue holding and rotating the pulley

















28 se c t i O n 7— se r v i c e
