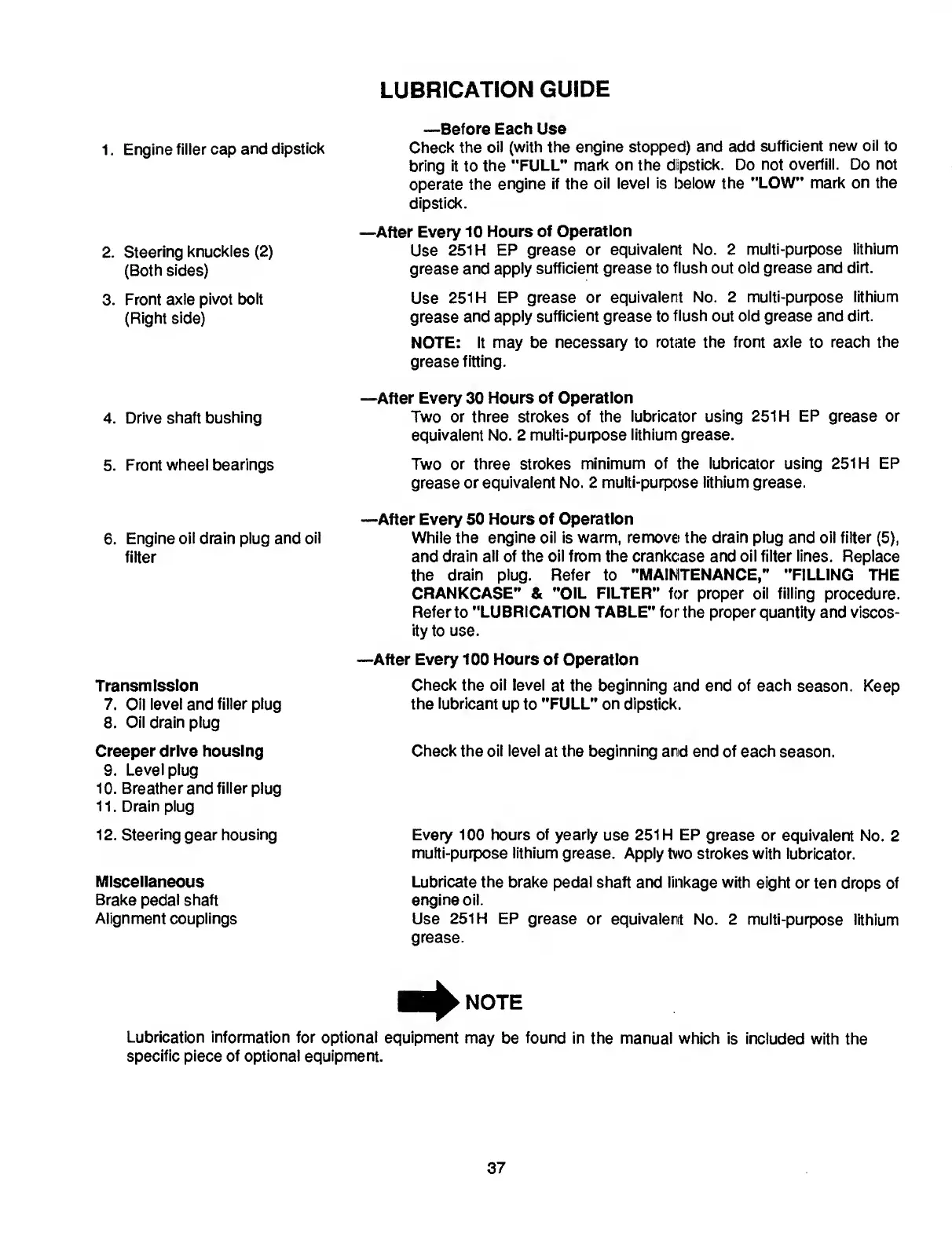

LUBRICATION
GUIDE
1.
Engine
filler
cap
and
dipstick
2.
Steering
knuckles
(2)
(Both
sides)
3.
Front
axle
pivot
bolt
(Right
side)
—Before
Each
Use
Check
the
oil
(with
the
engine
stopped)
and
add
sufficient
new
oil
to
bring
it
to
the
"FULL"
mark
on
the
dipstick.
Do
not
overfill.
Do
not
operate
the
engine
if
the
oil
level
is
below
the
"LOW"
mark
on
the
dipstick.
—After
Every
10
Hours
of
Operation
Use
251H
EP
grease
or
equivalent
No.
2
multi-purpose
lithium
grease
and
apply
sufficient
grease
to
flush
out
old
grease
and
dirt.
Use
251H
EP
grease
or
equivalent
No.
2
multi-purpose
lithium
grease
and
apply
sufficient
grease
to
flush
out
old
grease
and
dirt.
NOTE:
It
may
be
necessary
to
rotate
the
front
axle
to
reach
the
grease
fitting.
4.
Drive
shaft
bushing
5.
Front
wheel
bearings
—After
Every
30
Hours
of
Operation
Two
or
three
strokes
of
the
lubricator
using
251H
EP
grease
or
equivalent
No.
2
multi-purpose
lithium
grease.
Two
or
three
strokes
minimum
of
the
lubricator
using
251H
EP
grease
or
equivalent
No.
2
multi-purpose
lithium
grease.
6.
Engine
oil
drain
plug
and
oil
filter
Transmission
7.
Oil
level
and
filler
plug
8.
Oil
drain
plug
Creeper
drive
housing
9.
Level
plug
10.
Breather
and
filler
plug
11.
Drain
plug
12.
Steering
gear
housing
Miscellaneous
Brake
pedal
shaft
Alignment
couplings
—After
Every
50
Hours
of
Operation
While
the
engine
oil
is
warm,
remove
the
drain
plug
and
oil
filter
(5),
and
drain
all
of
the
oil
from
the
crankcase
and
oil
filter
lines.
Replace
the
drain
plug.
Refer
to
"MAINTENANCE,"
"FILLING
THE
CRANKCASE"
&
"OIL
FILTER"
for
proper
oil
filling
procedure.
Refer
to
"LUBRICATION
TABLE"
for
the
proper
quantity
and
viscos¬
ity
to
use.
—After
Every
100
Hours
of
Operation
Check
the
oil
level
at
the
beginning
and
end
of
each
season.
Keep
the
lubricant
up
to
"FULL"
on
dipstick.
Check
the
oil
level
at
the
beginning
and
end
of
each
season.
Every
100
hours
of
yearly
use
251H
EP
grease
or
equivalent
No.
2
multi-purpose
lithium
grease.
Apply
two
strokes
with
lubricator.
Lubricate
the
brake
pedal
shaft
and
linkage
with
eight
or
ten
drops
of
engine
oil.
Use
251H
EP
grease
or
equivalent
No.
2
multi-purpose
lithium
grease.
NOTE
Lubrication
information
for
optional
equipment
may
be
found
in
the
manual
which
is
included
with
the
specific
piece
of
optional
equipment.
