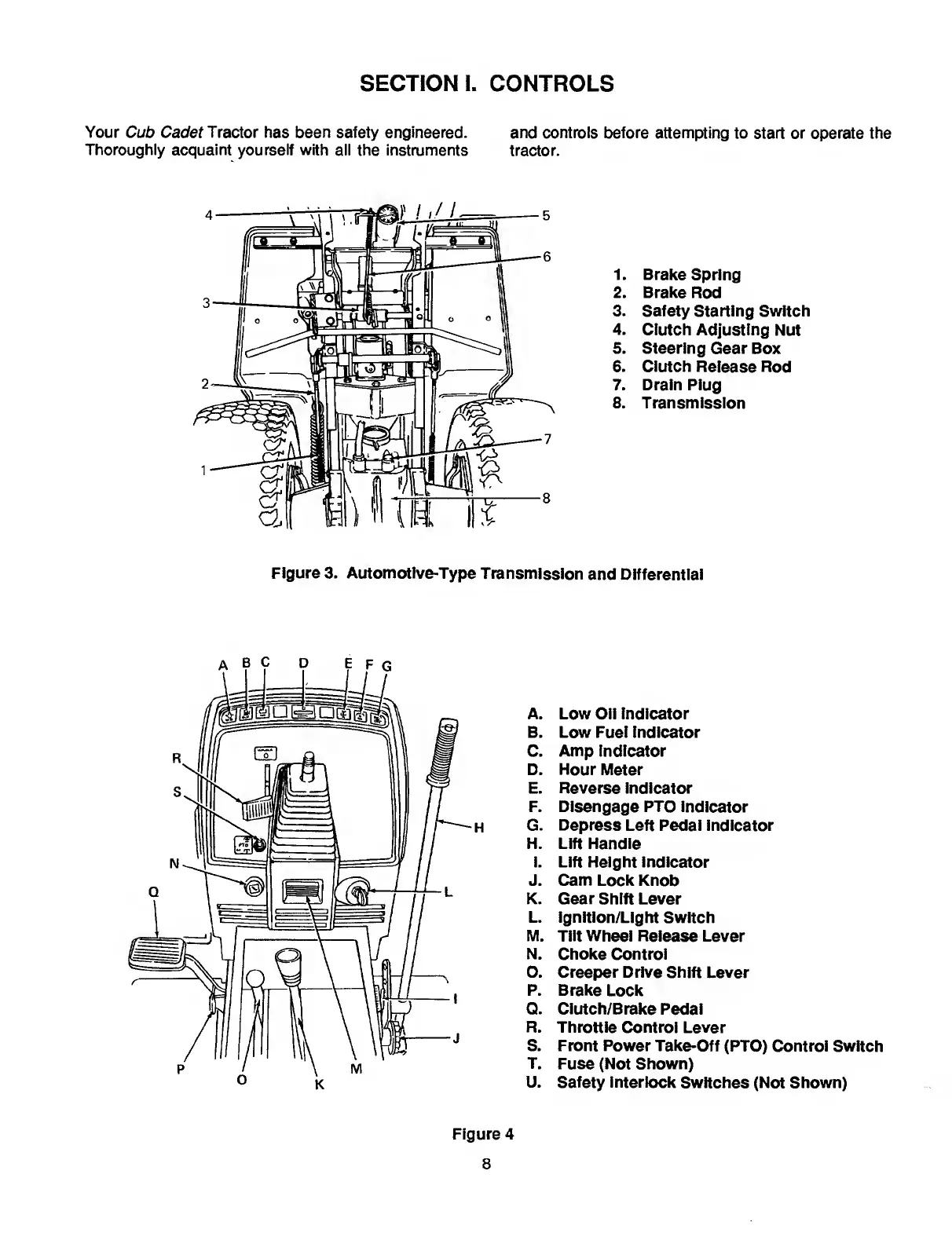

SECTION I. CONTROLS
Your Cub Cadet Tractor has been safety engineered. and controls before attempting to start or operate the
Thoroughly acquaint yourself with all the instruments tractor.
1. Brake Spring
2. Brake Rod
3. Safety Starting Switch
4. Clutch Adjusting Nut
5. Steering Gear Box
6. Clutch Release Rod
7. Drain Plug
8. Transmission
Figure 3. Automotive-Type Transmission and Differential
A. Low Oil Indicator
B. Low Fuel Indicator
C. Amp Indicator
D. Hour Meter
E. Reverse Indicator
F. Disengage PTO Indicator
G. Depress Left Pedal Indicator
H. Lift Handle
I. Lift Height Indicator
J. Cam Lock Knob
K. Gear Shift Lever
L. Ignition/Light Switch
M. Tilt Wheel Release Lever
N. Choke Control
O. Creeper Drive Shift Lever
P. Brake Lock
Q. Clutch/Brake Pedal
R. Throttle Control Lever
S. Front Power Take-Off (PTO) Control Switch
T. Fuse (Not Shown)
U. Safety Interlock Switches (Not Shown)
Figure 4
