Cub Cadet 1535 User Manual

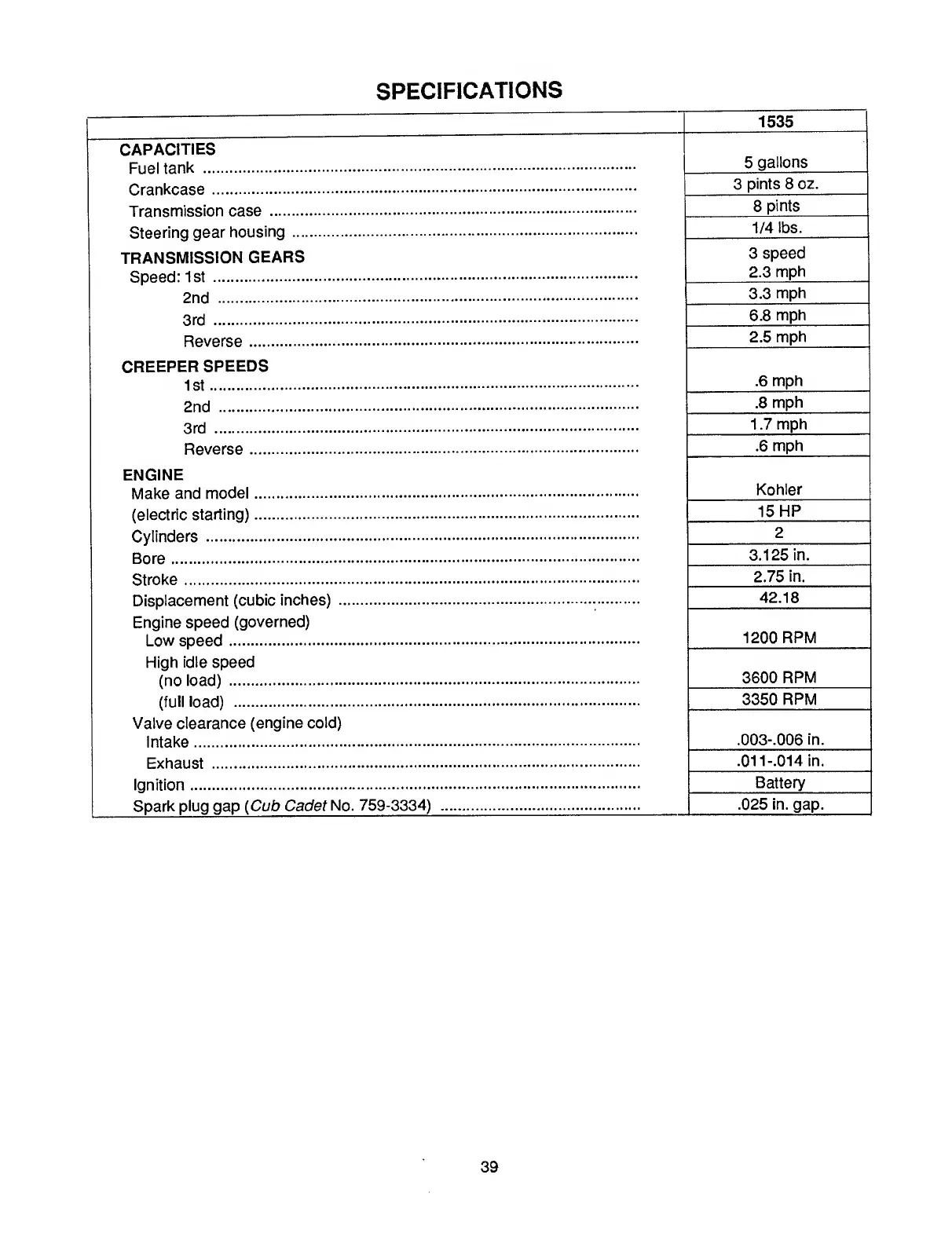

SPECIFICATIONS
1535
CAPACITIES
FiipI tank .
5 gallons
Crankcase .
3 pints 8 oz.
Transmissinn case .
8 pints
Steerinn near hotisino .
1/4 lbs.
TRANSMISSION GEARS
Snepd’ 1 st .
3 speed
2.3 mph
2nd .
3.3 mph
3rd .
6.8 mph
Reverse .
2.5 mph
CREEPER SPEEDS
1 st.
.6 mph
2nd .
.8 mph
3rd .
1.7 mph
Reverse.
.6 mph
ENGINE
Make and model.
(electric starting).
Cylinders .
Bore.
Kohler
15 HP
2
3.125 in.
Stroke.
2.75 in.
Displacement (cubic inches) ...
Engine speed (governed)
Low speed.
High idle speed
(no load) .
(full load) .
Valve clearance (engine cold)
Intake.
Exhaust .
Ignition.
Spark plug gap ( C ub Cadet No. 759-3334) .
42.18
1200 RPM
3600 RPM
3350 RPM
.003-.006 in.
.011-.014 in.
Battery
.025 in. gap.
39
