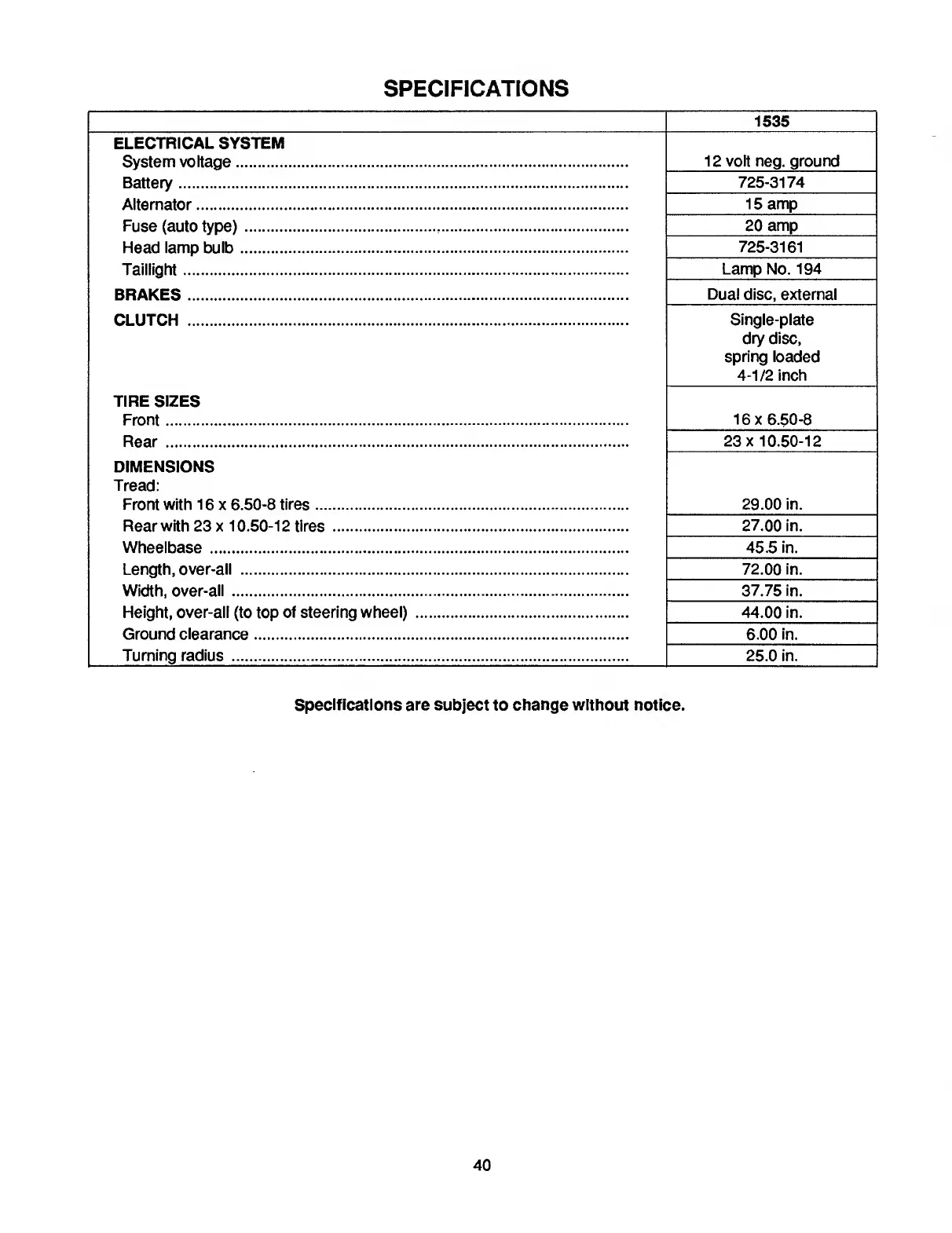

SPECIFICATIONS
1535
ELECTRICAL SYSTEM
System voltage.
12 volt neg. ground
Battery.
725-3174
Alternator.
15 amp
Fuse (auto type).
20 amp
Head lamp bulb.
725-3161
Taillight.
Lamp No. 194
BRAKES .
Dual disc, external
CLUTCH .
Single-plate
dry disc,
spring loaded
4-1/2 inch
TIRE SIZES
Front.
16x6.50-8
Rear.
23 x 10.50-12
DIMENSIONS
Tread:
Front with 16 x 6.50-8 tires. 29.00 in.
Rear with 23 x 10.50-12 tires. 27.00 in.
Wheelbase. 45.5 in.
Length, over-all . 72.00 in.
Width, over-all . 37.75 in.
Height, over-all (to top of steering wheel) . 44.00 in.
Ground clearance. 6.00 in.
Turning radius . 25.0 in.
Specifications are subject to change without notice.
