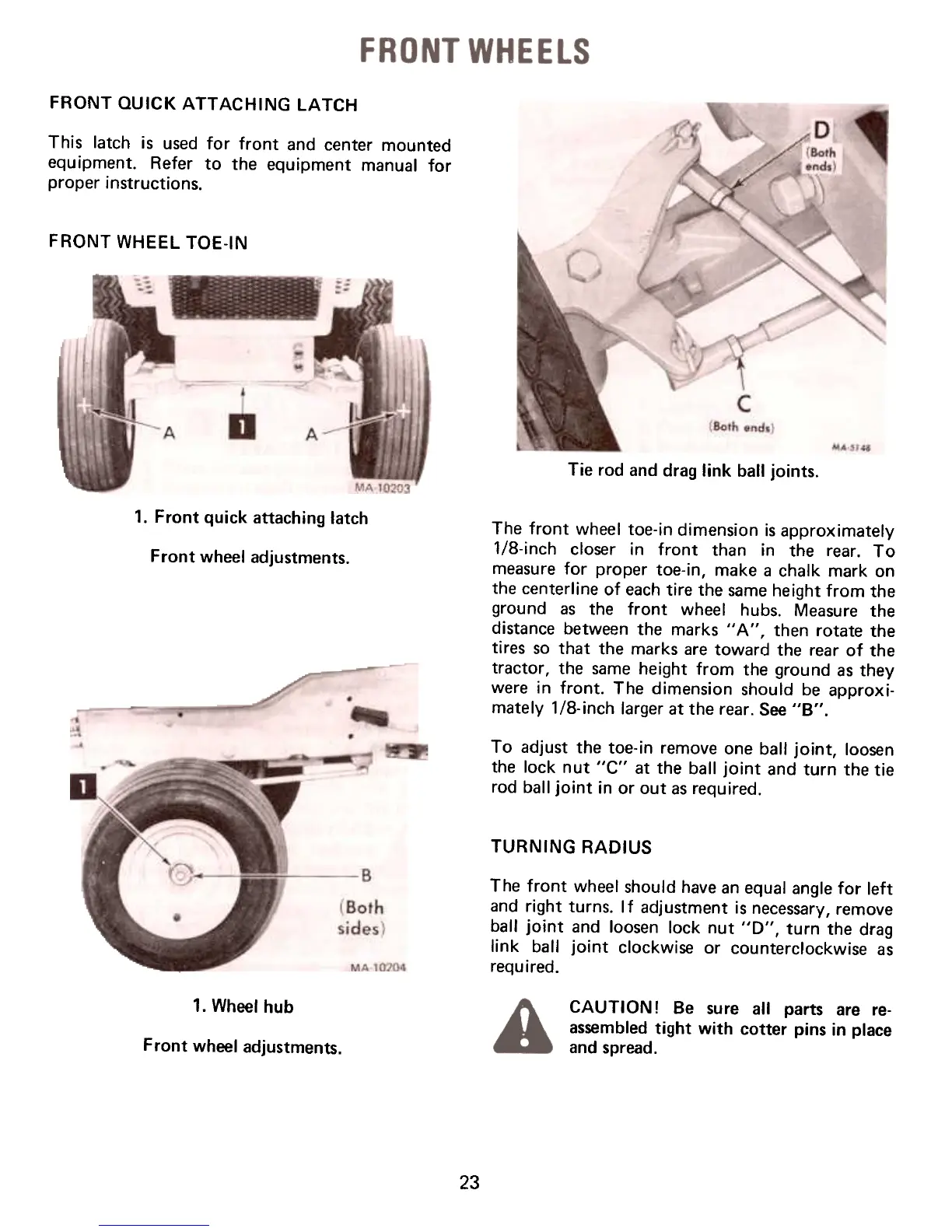

FRONT QUICK ATTACHING LATCH
This
latch is used for front and center mountedequipment.
Refer to the equipment manual for
proper instructions.
FRONT WHEEL TOE-IN
Tie
rod and drag link ball joints.
1. Front quick attaching latch
The front wheel toe-in dimension is approximately
liB-inch closer in front than in the rear. To
measure for proper toe-in, make a chalk mark on
the centerline of each tire the same height from the
ground as the front wheel hubs. Measure the
distance between the marks "A", then rotate the
tires so that the marks are toward the rear of the
tractor, the same height from the grou nd as they
were in front. The dimension should be approxi-
mately liB-inch larger at the rear. See "B".
Front wheel adjustments.
To
adjust the toe-in remove one ball joint, loosen
the lock nut "c" at the ball joint and turn the tie
rod ball joint in or out as required.
TURNING
RADIUS
The front wheel should have an equal angle for left
and right turns. I f adjustment is necessary, remove
ball joint and loosen lock nut "0", turn the drag
link ball joint clockwise or counterclockwise as
requ ired.
1. Wheel hub
CAUTION!
Be sure all parts are re-
assembled tight with cotter pins in placeand
spread.
Front wheel adjustments.
23
