19

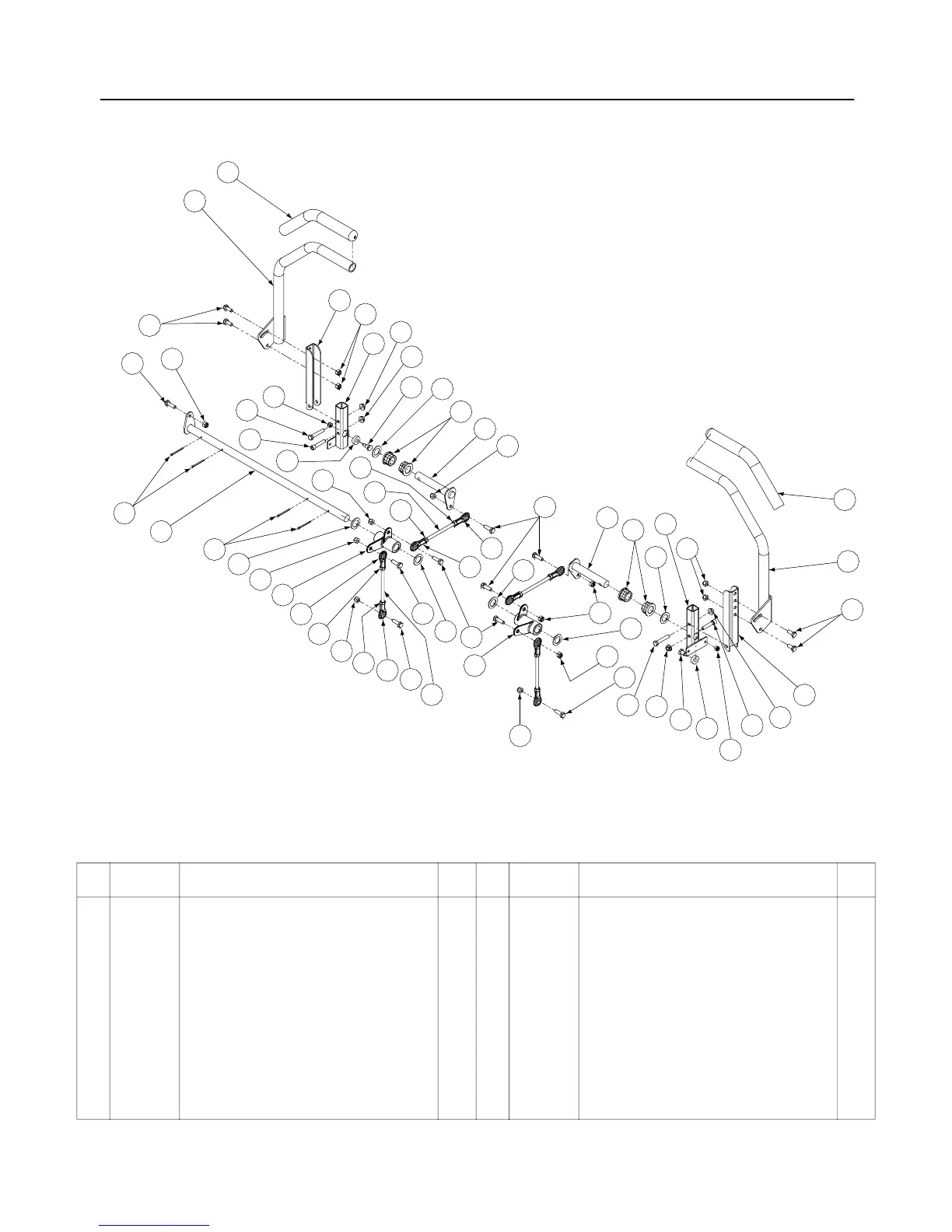

Steering Assembly
-Figure 10 and Parts List
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 00006129 Hex Cap Screw, 5/16-18 x 1-3/4 2 14 01008432 Bellcrank Steering Shaft Assembly 1
2 00012165 Nut, 5/16-18, Nylock 13 15 01008840 Steering Bellcrank Assembly Left Hand 1
3 01000635 Nut, 5/16-18, Lock 4 16 01008841 Steering Bellcrank Assembly Right Hand 1
4 00012167 Hex Nut, 5/16-24 4 17 01008425 Steering Handle Assembly Left Hand 1
5 00012179 Hex Cap Screw, 5/16-18 x 3/4 4 18 01008426 Steering Handle Assembly Right Hand 1
6 01008600 Capscrew, 5/16-18 x 1.50, Socket Head 2 19 01008165 Steering Pivot Bracket 2
7 00013092 Hex Cap Screw, 5/16-18 x 1.0 9 20 01008410 Rod End, 5/16, Right Hand 4
8 00014081 Nut, 1/4-28, SS, Nylon Insert 2 21 01008551 Rod End, 5/16, Left Hand 4
9 00071691 Control Rod Spacer 2 22 01008552 Lap Bar Grip 2
10 01001919 Shoulder Screw, 1/4-28 2 23 01008458 Pivot Bracket Weldment 2
11 00003107 Cotter Pin, .125 Dia. x 1.0 4 24 01008576 Hex Nut, 5/16-24, Left Hand 4
12 01008433 Steering Input Shaft Assembly 2 25 736-0287 Flat Washer, .793 ID x 1.24 OD x .060 6
13 01008149 Steering Link Rod 4 26 741-0598 Hex Flange Bearing, .752 ID 4
22
17
5
2
7
11
14
11
25
A
B
2
2
15
24
21
4
20
7
7
13
2
16
7
25
7
2
2
25
1
3
10
9
8
6
3
19
5
18
22
2
23
25
26
12
25
4
20
7
A
B
8
1
6
2
21
12
26
25
3
3
23
2
19
9
10
2
24
13
GD: 01008108-P00
