20

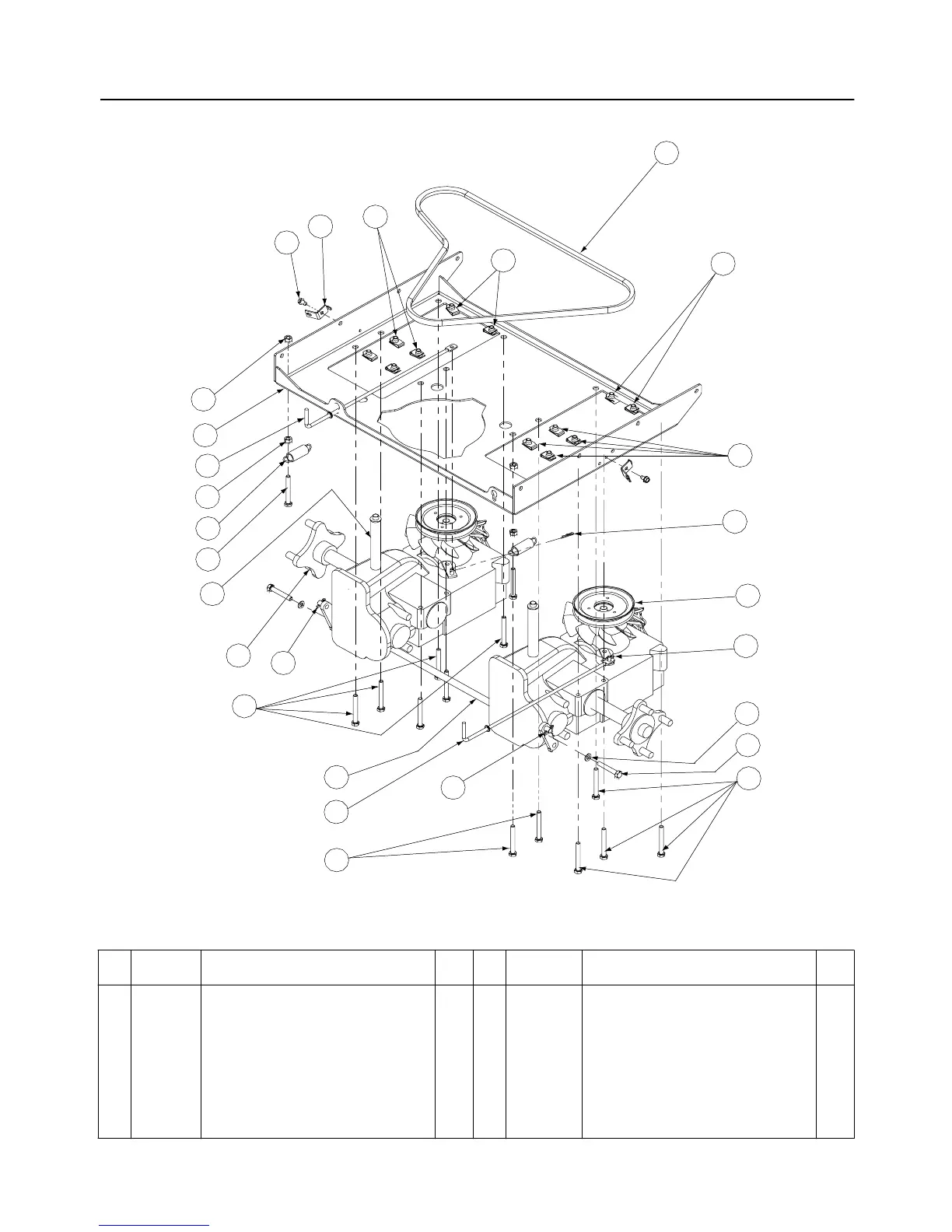

Drive Train Assembly
- Figure 11 and Parts List
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 00013198 Hex Cap Screw, 5/16-18 x 2.0 2 10 01008380 Pump Rod 2
2 00012169 Flat Washer, .320 ID x .591 OD 2 11 01008414 Transmission Brace Tube 1
3 01002771 Cotter Pin, .072 x 1.12 Lg 4 12 00012166 Nut, 5/16-18 4
4 01003563 U-Nut, 5/16-18 12 13 01000628 Screw, 1/4-20 x 1/2 2
5 01007122 Hex Cap Screw, 5/16-18 x 2.5 14 14 01008758 Extension Spring, 1.0 OD x 5.000 2
6 01008192 IZT Transmission, Left Hand 1 15 01008611 Brake Cable Mounting Bracket 2
7 01008193 IZT Transmission, Right Hand 1 16 HG-51401 Hose, 1/2 Dia. x 4" Long includes: 1
8 01008349 V-Belt, 56.00 1 HG-70110 O-Ring Fitting Assembly 1
9 01008461 Transmission Mounting Bracket 1 HG-70109 Cap Vent Assembly 1
8
4
4
3
7
3
5
5
10
5
6
10
9
4
4
12
14
5
12
11
2
1
15
13
3
3
16
GD: 01008106-2/11/03
