Cub Cadet 18.5HP Z-Force 42

21

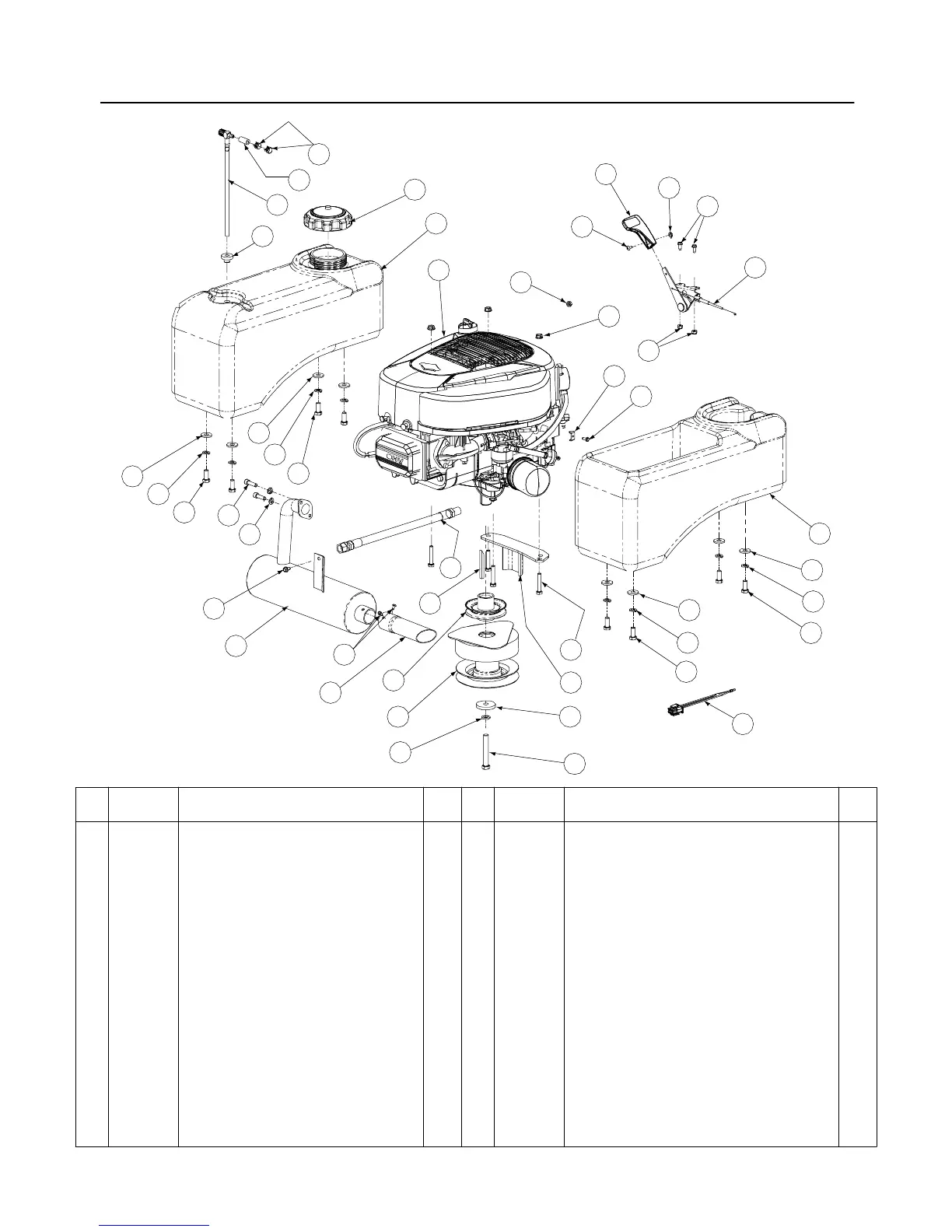

18.5HP Briggs Engine Assembly
- Figure 12 and Parts List
Ref
No Part No. Description Qty.
Ref
No Part No. Description Qty.
1 00006129 Hex Head Cap Screw, 5/16-18 x 1-3/4 4 20 01008808 Electric PTO Engine Pulley 1
2 00012157 Lock Washer, 3/8 Zinc 8 21 01009770 18.5HP Briggs Engine 1
3 -- Hose, 1/4" Fuel Line 1 22 01009837 Briggs Muffler 1
4 00012235 Clamp, Union 2 23 01008544 Ogura JD08 Electric Clutch 1
5 01003272 Throttle Control Cable 1 24 01008640 Clutch Retainer Assembly 1
6 00014608 Lock Nut, Nylon Insert, 10-32 2 25 01000811 Screw, 8-32 x .375, Hex Washer 2
7 01000628 Self Tapping Screw, 1/4-20 x 1/2 1 26 01007533 Key, 1/4 x 1/4 x 2.75 1
8 01000069 Fuel Cap 1 27 01008623 Exhaust Pipe 1
9 01000281 Fuel Tank Groment 1 28 00012168 Lock Washer, 5/16 2
10 01000368 Hex Cap Screw, 3/8-16 x .88 8 29 01009142 Socket Head Cap Screw, 5/16-18 x 1.00 2
11 01000389 Lock Washer, 7/16 1 30 01009826 Harness Adaptor 1
12 01000635 Lock Nut, Hex Flange, 5/16-18 4 31 00023041 Starter Side Lock Nut 1/4-20 1
13 01008637 Hex Cap Screw, 7/16-20 x 4.0 1 32 01008531 Screw, #10-32 x 0.500 3
14 01000723 Flat Washer, .406 ID x 1.0 OD x .105 8 33 01002070 Throttle Cable Clamp 1
15 01003116 Fuel Pickup Fitting 1 34 01001811 HourMeter Harness (not shown) 1
16 01004350 Fuel Tank 1 35 00060056 Nut, 8-32 1
17 01003269 Flat Washer, 7/16 ID x 1.75 OD x .250 1 36 01000721 Machine Screw, 8-32 x .375 1
18 01003283 Oil Drain Extension Hose 1 37 01004004 Throttle Control knob 1
19 01008138 Utility Bin 1
19
14
2
10
14
2
10
30
1
24
17
13
20
23
11
18
25
27
26
22
10
2
14
10
2
14
28
29
7
4
3
15
9
8
16
21
12
31
33
32
5
32
6
35
37
36
GD: 01009715-P02
