25

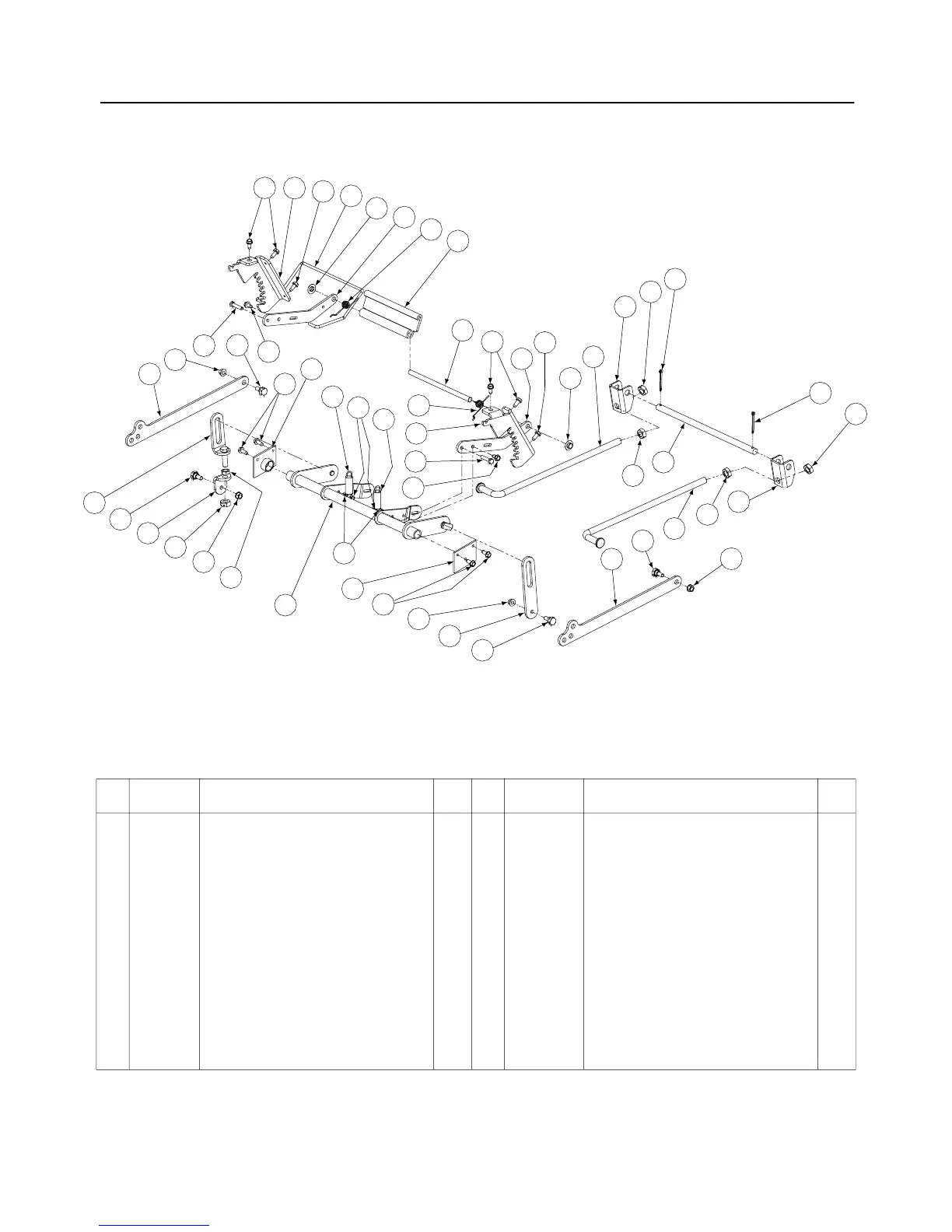

Lift Assembly
- Figure 16
and Parts List
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 00012382 Hex Cap Screw, 5/16-18 x 1-1/2 2 16 01008183 Lower Lift Bracket, Left Hand 1
2 00022547 Nut, 5/16-18, Center Lock 2 17 01008186 Link Lift PLate, Right Hand 1
3 00022560 Nut, 3/8-16, Hex Flange Lock 4 18 01008187 Cap Lift Push Nut 2
4 00012166 Hex Nut, 5/16-18 2 19 01008382 Front Lift Rod 2
5 01008620 Self Tapping Screw, 5/16-18 x 3/4 12 20 01008188 Lift Index Weldment, Left Hand 1
6 00060018 Cotter Pin, 3/16 x 1-1 2 21 01008189 Lift Index Weldment, Right Hand 1
7 01008139 Deck Lift Handle 1 22 01008465 Rear Lift Arm 2
8 01008140 Deck Lift Spring, Left Hand 1 23 01008557 Front Lift Rod 1
9 01008141 Deck Lift Spring, Right Hand 1 24 01008573 Lift Spring 2
10 01008477 Lift Hub Assembly 2 25 01008638 Front Lift Bracket (44" & 48") 2
11 01008459 Lift Shaft Assembly 1 01009712 Front Lift Bracket (42") 2
12 01008494 Handle Lift Arm 2 26 00035632 Jam Nut, 5/8-11 4
13 01008175 Lift Handle Rod 1 27 01008658 Jam Nut, 1/2-20 2
14 01008176 Lift Rod Index 1 28 738-3151 Shoulder Screw, 3/8-16, .56 x .27 4
15 01008467 Upper Link Lift Assembly, Left Hand 1
26
6
25
26
19
28
22
28
17
3
5
10
11
27
3
27
16
28
15
5
28
1
3
22
18
14
5
7
8
12
20
5
5
13
26
19
18
5
12
25
26
6
23
10
5
2
24
24
9
21
1
5
4
3
GD: 01008109-10/22/03
GD: 01009722-11/21/03
