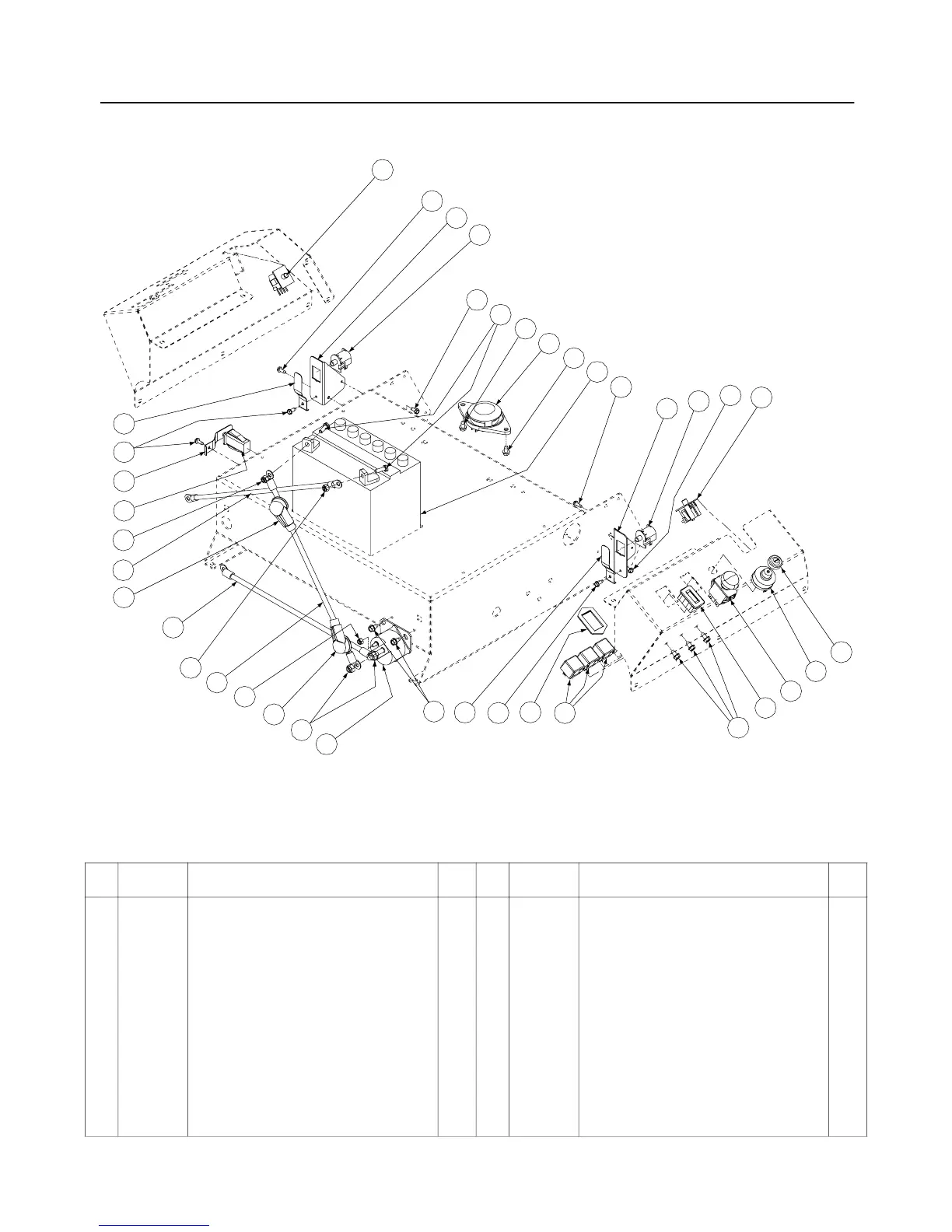

Electrical Assembly
- Figure 15 and Parts List
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 00012032 Battery, 12V 225CCA 30Min 1 15 01003277 Normally Closed Seat Switch 1
2 00012152 Lock Nut, Nylon Insert, 1/4-20 2 16 01003581 Switch, Ignition, 6 Pin 1
3 00012165 Nut, 5/16-18, Nylock 2 17 01008042 Safety Switch Retainer Spring 2
4 00013131 Hex Cap Screw, 1/4-20 x .75 2 18 01008375 Harness Assembly (not shown) 1
5 00013258 Boot, 1" OD Rubber Battery-PST Red 2 19 01008386 Neutral Switch 2
6 00014608 Lock Nut, Nylon Insert, 10-32 1 20 01009905 PTO Switch Bracket 1
7 00024233 Cable, Battery, Black, 17" 1 21 01008531 Self Tapping Screw, 10-32 x 1/2 7
8 00032097 Nut, 5/8-32, w/Cap 1 22 01008571 Switch, Plunger 1
9 00095773 Cable, Battery, Red, 15" 1 23 01008614 Bracket, Safety Switch, Left Hand 1
10 01000628 Self Tapping Screw, 1/4-20 x 1/2 7 24 01008615 Bracket, Safety Switch, Right Hand 1
11 01001717 Normally Closed Safety Switch 2 25 01002252 Cable, Battery, Red, 24" 1
12 01002111 Electric PTO Switch 1 26 01009309 Brake Retainer Spring 1
13 01002228 Solenoid 1 27 01009768 Hour Meter 1
14 01002251 Relay, 12V 40A 3
27
12
16
8
10
17
21
20
5
6
9
2
13
3
22
26
21
17
5
7
2
21
19
11
23
15
10
4
21
1
10
21
21
11
24
19
25
10
14
GD: 01009720-P01
