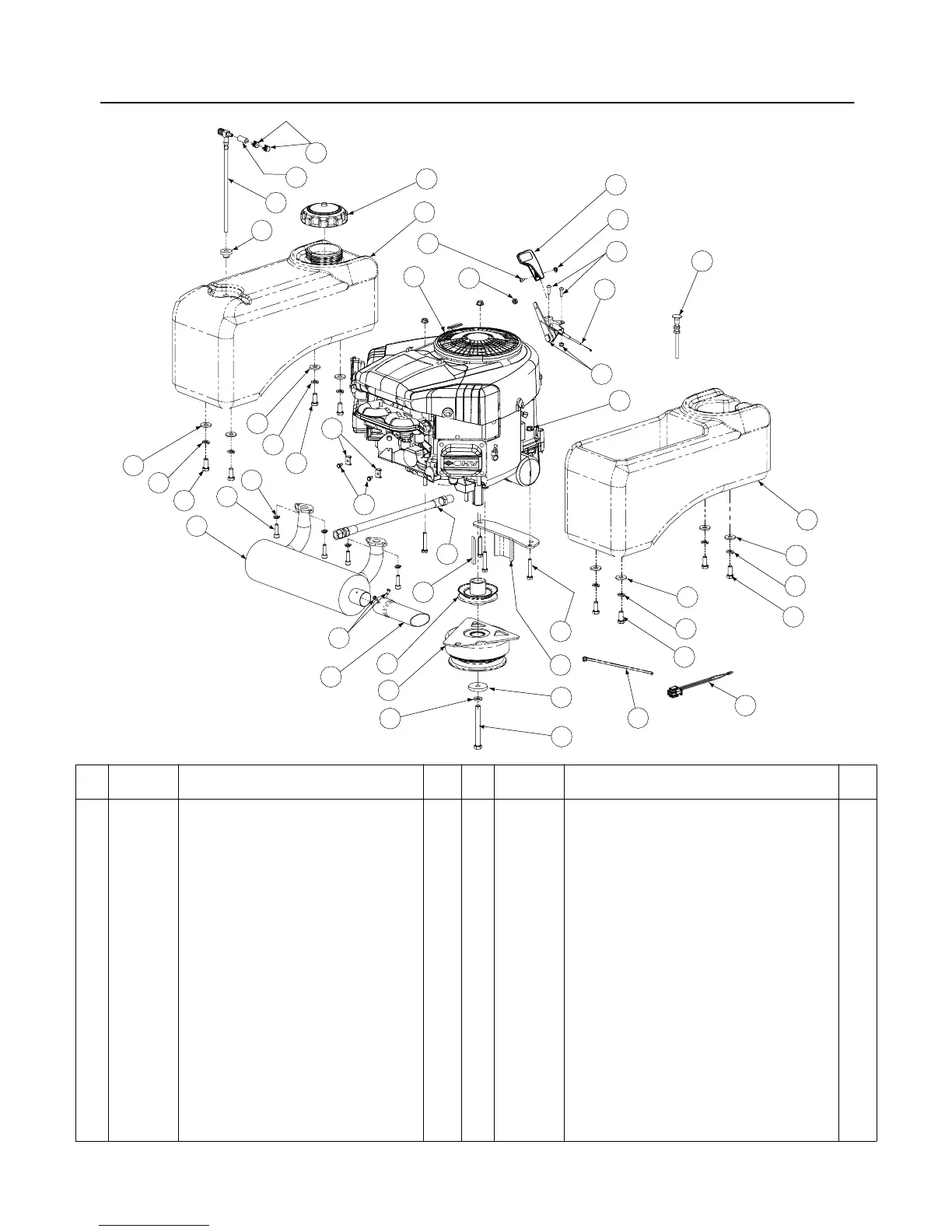

22HP Briggs Engine Assembly
- Figure 14 and Parts List
Ref
No Part No. Description Qty.
Ref
No Part No. Description Qty.
1 00006129 Hex Head Cap Screw, 5/16-18 x 1-3/4 4 21 01008138 Utility Bin 1
2 00012157 Lock Washer, 3/8 Zinc 8 22 01008808 Electric PTO Engine Pulley 1
3 -- Hose, 1/4" Fuel Line 1 23 01009769 22HP Briggs Engine 1
4 00012235 Clamp, Union 2 24 01008902 Briggs Muffler 1
5 01008531 Self Tapping Screw, 10-32 x 1/2 2 25 01008434 Ogura DX11 Electric Clutch 1
6 00014608 Lock Nut, Nylon Insert, 10-32 2 26 01003272 Throttle Control Cable 1
7 00060056 Nut, w/ Star Washer 1 27 01008640 Clutch Retainer Assembly 1
8 01000069 Fuel Cap 1 28 01000811 Screw, 8-32 x .375, Hex Washer 2
9 01000281 Fuel Tank Groment 1 29 01007533 Key, 1/4 x 1/4 x 2.75 1
10 01000368 Hex Cap Screw, 3/8-16 x .88 8 30 01008623 Exhaust Pipe 1
11 01000389 Lock Washer, 7/16 1 31 00012168 Lock Washer, 5/16 4
12 01000635 Lock Nut, Hex Flange, 5/16-18 4 32 01009142 Socket Head Cap Screw, 5/16-18 x 1.00 4
13 01000813 Hex Cap Screw, 7/16-20 x 3.0 1 33 01004020 Choke Cable 1
14 01000721 Machine Screw, 8-32 x .375 1 34 01009826 Harness Adaptor 1
15 01000723 Flat Washer, .406 ID x 1.0 OD x .105 8 35 00023041 Starter Side Lock Nut 1/4-20 1
16 01003116 Fuel Pickup Fitting 1 36 01008531 Screw, #10-32 x 0.500 2
17 01004004 Throttle Control Knob 1 37 01002070 Throttle Cable Clamp 2
18 01004350 Fuel Tank 1 38 01001811 HourMeter Harness 1
19 01005314 Flat Washer, 7/16 ID x 1.75 OD x .250 1 39 00012470 Cable Tie, 3/16 x .05 x 7.4 1
20 01003283 Oil Drain Extension Hose 1
21
15
2
10
15
2
10
1
27
19
22
